CAA43-5SB Brief Introduction:

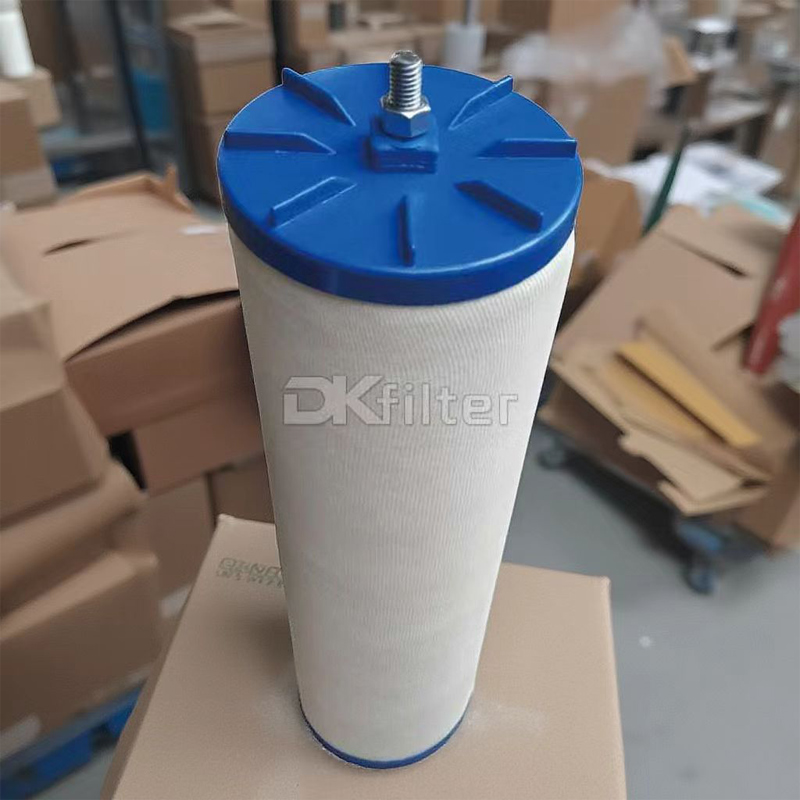

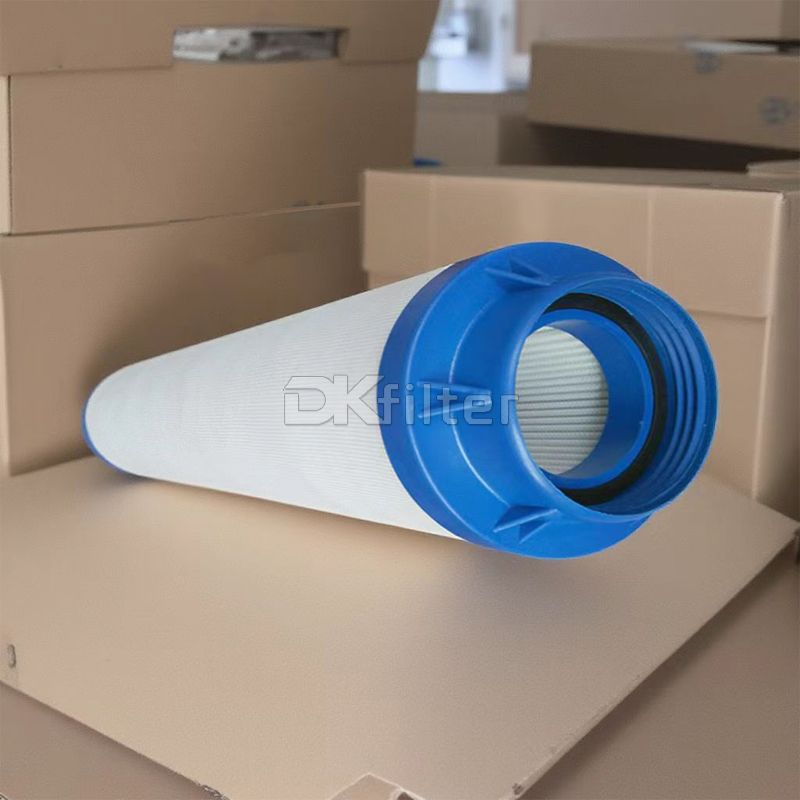

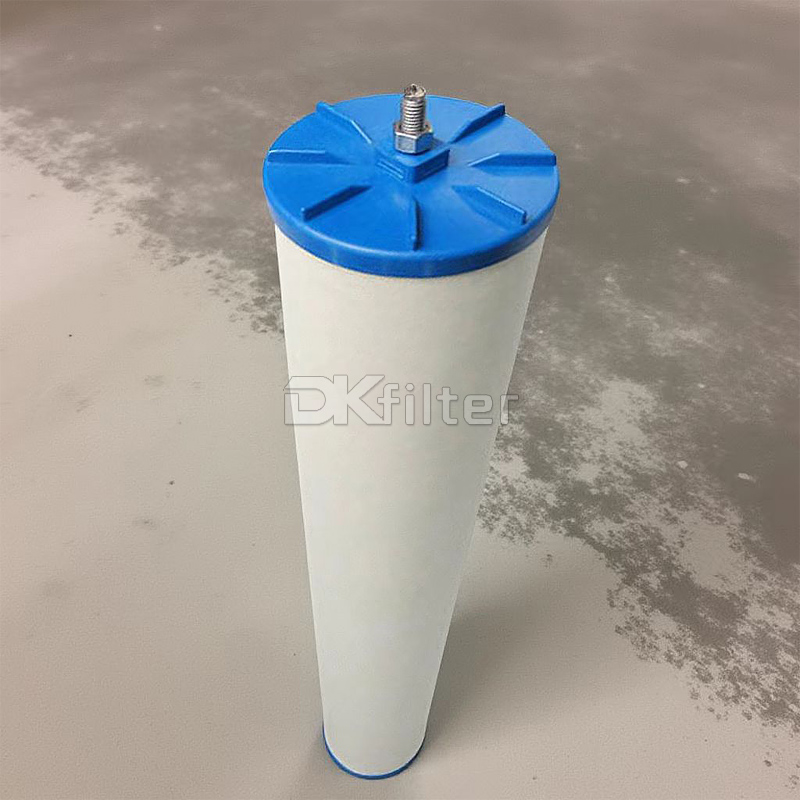

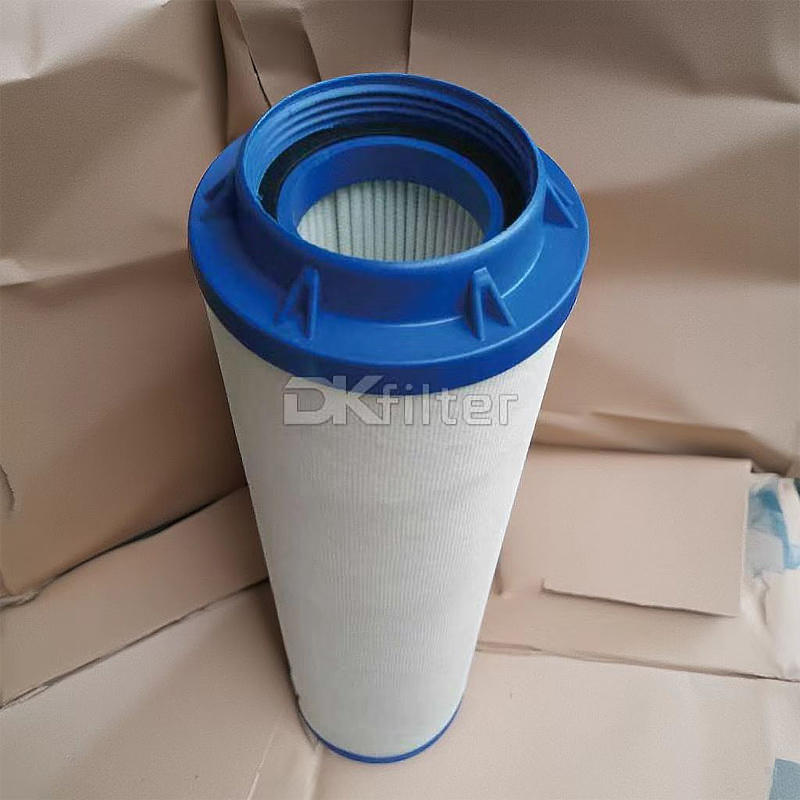

Facet CAA43-5SB high flow coalescing filter cartridges are used to remove ultrafine solids and enhance water separation from jet fuel. The main advantage is balancing fluid flow and structural strength. Manufactured from a single piece of construction using various combinations of media, precisely arranged in multiple layers and pleats, wrapped around a coated perforated metal center tube, the coalescing cartridge is guaranteed for optimal performance.
Facet CAA43-5SB screw base ends are injection molded,glass-filled nylon.This screw base material offers superior strength and ease of maintenance—uniform threads,no shrinkage,no galling and no gasket to recover.
A permanently affixed Buna-N gasket seals against the V-type knife edge mounting adaptor to provide a positive seal.It will not separate from the cartridge during installation or change out.
CAA43-5SB Standard Design Features:
• Tested and qualified
• Multi-layered media for increased solids holding capacity • Ultra-fine solids removal
• Maximum water coalescence
• Balanced cartridge flow characteristics
• Recommended maximum operating temperature: 240°F (115oC)
• Withstands in excess of 75 psi differential pressure
• pH range from 5 to 9 • Screw base or open-end configuration
CAA43-5SB Materials:
• All metal components are treated against corrosion
• Screw base ends are injection molded, glass-filled nylon with locked-in gaskets
• Buna-N gaskets—other materials are available on request
DKFILTER also offers a full range of replacement filter elements:
Parker & Velcon
PECO Facet
Faudi
Pall
Other types are available on request
