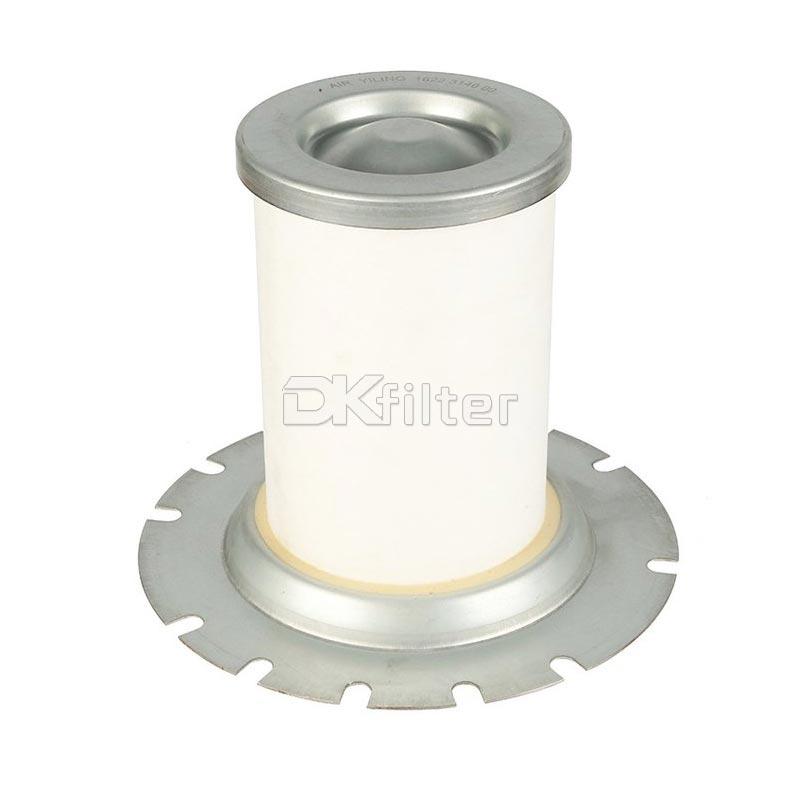

1622314000 Atlas Copco Air Oil Separation Filter Cartridge

The compressed air from the air compressor entrains large and small oil dropletsand the large oil droplets are easily separated by the oil air separator 1622314000 while the small oil droplets (suspended oil particles) must be filtered through the micron glass fiber filter layer of the oil air separator.


General specifications

Quality:

Brand: DKFILTER

Model: 250034-112

Type: Air Oil Compressor Separator

Seal: Viton

Sizes: OD6.61”*L9.84”

Filter material: Fiberglass

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Main Application: Atlas Copco GA30-37-45-55-75 V Series

Series: 1625 7754 00, 1625 4811 00, 2202 9294 50, 1625 7036 00 more

Introduction:

The compressed air from the air compressor entrains large and small oil droplets,and the large oil droplets are easily separated by the oil air separator 1622314000 ,while the small oil droplets (suspended oil particles) must be filtered through the micron glass fiber filter layer of the oil air separator. The air compressor filter elements applications are as below photo:

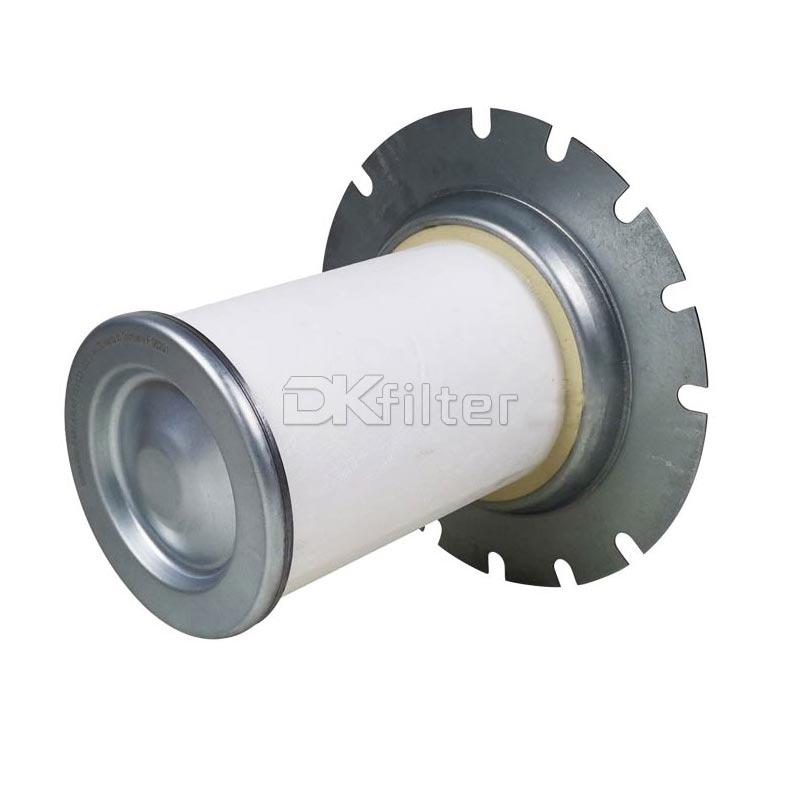

1622314000 Atlas Copco  Air Oil Separation Filter Cartridge



Technical Datas:

 Filtration accuracy:0.1µm

 Filtration efficiency:99.999%

 Initial pressure difference:≦0.02MPa

 The service life can reach about 3500~5200h

 Compressed air oil content can reach below 3ppm

 The filter material is made of American HV and American Lydall company glass fiber


Filter Structure:

We make 1622314000 oil air separator use the most advanced anti-corrosion and high-efficiency microfiber condensed material as the main body of the filter.The filter bed of the system filter element is composed of a prefilter layer,a microfiber layer,a support layer,a filter layer and a gravity sedimentation layer,so that the compressor outputs air. The solid particles above 3μm in the medium can be completely filtered out,and the extremely small oil-water gas solution of about 0.01-1μm is condensed into larger oil droplets when passing through the filter element, and accumulates at the bottom of the filter element,and then passes through the bottom of the filter element. The oil return line siphons back into the lubrication system allowing the compressor to discharge cleaner, oil free compressed air.

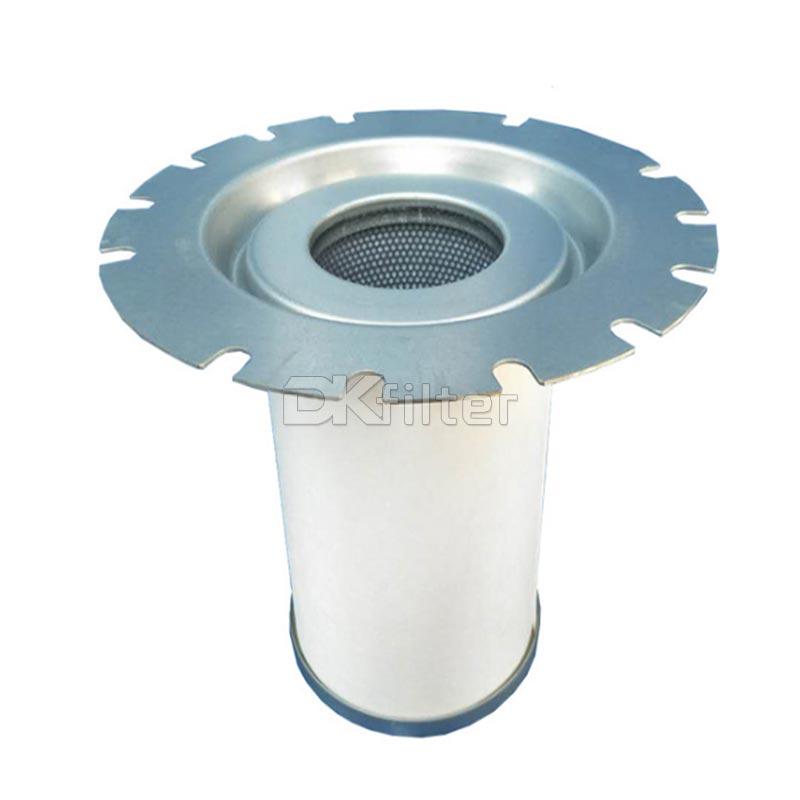

1622314000 Atlas Copco  Air Oil Separation Filter Cartridge


Test Standards:

Before delivery, Our manufactured 1622314000 oil air separator element will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Customized Processing:

We corporation are excellent oil air separator filter cartridge manufacturer

ATLAS COPCO Filters

INGERSOLL RAND Filters

SULLAIR Filters

COMPAIR Filters

FUSHENG Filters

LIU-TECH Filters

MANN Filters

Hitachi Filters

Kaeser Filters

Other types are available on request


Related Specification Filters

1622 0623 01 1613 0623 00 1622 0871 00 1622 0351 01 1614 5673 00 1613 9014 00
1612 3869 00 1613 6921 00 1613 7502 00 1613 7502 01 1622 0079 00 1622 0516 00
1613 2433 00 1613 6880 00 1613 8397 00 1613 8397 02 1613 8397 02 1622 6460 00
1622 3140 00 1092 0816 00 1622 5693 00 1613 7306 00 1613 8007 00 1613 9559 00
1613 9840 00 1613 9840 01 1622 3656 00 1614 9054 00 1621 9384 00 1621 9077 00
1613 6423 00 1614 9056 00 1621 9385 00 1614 9521 00 1621 9386 00 1614 7048 00
1604 0382 01 1604 1328 80 1604 2593 80 2252 6313 00 1616 4565 00 1621 8651 00
If you have no standard filter code numbersplease send us your filters specifications or sampleswe can customize as your requests.
