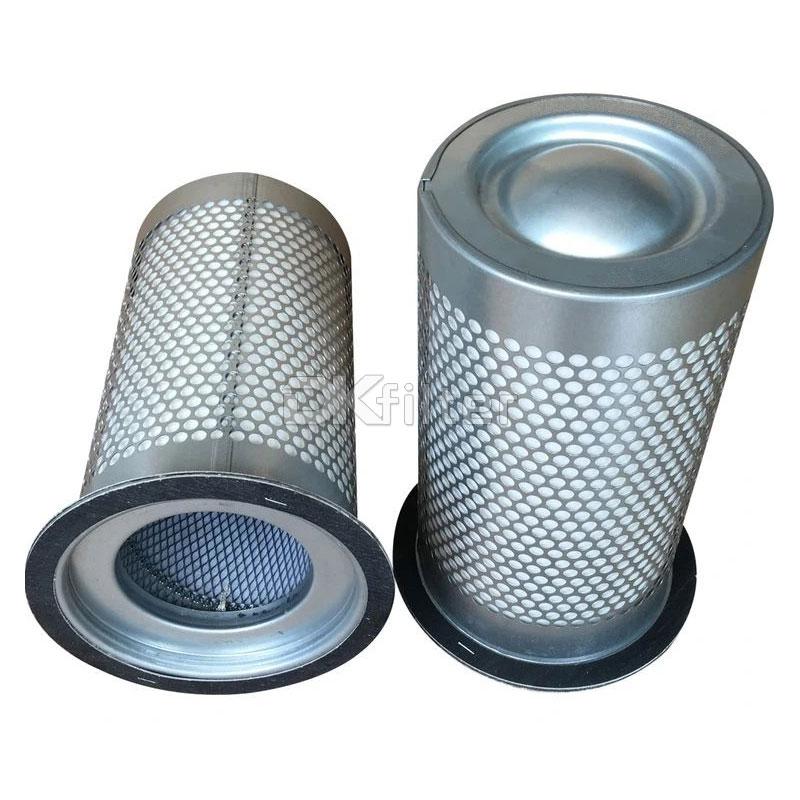

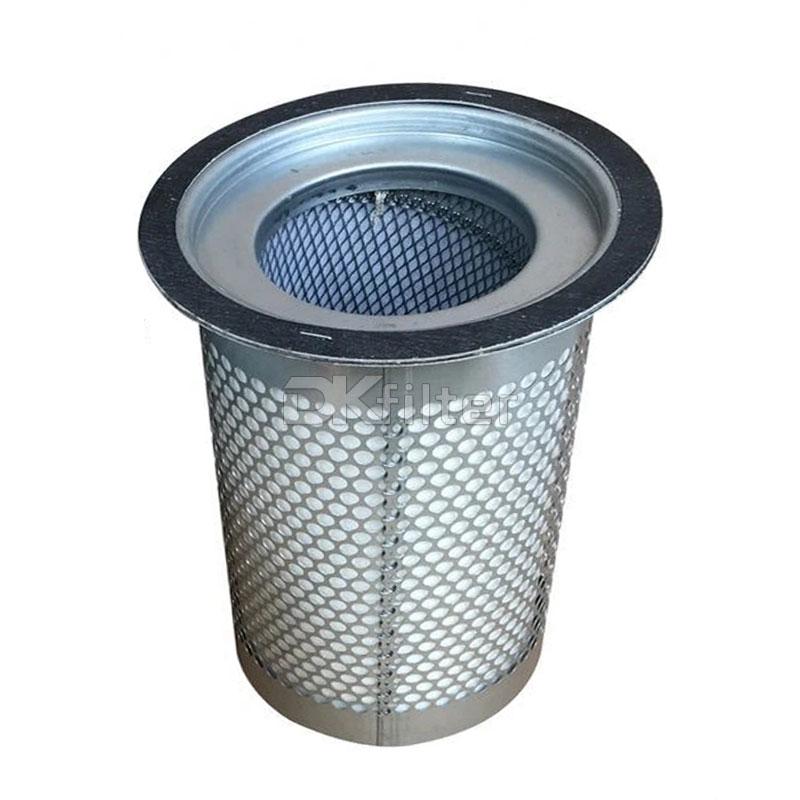

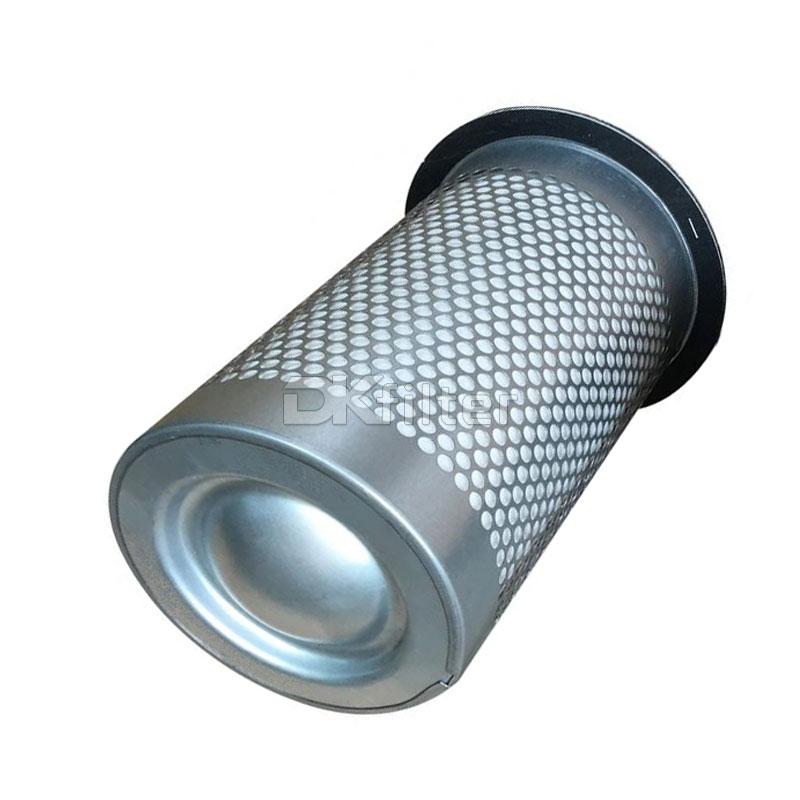

2116010108 Fusheng Oil Separator Screw Air Compressor Replace

2116010108 Fusheng oil separator air compressor is used in air compressors to filter, intercept and remove water, oil vapor and other pollutants and impurities in compressed air pipelines. Separates oil and air to produce high-quality clean, contaminant-free compressed air.


General specifications

Quality:

Brand:DKFilter

Model: 1621938599

Type: Oil Separator Air Compressor

Size: Standard

Precision: 5μm

Filration Rate: 10Micron

Filter material: Fiberglass、HV Filter Paper

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Filtration method: Pressure Filtration

Series: 2116010012, 2116010020, 2116010022, 2116010026 more

Introduction:

2116010108 Fusheng oil separator is used in air compressors to filter, intercept and remove water, oil vapor and other pollutants and impurities in compressed air pipelines. Separates oil and air to produce high-quality clean, contaminant-free compressed air. The 2116010108 manufacturing material is made of anti-corrosion and high-efficiency condensation ultra-fine glass fiber material, which has a long service life and ensures filtration effect. It is an efficient and important mechanical core component of the air compressor filter element coalescing filter.

2116010108 Fusheng Oil Separator Screw Air Compressor Replace



Technical Datas:

• Filtration precision: 5μm

• Filtration efficiency: 99.999%

• Initial pressure difference: ≤0.02MPa

• Maximum working temperature: 120ºC

• The service life can reach about 3500h-5000h

• The oil content of compressed air can reach less than 3ppm


2116010108 Structure :

We make 2116010108 air oil separator filter use high-strength steel, galvanized anti-corrosion treatment, fine seam welding, spot welding technology and two-component glue. It has an excellent rigid structure that can maintain its shape under pressure and maintain a uniform pressure difference to ensure Avoid filter element collapse, prevent air/oil separator collapse and shut down the compressor.

The 2116010108 air oil separator filter element filter bed is composed of a pre-filter layer, an ultra-fine microfiber layer, a support layer and a filter layer.

....2116010108 Fusheng Oil Separator Screw Air Compressor Replace



Service Guarantee

• Welcome to visit the factory, professional translators and technicians will show you the production process.

• This separator filter element provides the same or better filtration performance than original OEM filter specifications.

• Provide customized design services to provide equivalent or improved performance according to strict specifications.

• With advanced production technology and good after-sales service, we are committed to becoming a trustworthy global oil separator manufacturer and supplier.

Related Specification Filters

2116010102 2116010103 2116010104 2116010105 2116010107 2116010108 2116010012
2116010020 2116010022 2116010026 2116010028 2116010030 2116010033 2116010035
2116010037 2116010039 211601004 2116010042 2116010044 2116010045 2116010046
2116010048 2116010052 2116010057 2116010058 2116010093 2116010097 2116010094
2116010098 2116040027 2116040026 2116040028 2116040014 2116040012 2116040081
2116040080 2116049996 2605271110 2605271160 2605272320 2605272330 2605272370
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
