Introduction:
1625-7036-00 Atlas Copco air oil separator filter cartridge is used to filter and intercept large amounts of oil mist and impurities. The manufacturing material uses high-efficiency glass fiber. As an air compressor filter element, it is an important part of the screw compressor.
Performance Parameters：
Our manufactured 1625-7036-00 air oil separator for rotary screw and vane air compressors provide ultimate filtration with 0.3 micron rating.All particles larger than 0.3 microns that pass through the air and oil filters will be trapped by the separator.The separator is composed of deep loading medium and has good fouling capacity.
| Item | Value |
|---|
| Filtration accuracy..... | 10 μm |
| Filration Rate.... | 10 Micron |
| Sizes | OD5.28"*L7.24" |
| Seal | Viton |
| Thread | 1" x 12 UNF |
| Filter Material..... | Fiberglass |
| Gasket | Buna O-Ring |
| Filter material.... | Fiberglass、HV Filter Paper..... |
| Center Tube | Corrosion Resistant Steel.... |
Filter Structrue:
The basic purpose of 1625-7036-00 Atlas Copco air compressor filter is to separate oil from air through coalescence. The oil is physically trapped by the separator while allowing air to pass through. The oil is then drained to the oil pan, removed through the collection line and returned to the oil pan, and returned to the oil pan for continuous cycle recompression.
Filtration Curve:
1625-7036-00 Atlas Copco air oil separator for screw and vane air compressors providing ultimate filtration at 0.3 micron level. All particles larger than 0.3 microns that pass through the air and oil filters are captured by the separator. The separator is composed of deep load media and has good anti-fouling ability.
We make 1625-7036-00 air oil separator filter is Beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter.
Test Standards:
Before delivery, Our manufactured 1625-7036-00 air oil separator cartridge will be tested and follow the standards:
ISO 2941 Collapse & Burst Resistant
ISO 2942 Fabrication & Integrity Test
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing
Customized Processing:
We corporation are excellent separator cartridge filter manufacturer
ATLAS COPCO Filters
INGERSOLL RAND Filters
SULLAIR Filters
COMPAIR Filters
FUSHENG Filters
LIU-TECH Filters
Other types are available on request

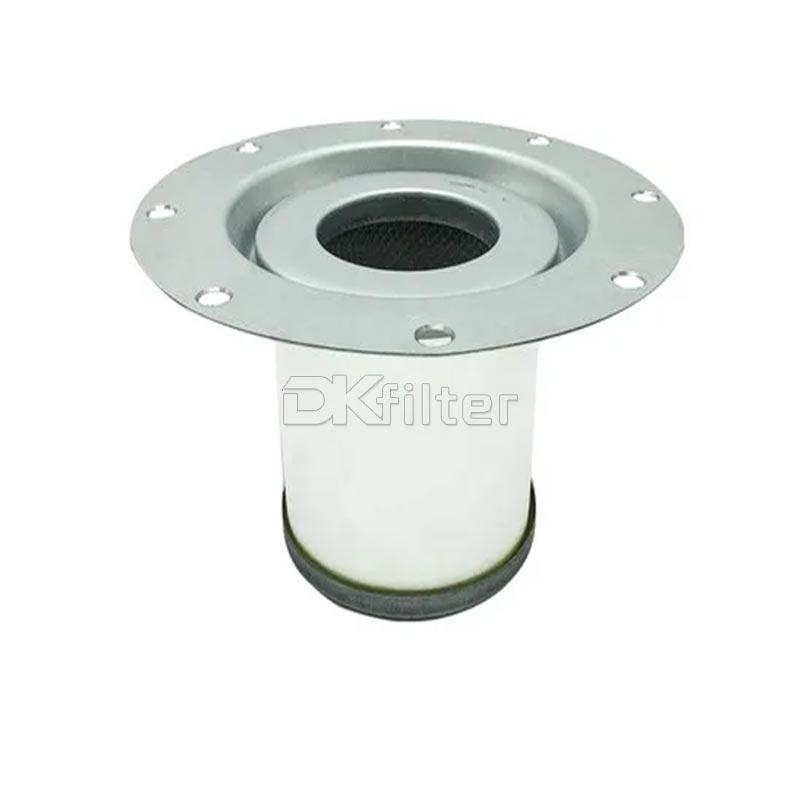

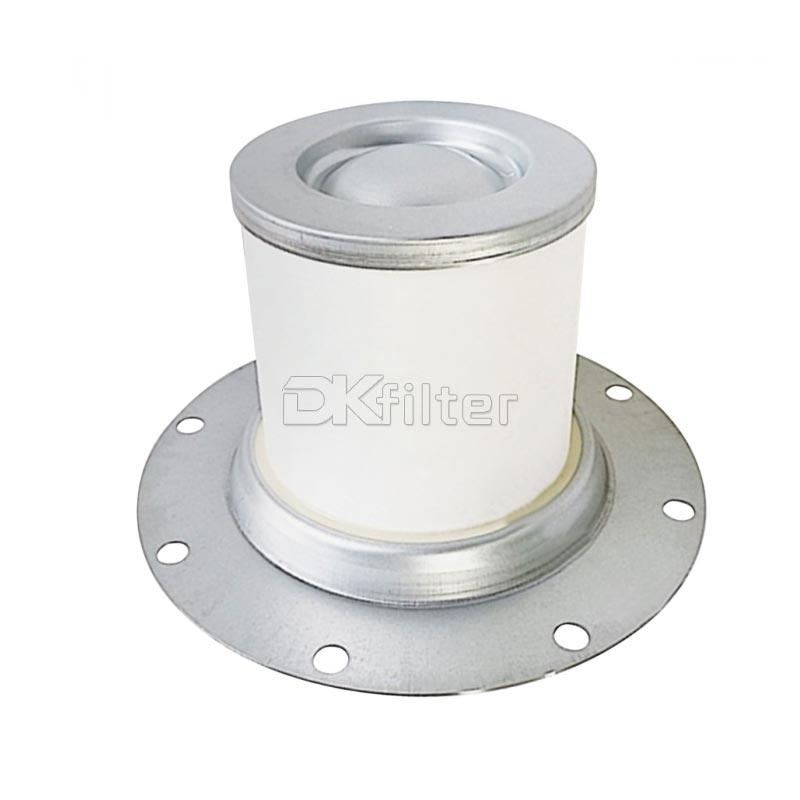

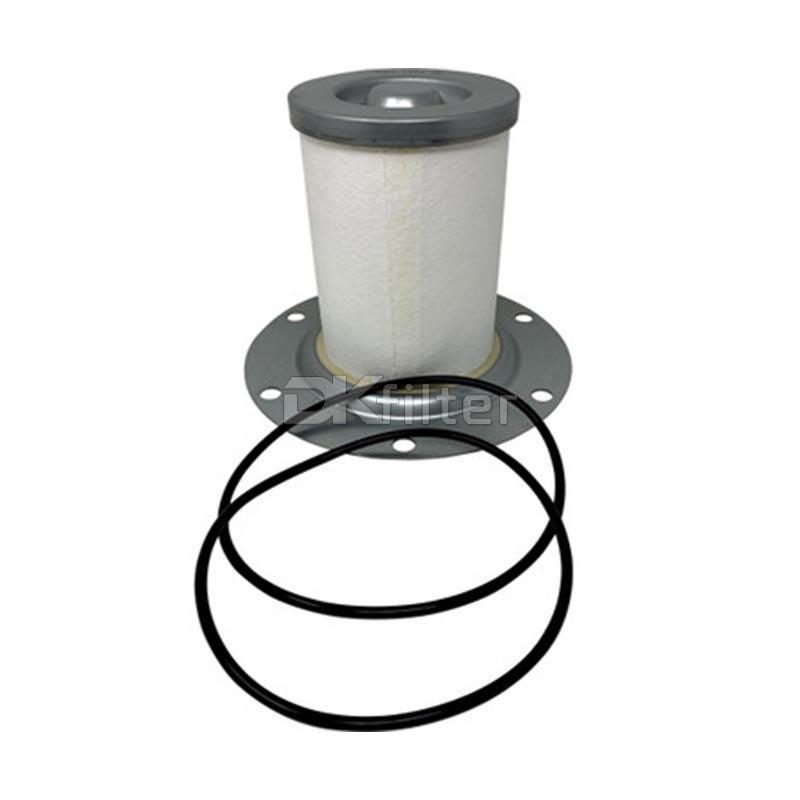

1625-7036-00 Atlas Copco Air Oil Separator Filter Cartridge
