305x610x50mm HEPA/ULPA Plate Air Filter Without Interlayers

DKFILER makes the HEPA/ULPA HVAC plate air filter without interlayersit is made of fine glass fiber paper and hot-melt adhesiveused for air purification under normal temperaturepressure and humidity conditions.The special structure of the filter material makes the porosity of the filter bed quickly form up and down.The small gradient density makes the filter fast in filtering speedlarge in interception capacity and easy to backwash.


General specifications

Quality:

Brand: DKFILTER

Sizes: 305x610x50mm

Flow Rate: 350m³/h

Maximum Temperature: 80°C(180°F)

Filter Material: Fiberglass

Filtration Efficiency: H13 H14U15U16(EN1822)

Construction Frame: Corrosion Resistant Steel

Series: 610x610x50mm, 305x610x69mm, 610x610x69mm, 350x350x80mm more

Description:

DKFILER makes the HEPA/ULPA HVAC plate air filter without interlayers, HEPA/ULPA air filter is made of fine glass fiber paper and hot-melt adhesive,used for air purification under normal temperature,pressure and humidity conditions.The special structure of the filter material makes the porosity of the filter bed quickly form up and down.The small gradient density makes the filter fast in filtering speed,large in interception capacity and easy to backwash.


Features:

• No interlayers design to reduce operating costs

• Wide range of applications, compact structure, saving storage space

• Ultra-thin design saves installation space


Material:

• Frame: Anodized aluminum profile

• Frame optional thickness: 50mm/70mm/90mm/110mm

• Filter material: ultrafine glass fiber

• Divider: hot melt adhesive

• Sealant: Polyurethane

• Protective net: painted steel net


Efficiency:

• 99.99%@0.3 um(H13)

• 99.999%@0.3um(H1 4)

• 99.9995%@0.12um(U15)

• 99.99995%@0.12um(U16)(EN1822)


Filter Material:

We make HEPA/ULPA plate air filter cartridge use a single unit structure to reduce the number of gaskets and improve overall reliability. HEPA/ULPA air cartridge filter have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use.

• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.

• All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.

• The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.

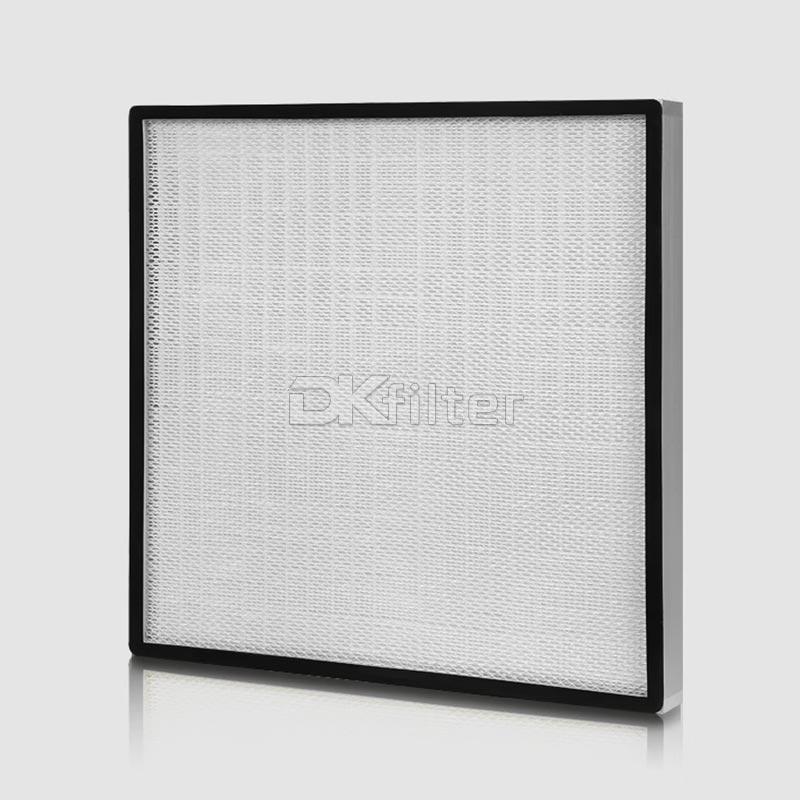

305x610x50mm HEPA/ULPA Plate Air Filter Without Interlayers


Application:

• Pre-filtration of air-conditioning and ventilation systems to avoid dust accumulation inside the system from polluting large-scale air compressors.

• Clean room centralized ventilation and air-conditioning system and return air filtration, prolonging the service life of the post-stage high-efficiency filter The ventilation system of ordinary industrial plants meets the general cleanliness requirements for air.

• Coarse dust filtration system for air conditioners in general buildings.


305x610x50mm HEPA/ULPA Plate Air Filter Without Interlayers305x610x50mm HEPA/ULPA Plate Air Filter Without Interlayers


Related Specification Filters

Sizes Clogging Capacity Air Flow Rate Initial Pressure Drop Sizes Clogging Capacity Air Flow Rate Initial Pressure Drop
WxHxD(mm) (G) (m³/h) (Pa) WxHxD(mm) (G) (m³/h) (Pa)
305*610*50 220 350 ≤220 484*484*80 450 800 ≤220
610*610*50 450 700 550*550*80 600 1000
305*610*69 300 500 610*610*80 750 1350
610*610*69 600 1000 630*630*80 800 1500
915*610*69 900 1500 915*610*80 1100 2000
1170*570*69 1100 1800 1220*610*80 1500 2700
1220*610*69 1200 2000 484*484*90 550 900
350*350*80 250 450 610*610*90 850 1450
400*400*80 300 500 1220*610*90 1700 2900
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
