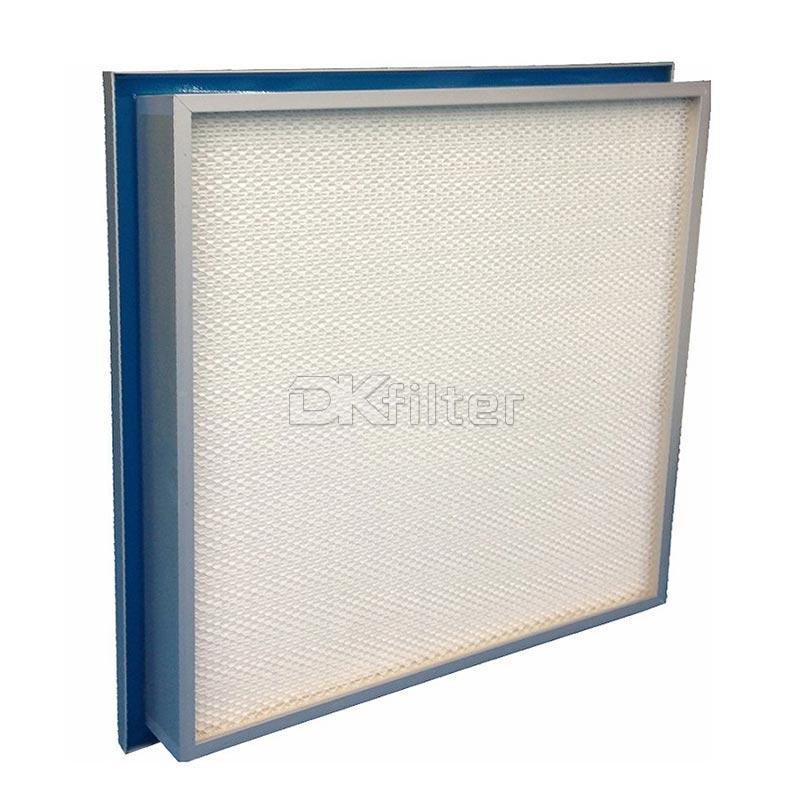

Liquid Tank Gel Seal HEPA HVAC Air Filter For Clean Room

DKFILTER makes the ultra-high efficiency HEPA HVAC air filter without inter-layers with liquid tank gel seal technologywhich is a superior method to the currently commonly used mechanical compression device seal in China.The liquid tank gel seal filter is easy to install and the seal is very reliable.It is a high-efficiency filter sealing method commonly used in the world.


General specifications

Quality:

Brand: DKFILTER

Sizes: 305x610x80mm

Flow Rate: 200m³/h

Filter Area: 9.5㎡

Filter Material: Glass fiber

Filtration Efficiency: H14

Maximum Temperature: 80°C(180°F)

Construction Frame: Corrosion Resistant Steel

Series: 305x305x93mm, 1220x610x104mm, 305x305x104mm more

Description:

DKFILTER makes the ultra-high efficiency HEPA HVAC air filter without inter-layers with liquid tank gel seal technology,which is a superior method to the currently commonly used mechanical compression device seal in China.The liquid tank gel seal filter is easy to install and the seal is very reliable.It is a high-efficiency filter sealing method commonly used in the world.


Features:

• Filtration efficiency grades H14~U17 are available

• It can be equipped with double-sided protective net to protect the filter material and has good strength

• Thin, compact

• Special ultra-fine glass fiber filter paper is used as the filter material, with high efficiency and low resistance

• The tank is filled with imported blue jelly glue


Resistance & air volume:

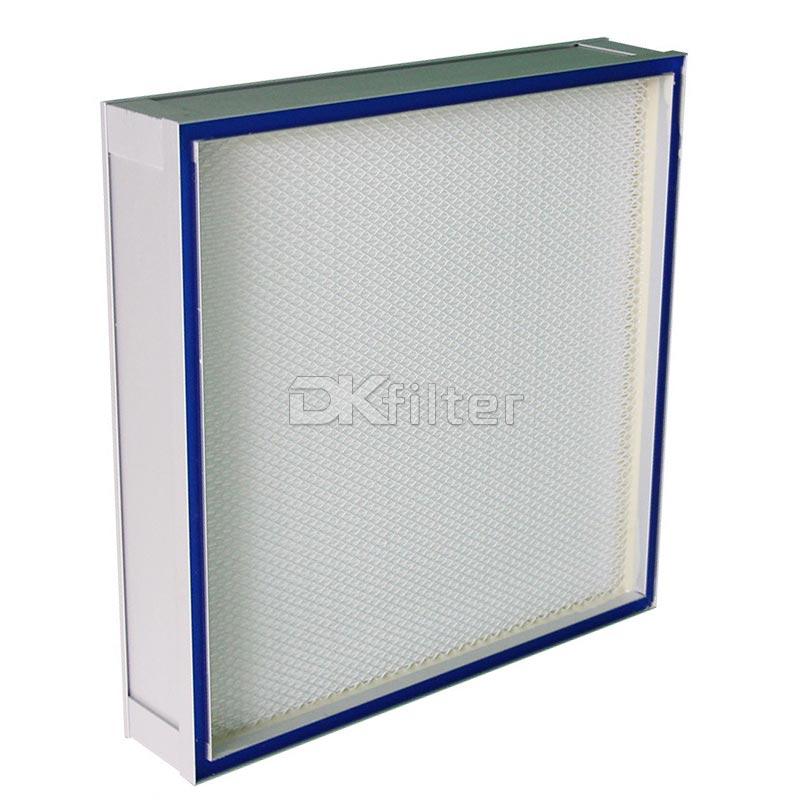

Liquid Tank Gel Seal HEPA HVAC Air Filter For Clean Room

Material:

• Frame: Anodized aluminum profile

• Filter material:Ultrafine glass fiber

• Divider:Hot melt adhesive

• Sealant: Jelly glue

• Protective net:Painted steel net

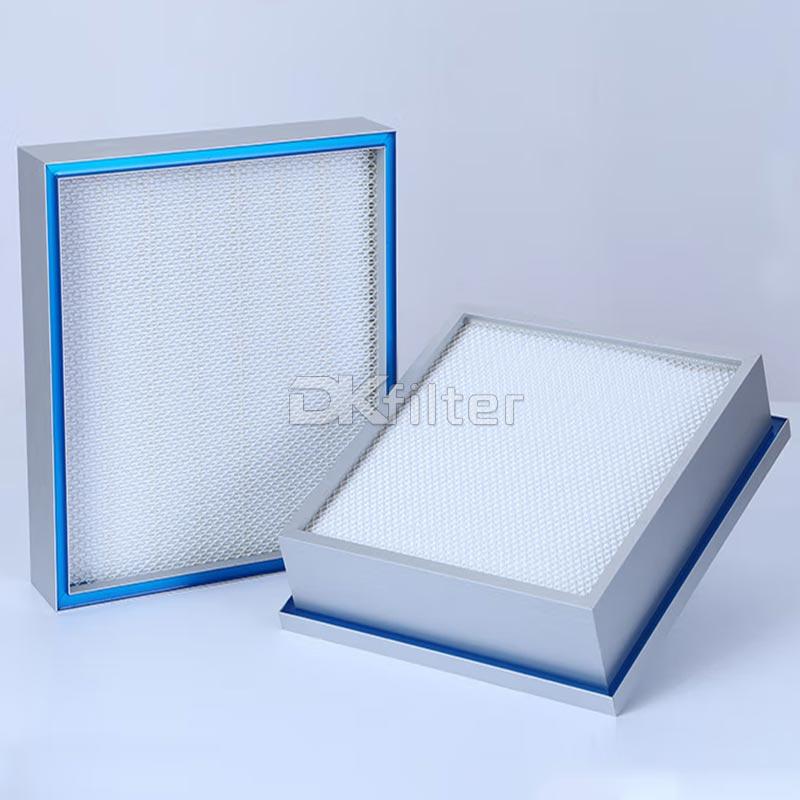

Liquid Tank Gel Seal HEPA HVAC Air Filter For Clean Room

Efficiency:

H14(99.97%)@0.5μm


Applicable conditions:

Maximum temperature: 80℃

Maximum humidity:80%


Applications:

It is used for terminal air supply requiring ultra-high cleanliness,such as electronics,pharmaceutical industry,clean room, high-efficiency air supply outlet,laminar flow equipment,etc.


Related Specification Filters

Sizes Filtration Area Air Flow Rate Initial Pressure Drop
WxHxD(mm) (㎡) (m³/h) (Pa)
610*610*80 9.5 800 ≤220
305*305*93 2.7 250
610*610*93 13 1000
1220*610*93 27 2000
305*305*104 3.4 320 ≤250
610*610*104 13.9 1280
1220*610*104 28 2560
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
