Introduction:

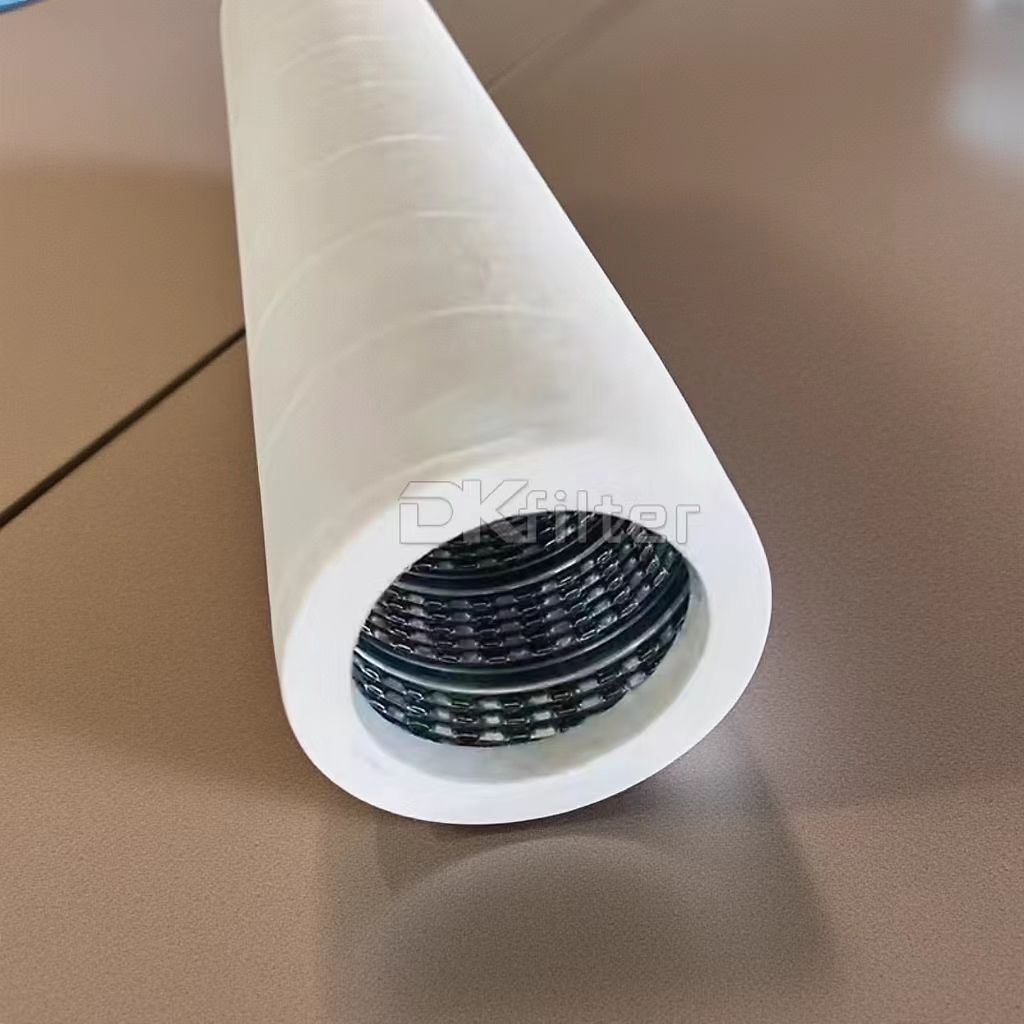

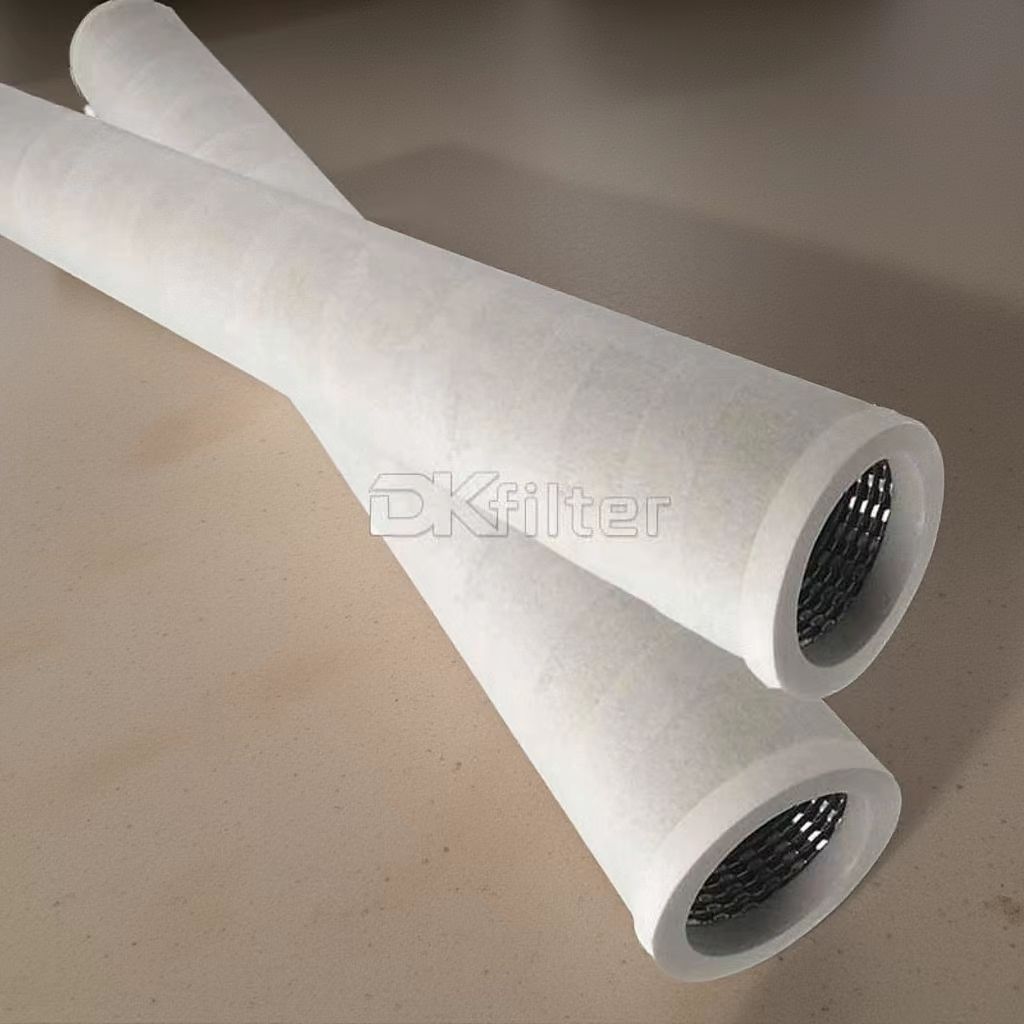

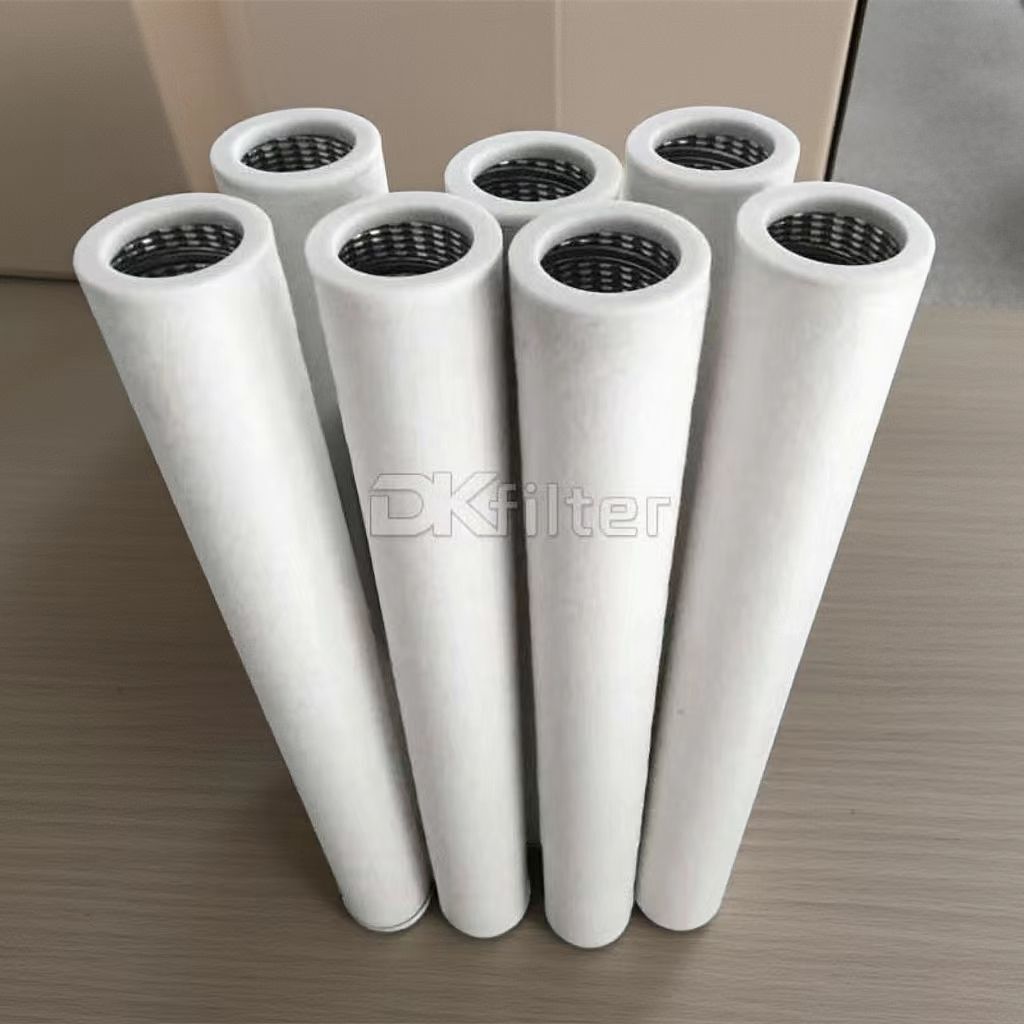

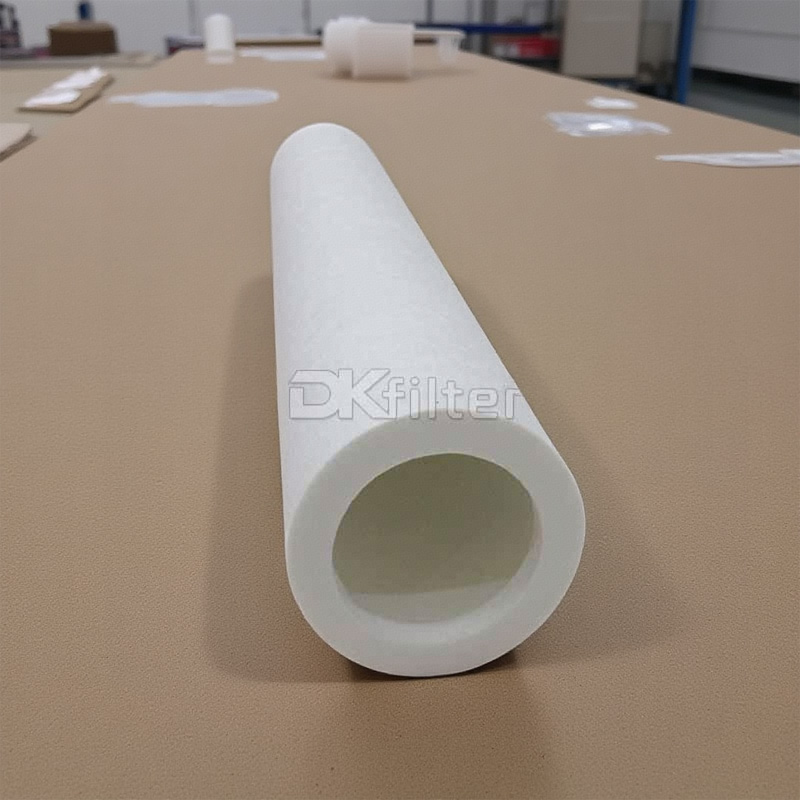

KPCHG-72-EXT facet oil gas separator filter cartridge is used to remove particulate contaminants and free water from oil, fuel or other fluids. KPCHG-72-EXT fuel gas separator filter element is used as the second stage in the filter separator container to ensure the required cleanliness standards of the fluid. We make KPCHG-72-EXT kpchg series oil separator use high-quality Teflon, it is a cleanable, reusable, and highest quality separation filter element available in a variety of size configurations. The coated filter is wrapped in a treated perforated metal shell that is stitched folded and secured with metal clips. The screen is coated with Teflon for more effective water resistance, ensuring long-term trouble-free use.
Performance Parameters:
Item | Value |
---|
Length | 72.0 inches |
Outside Diameter | 3.3 inches |
Inside Diameter | 2.3 inches |
Changeout Pressure Differential | 15 psid |
pH range | 4 - 9 |
Max Temperature | 200°F |
Seal | Buna-N |
Filter Material | Polyester, Pleated Paper |
Center Tube | Corrosion Resistant Steel |
Structure Materials:
• Stainless steel metal support
• Polymeric outer drainage layer to prevent liquid reentrainment
• Resin bonded glass fiber coalescer media designed in a pack to handle large quantities of liquid
• Oleophobic/hydrophobic treatment to improve liquid drainage,protect from liquid slugs and minimize saturated pressure drop
Performance Features:
• Field proven performance
• Used as a primary element in filters/separators
• One-piece design is easy to install and replace
• A threaded base or open end cartridge is optional
• Remove particles and condense water into large drops
Filter Material:
We make KPCHG-72-EXT aviation fuel separator filter cartridge use all glassfiber media aggregator combines deep particle filtration with deep coalescence structure.
• Use pleated ripples and separate materials to keep the pleats open for full use.
• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.
• Have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area.
Application:
KPCHG-72-EXT fuel gas separator filter element is mainly used for coalescing emulsified water and removing particles from hydrocarbon fluids. The biggest single application is filtration of aviation jet fuel. They are also used in other types of fuels, process flows in refineries and petrochemical plants, and condensate streams to produce natural gas.
Other liquids can be separated if they are immiscible,have different specific gravity,and do not present a high concentration of surface active.As a rule of thumb,if the mixture samples are easily separated within an hour or two,a coalescing device may be used.If the mixture does not separate after 24 hours, coalescence may not work.
Work principle:
KPCHG-72-EXT high-efficiency separator merge small droplets of liquid into larger ones as the fluid stream passes through several layers of filter media,each with progressively larger pores.As droplets compete for the open pores,they coalesce forming larger droplets.These larger droplets are easier to separate from the continuous phase fluid.
The KPCHG-72-EXT separator size and type are determined by numerous factors:physical properties of the fluid,flow rate,process conditions and chemical compatibility with process fluids and additives.
Test Standards:
Before delivery, Our manufactured KPCHG-72-EXT separator filter cartridge will be tested and follow the standards:
ISO 2941 Collapse & Burst Resistant
ISO 2942 Fabrication & Integrity Test
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing
Customized Processing:
We corporation are excellent separators cartridge filter manufacturer
Parker & Velcon
PECO & Facet
Faudi
Pall
Other types are available on request
