FOS-512PL25 Velcon FOS Series Synthetic Media Filter Cartridges

FOS-512PL25 oil liquid coalescer filter cartridge is used to remove particulate contamination and free water from oil, fuel or other fluids and improves the required cleanliness standards of the fluids. FOS-512PL25 coalescer filter can also be used for recycling and reusing waste liquids to avoid possible scaling and corrosion of downstream equipment.


General specifications

Quality:

Brand: DKFILTER

Model: FOS-512PL25

Filter type: FOS Series Filter Cartridge

Length: 12.0 inches

Outside Diameter: 5.0 inches

Filter material: Fiberglass, Pleated Paper

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Series: FOS-618PL1/2, FOS-636PLO5, FOS-512PL25, FOS-718PL25, FOS-618PLO5 more

Introduction

FOS-512PL25 velcon oil liquid coalescer filter cartridge is used to remove particulate contaminants and free water from oil, fuel or other fluids. FOS-512PL25 fos series coalescer filter element is used as the second stage in the filter separator container to ensure the required cleanliness standards of the fluid. It can also be used to recycle and reuse waste fluids to avoid possible scaling and corrosion of downstream equipment.


Structure Parameters:

ItemValue
Length12.0 inches
Outside Diameter.....5.0 inches
Max. Temp225 Degrees
Change-out pressure25 psid
Max. Operating Collapse75 psid
Filter MaterialPleated layers Paper
SealBuna-N
End CapsCorrosion Resistant Steel
Center TubeCorrosion Resistant Steel


Related FOS Series

FOS-636PL1/2, FOS-718PL25, FOS-614PLO5, FOS-618PLO5, FOS-618PLP8, FOS-618PL1/2, FOS-636PLO5

FOS-636PLO5, FOS-636PLP8, FOS-636PL1/2, FOS-718PL25, FOS-614PL05, FOS-618PL05, FOS-618PLP8

FOS-636PLP8, FOS-636PL1/2, FOS-718PL25, FOS-614PLO5, FOS-618PLO5, FOS-618PLP8, FOS-618PL1/2

FOS-512PL25, FOS-718PL25, FOS-618PLO5, FOS-618PLP8, FOS-618PL1/2, FOS-636PLO5, FOS-636PLP8

FOS-618PL1/2, FOS-636PLO5, FOS-636PLP8, FOS-636PL1/2, FOS-512PL25, FOS-718PL25, FOS-618PLO5


Structural Diagram:

FOS-512PL25 velcon hydraulic coalescer oil filter cartridge function is to improve the cleanliness of oil products, ensure the quality requirements of oil products, and ensure the long-term, efficient and safe operation of industrial equipment.

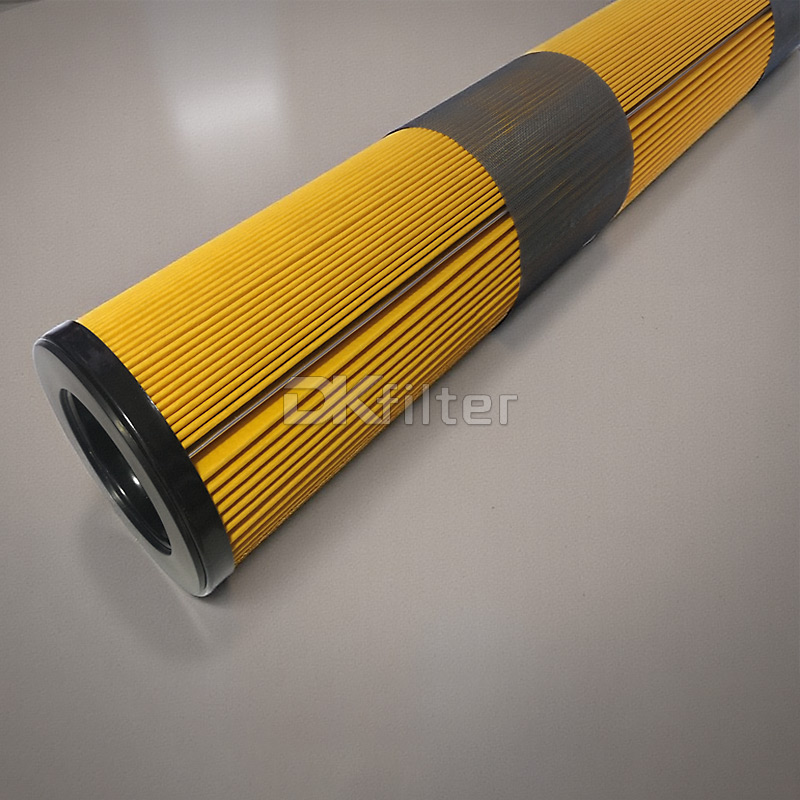

FOS-512PL25 Velcon FOS Series Synthetic Media Filter Cartridges


Filter Material:

We make FOS-512PL25 coalescer filters use a single unit structure to reduce the number of gaskets and improve overall reliability. FOS-512PL25 coalescer cartridge filter have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use.

• All metal parts are treated for corrosion protection.

• Composite fiber and pleated paper media high surface area pleated core.

• Buna-N gaskets - other materials available upon request.

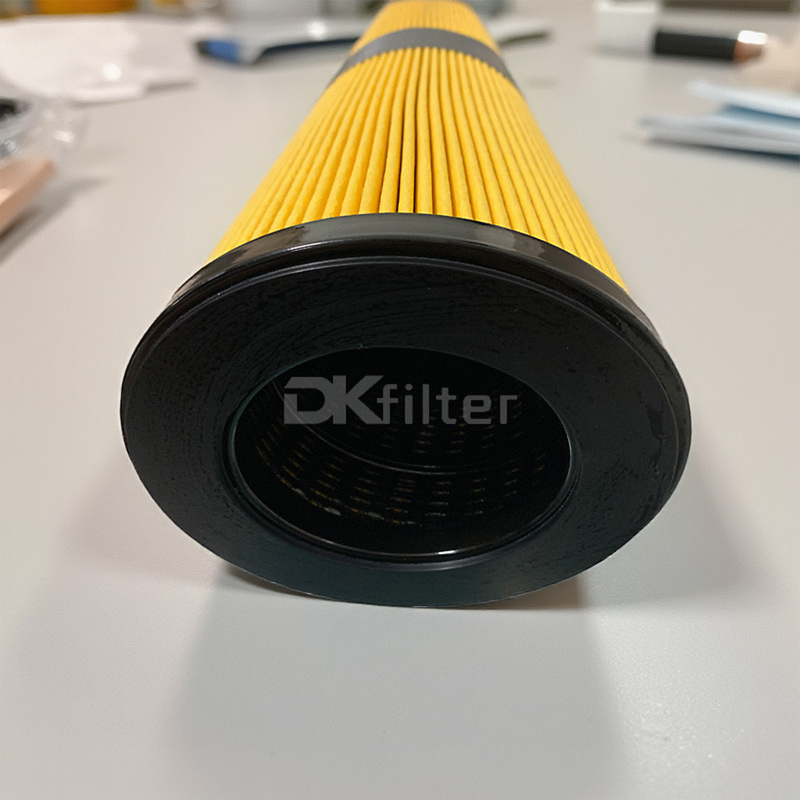

FOS-512PL25 Velcon FOS Series Synthetic Media Filter Cartridges


Material Properties:

This FOS-512PL25 oil coalescer filter cartridge media is made from high quality hydrophobic pleated cellulose material. The outer media layer filters out silt, rust and other particulate contaminants, while the inner layer absorbs water and chemicals. FOS-512PL25 oil fuel coalescer filter elements are widely used in various industrial industries such as power generation, oil and gas, petrochemicals, aerospace, etc.

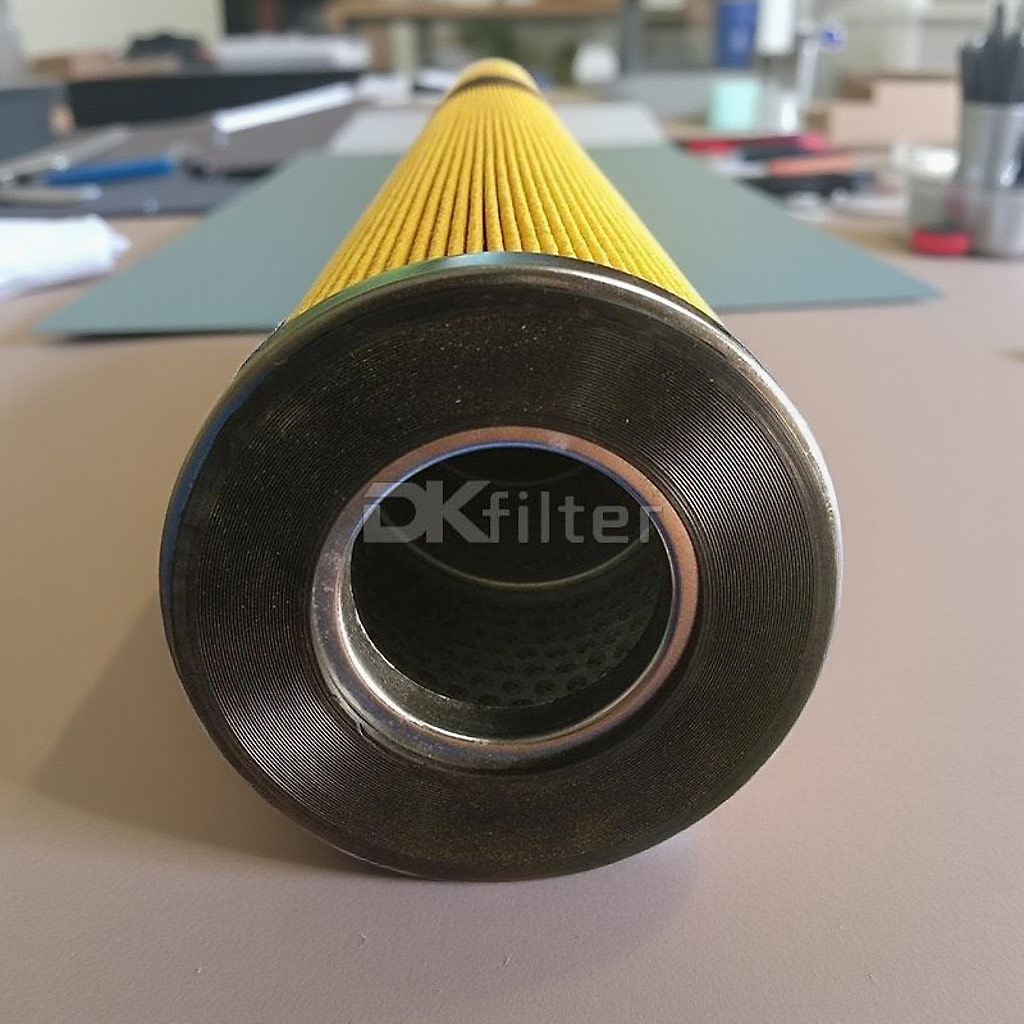

FOS-512PL25 Velcon FOS Series Synthetic Media Filter Cartridges



Test Standards:

Before delivery, Our manufactured FOS-512PL25 oil filter cartridge will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Customized Processing:

We corporation are excellent coalescer cartridge filter manufacturer

Parker & Velcon

PECO & Facet

Faudi

Pall

Other types are available on request.


Related Specification Filters

Other Velcon FOS Series model numbers:

FOS-636PL1/2 FOS-718PL25 FOS-614PLO5 FOS-618PLO5 FOS-618PLP8 FOS-618PL1/2 FOS-636PLO5
FOS-636PLO5 FOS-636PLP8 FOS-636PL1/2 FOS-718PL25 FOS-614PL05 FOS-618PL05 FOS-618PLP8
FOS-636PLP8 FOS-636PL1/2 FOS-718PL25 FOS-614PLO5 FOS-618PLO5 FOS-618PLP8 FOS-618PL1/2
FOS-512PL25 FOS-718PL25 FOS-618PLO5 FOS-618PLP8 FOS-618PL1/2 FOS-636PLO5 FOS-636PLP8
FOS-618PL1/2 FOS-636PLO5 FOS-636PLP8 FOS-636PL1/2 FOS-512PL25 FOS-718PL25 FOS-618PLO5
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
