AC-64405 AC Series Parker Velcon Oil Fuel Coalescer Cartridge Replacement

AC-64405 coalescer cartridge is used to purify oil and protect the normal operation of equipment or air cleanliness. AC-64405 has an exoskeleton structure that can remove a small amount of solid particles in the liquid. When the fluid enters the filter element filter, impurities are blocked and clean oil flows out through the filter element.


General specifications

Quality:

Brand: DKFILTER

Model: AC-64405

Filter type: Oil Fuel Coalescers Cartridge filter

Lengh: 44 inches

Out Diameter: 6.0 inches

Inner Diameter: 3.5 inches

Filter construction: Fiberglass, Pleated layers

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Series: AC-51205C, AC-71801, AC-71805, AC-718P4D, AC-62905 more

Introduction

AC-64405 AC series oil fuel coalescer filter cartridge is used as the second stage in the filter/separator container,its sole function is to repel coalesce water droplets produced by the first stage filter element while allowing hydrocarbon fluids to pass through,the water droplets sink into the filter/separator tank and are not carried downstream,all particle filtration is done by the first stage coalesce filter element.


Performance Parameters:

ItemValue
Length44 inches
Inside Diameter3.5 inches
Outside Diameter6.0 inches
Filtration accuracy......99.9%
Filter MaterialMicro Fiberglass and Cellulose
SealBuna-N
Removal EffciencyEffuent solids <0.15 mg/liter
Center TubeCorrosion Resistant Steel


Related Filters

AC-73605, AC-73601, AC-7361/2, AC-71805, AC-718P4D, AC-62905, AC-61405, AC-51205, AC-5121/2E, AC-71801, AC-0512050, AC-718P3

AC-82205, AC-51225, AC-51225, AC-51205, AC-51205C, AC-71801, AC-718P4D, AC-O61405C, AC-O21001B, AC-O51205B, AC-61405, AC-A210

AH511P8SP, AC-051205C, AC-I64401DTB, AC-7361/2, AC-I63301CTB, AC-I63301LTB AD20125, , AD21025, AC-O51201K, AC-8221/2, AC-I44001C

AC-60925, AC-71825, AC-73601, AC-73605, AC-815P3, AC-815P4D, AC-82901, AC-I65601CTB, AC-O51201B, AC-O51201C, AC-O61401K

AC-71901CR, AC-71825, AC-822P3, AD512225, AC-21005, AC-71805, AC-7181/2, AC-80701, AC-8071/2, AC-81501, AC-8151/2, AC-82201


AC Series Structural Diagram:

AC-64405 fuel oil filter cartridge function is to improve the cleanliness of oil products, ensure the quality requirements of oil products, and ensure the long-term, efficient and safe operation of industrial equipment.

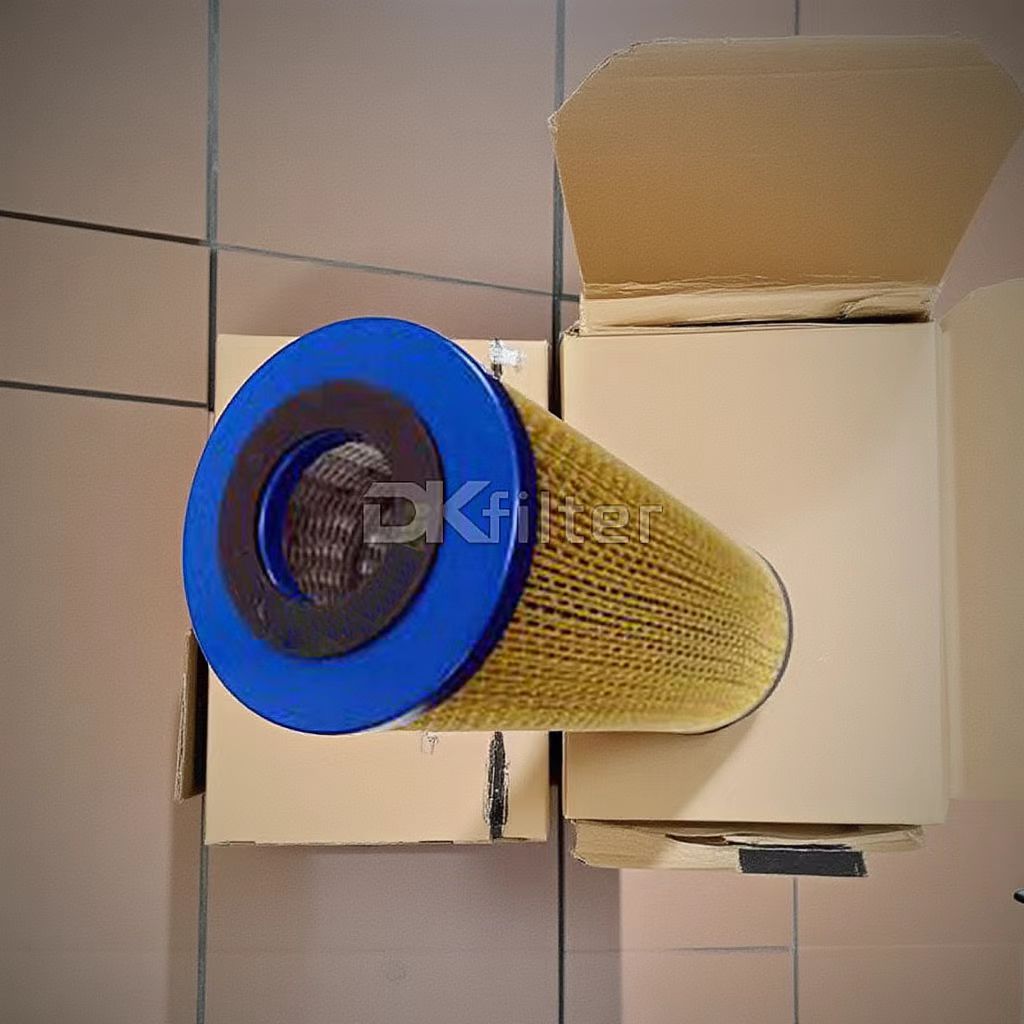

AC-64405 AC Series Parker Velcon Oil Fuel Coalescer Cartridge Replacement


Filter Material:

Our manufactured AC-64405 fuel filter cartridge media is made from high quality hydrophobic pleated cellulose material. The outer media layer filters out silt, rust and other particulate contaminants, while the inner layer absorbs water and chemicals. AC-64405 aviation fuel coalescer filter elements are widely used in various industrial industries such as power generation, oil and gas, petrochemicals, aerospace, etc.

• All metal parts are treated for corrosion protection

• Buna-N gaskets - other materials available upon request

• Composite fiber and pleated paper media high surface area pleated core.

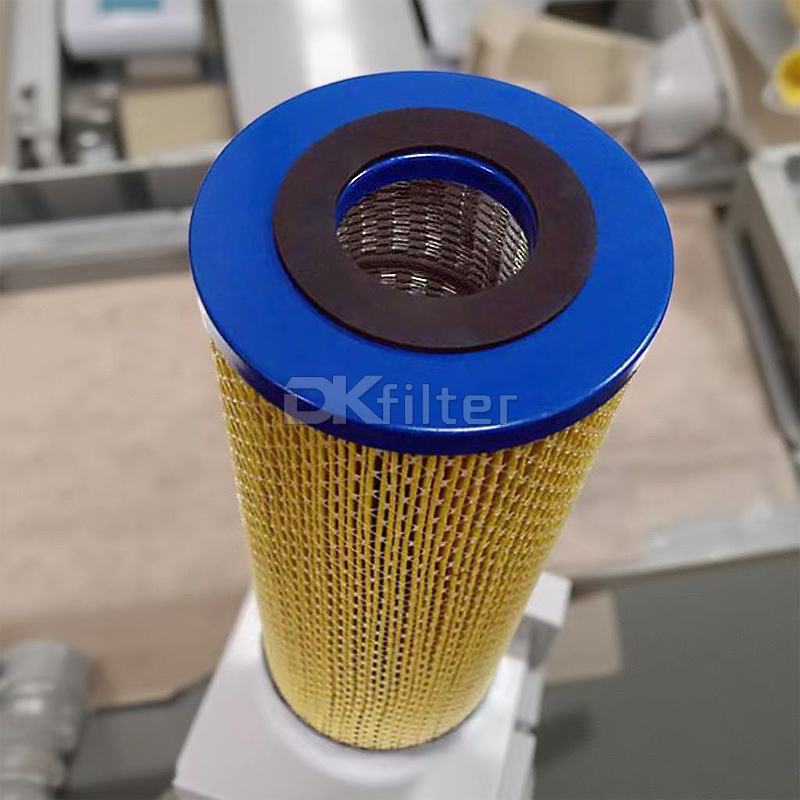

AC-64405 AC Series Parker Velcon Oil Fuel Coalescer Cartridge Replacement


Filter material pressure curve:

Our manufactured AC-64405 coalescer water oil filter media is made from high quality hydrophobic pleated cellulose material. The outer media layer filters out silt, rust and other particulate contaminants, while the inner layer absorbs water and chemicals. AC-64405 coalescer filter elements are widely used in various industrial industries such as power generation, oil and gas, petrochemicals, aerospace, etc.

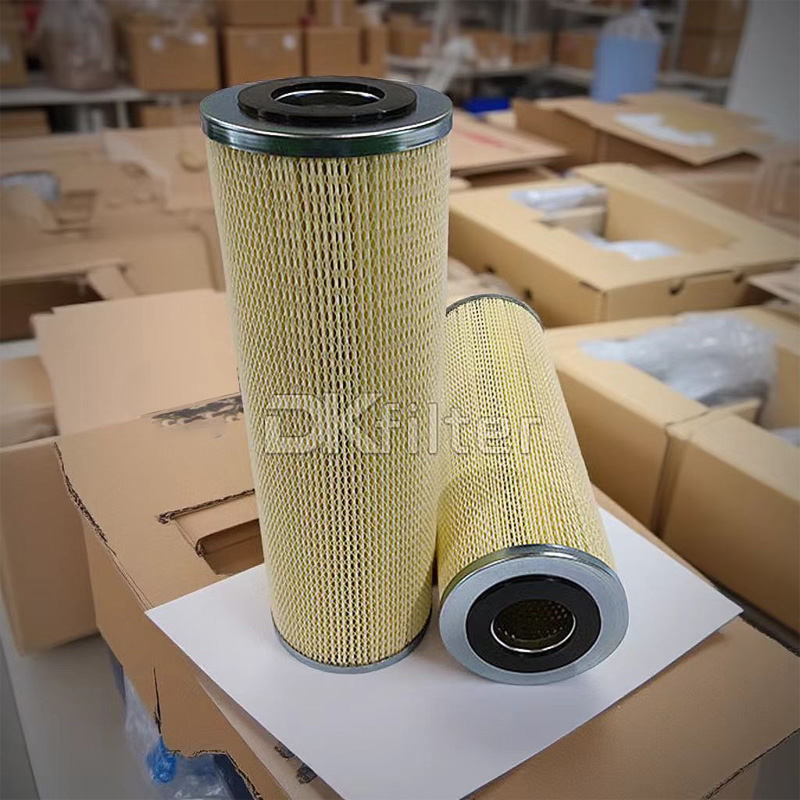

AC-64405 AC Series Parker Velcon Oil Fuel Coalescer Cartridge Replacement


Test standards:

Before delivery, Our manufactured AC-64405 oil filter cartridge will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Applications:

AC-64405 is widely used industries:

Gasoline

Transformer Oil

Synthetic Oil

Kerosene

Hydraulic Oil

Phosphate Ester Oil

Diesel Fuel

Turbine Lube Oil

Instrument Air

Insulating Oil

Quench Oil

Process Gases


Related Specification Filters

Model Number Micrometer Rating Nominal Micrometer Rating Beta x=75 I.D. Inches O.D. Inches Length Inches Collapse Pressure psi
AC-73601 1 6 2 9/16 6 1/4 18 75
AC-21005 5 40 1 2 5/8 9 3/4 75
AC-73605 5 40 2 9/16 6 1/4 18 75
AC-5121/2E 5 3 1 7/8 5 5/8 12 1/8 75
AC-718P3 0.3 2 2 9/16 6 1/4 18 75
AC-62905 5 40 3 1/2 6 29 1/2 100
AC-64405 5 40 3 1/2 6 44 100
AC-7181/2 0.5 3 2 9/16 6 1/4 18 75
AC-7361/2 0.5 3 2 9/16 6 1/4 18 75
AC-718P4D 0.4 2.5 2 9/16 6 1/4 18 75
AC-51205 5 40 1 7/8 5 5/8 12 1/8 75
AC-61405 5 40 3 1/2 6 14 1/2 100
AC-71801 1 6 2 9/16 6 1/4 18 75
AC-71805 5 40 2 9/16 6 1/4 18 75
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
