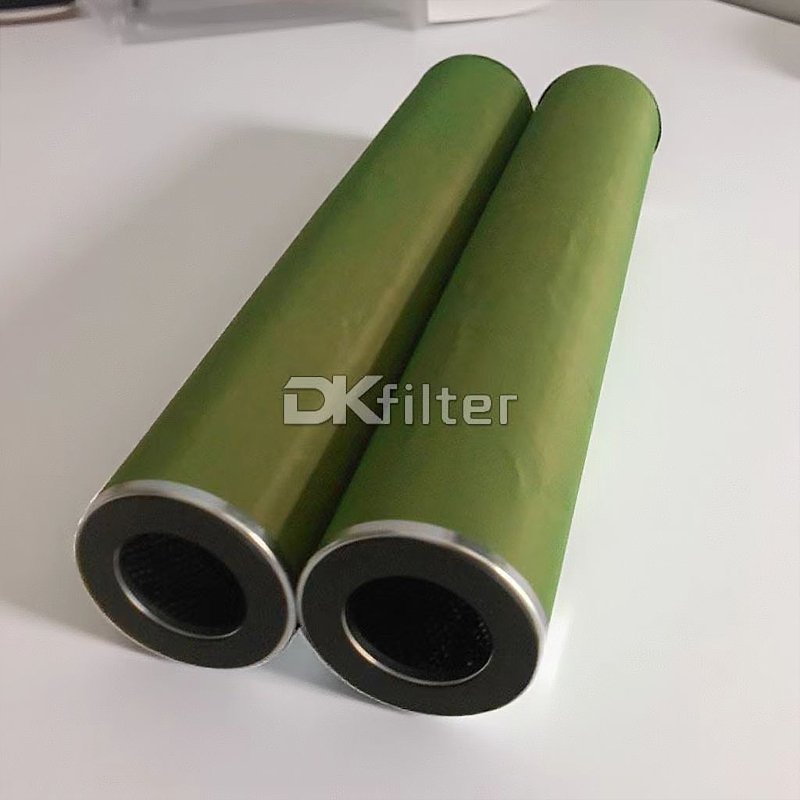

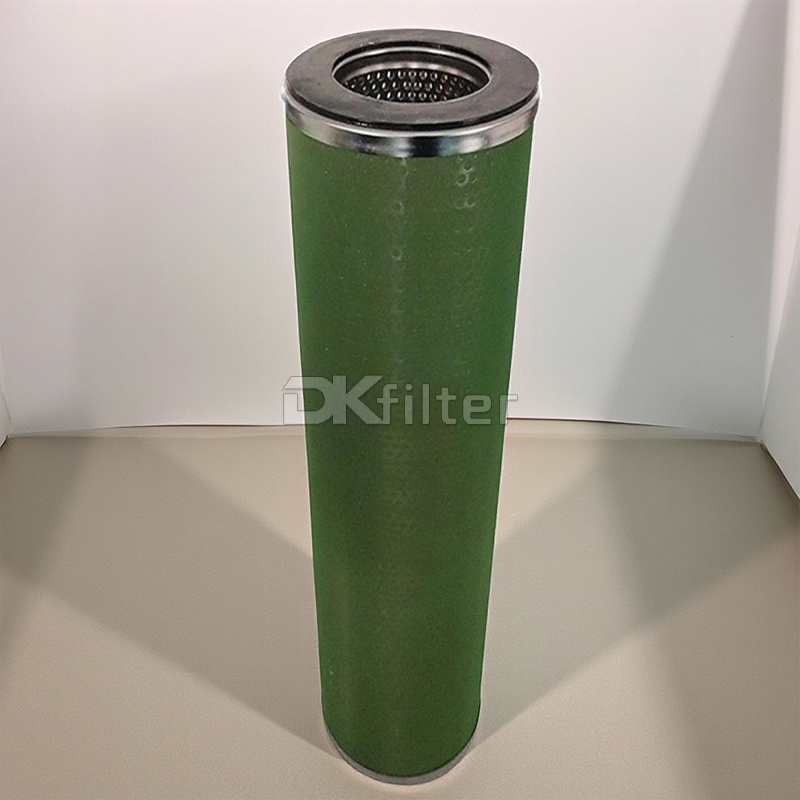

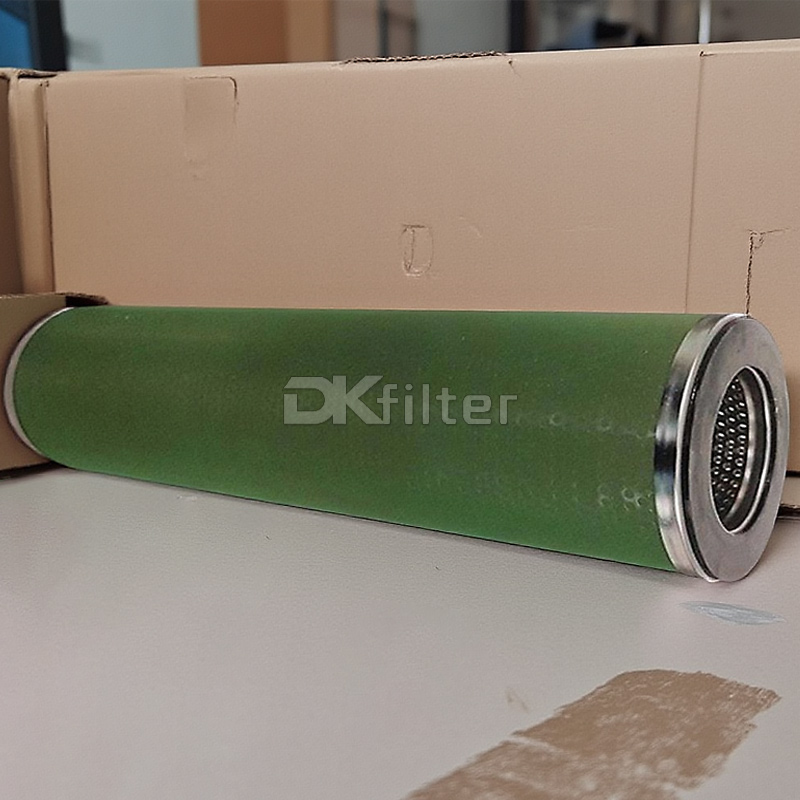

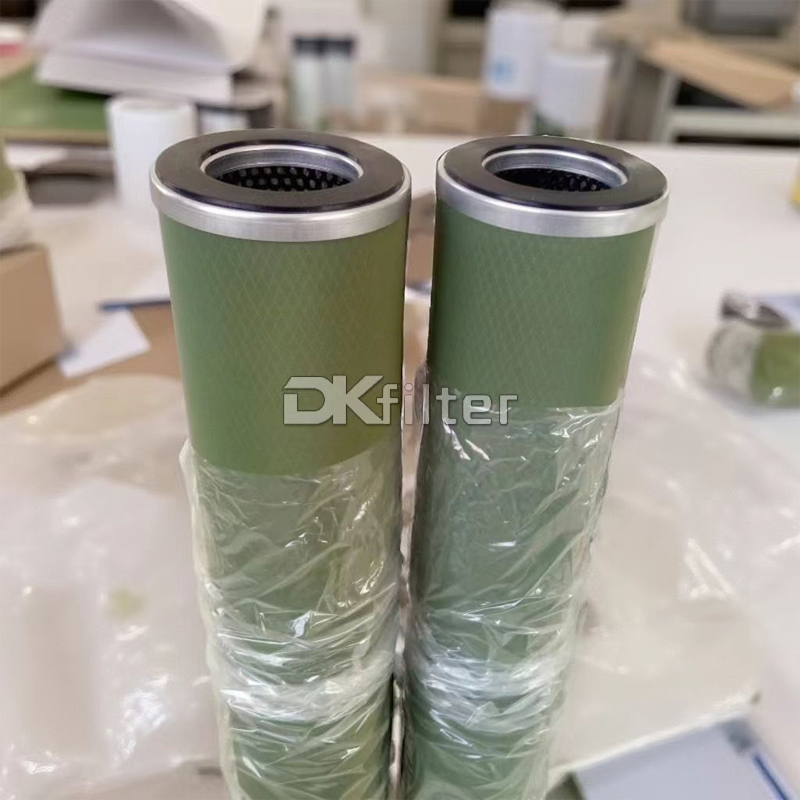

ST318FA-5 Facet ST-5 Series Oil Water Separator Filter Cartridges Element

ST318FA-5 facet ST-5 series separator filter is mainly for aviation kerosene to removes ultra-fine solids and enhances separation of water from jet fuel. We makes different types coalescer and separator with synthetic and teflon material.ST318FA-5 separator filter element can also be used for recycling and reusing waste liquids to avoid possible scaling and corrosion of downstream equipment.


General specifications

Quality:

Brand: DKFILTER

Model: ST318FA-5

Type: liquid coalescence separation Filter Element

Length: 460.0 mm

Inside Diameter: 13.0 mm

Outside Diameter: 76.0 mm

Seal Material: Fiberglass, Teflon

Construction: Corrosion Resistant Steel

Series: ST432FC-5, ST436FB-5, ST609FB-5, ST609FF-5, ST611FD-5, ST612FB-5 more

Introduction:

ST318FA-5 facet ST-5 series separator filters particles, viscous pollutants and emulsified water and is installed in a vertical filter/separator. Classified under Coalescer and separator type filter. The end cover is made of stainless steel. The double glass media on the outer layer of the filter element and the water-removing scrim are folded together to remove water. Safe, long life, easy to install.


Structure Parameters:

ItemValue
Length460 mm
Outside Diameter76 mm
Inside Diameter13 mm
Filter MaterialTeflon
SealBuna-N
End CapsCorrosion Resistant Steel
Center TubeCorrosion Resistant Steel


More ST-5 Series

ST638FD-5, ST640FD-5, ST640FE-5, ST640FF-5, ST643FB-5, ST643FD-5, ST643FF-5, ST644FB-5, ST318FA-5, ST624FB-5

ST324FA-5, ST412FC-5, ST415FB-5, ST417FB-5, ST422FC-5, ST424FB-5, ST430FB-5, ST630FD-5, ST630FB-5, ST622FD-5

ST630FE-5, ST630FF-5, ST633FB-5, ST633FD-5, ST636FB-5, ST636FD-5, ST636FE-5, ST636FF-5, ST629FD-5, ST618FB-5

ST644FD-5, ST644FE-5, ST644FF-5, ST648FD-5, ST648FF-5, ST656FB-5, ST656FF-5, ST417FB-5, ST624FF-5, ST412FC-5

ST432FC-5, ST436FB-5, ST609FB-5, ST609FF-5, ST611FD-5, ST612FB-5, ST614FD-5, ST616FD-5, ST624FE-5, ST424FB-5


Structrue Materials:

• Buna-N washers

• Teflon-coated screens

• Treated metal parts provide protection against corrosion

• Additional washers, adhesives and metal materials may be supplied upon request


Filter Material:

We make ST318FA-5 oil separator cartridge uses high-performance Teflon filter material. Moisture resistance: the surface of Teflon does not stick to water and oil. If there is dirt, can be removed by simply wiping it. Temperature resistance: does not become brittle at freezing temperatures and does not melt at high temperatures. Wear resistance: smooth surface has a very low coefficient of friction. Corrosion resistance: almost immune to any kind of chemical corrosion.

ST318FA-5 Facet ST-5 Series Oil Water Separator Filter Cartridges Element


Test Standards:

Before delivery, Our manufactured ST318FA-5 oil separator filter cartridge will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Customized Processing:

We corporation are excellent separator cartridge filter manufacturer

Parker & Velcon

PECO & Facet

Faudi

Pall

Other types are available on request


Related Specification Filters

SS611FD-5 ST611FD-5 152 290 89 89
SS612FB-5 ST612FB-5 152 310 13 89
SS415FB-5 ST415FB-5 114 380 13 89
SS417FB-5 ST417FB-5 114 430 13 89
SS422FC-5 ST422FC-5 105 570 48 48
SS424FB-5 ST424FB-5 114 610 13 89
SS324FA-5 ST324FA-5 76 610 13 51
SS412FC-5 ST412FC-5 105 290 48 48
SS430FB-5 ST430FB-5 114 760 13 89
SS432FC-5 ST432FC-5 105 800 48 48
SS609FF-5 ST609FF-5 152 230 13 114
SS614FD-5 ST614FD-5 152 370 89 89
SS616FD-5 ST616FD-5 152 410 89 89
SS618FB-5 ST618FB-5 152 460 13 89
SS622FD-5 ST622FD-5 152 560 89 89
SS624FB-5 ST624FB-5 152 610 13 89
SS436FB-5 ST436FB-5 114 910 13 89
SS609FB-5 ST609FB-5 152 230 13 89
SS624FE-5 ST624FE-5 152 610 13 105
SS624FF-5 ST624FF-5 152 610 13 114
SS630FD-5 ST630FD-5 152 760 89 89
SS630FE-5 ST630FE-5 152 760 13 105
SS630FF-5 ST630FF-5 152 760 13 114
SS633FB-5 ST633FB-5 152 840 13 89
SS633FD-5 ST633FD-5 152 840 89 89
SS636FB-5 ST636FB-5 152 910 13 89
SS636FD-5 ST636FD-5 152 910 89 89
SS636FE-5 ST636FE-5 152 910 13 105
SS629FD-5 ST629FD-5 152 730 89 89
SS630FB-5 ST630FB-5 152 760 13 89
SS636FF-5 ST636FF-5 152 910 13 114
SS638FD-5 ST638FD-5 152 965 89 89
SS640FD-5 ST640FD-5 152 1020 89 89
SS640FE-5 ST640FE-5 152 1020 13 105
SS640FF-5 ST640FF-5 152 1020 13 114
SS643FB-5 ST643FB-5 152 1090 13 89
SS643FD-5 ST643FD-5 152 1090 89 89
SS644FB-5 ST644FB-5 152 1120 13 89
SS644FD-5 ST644FD-5 152 1120 89 89
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
