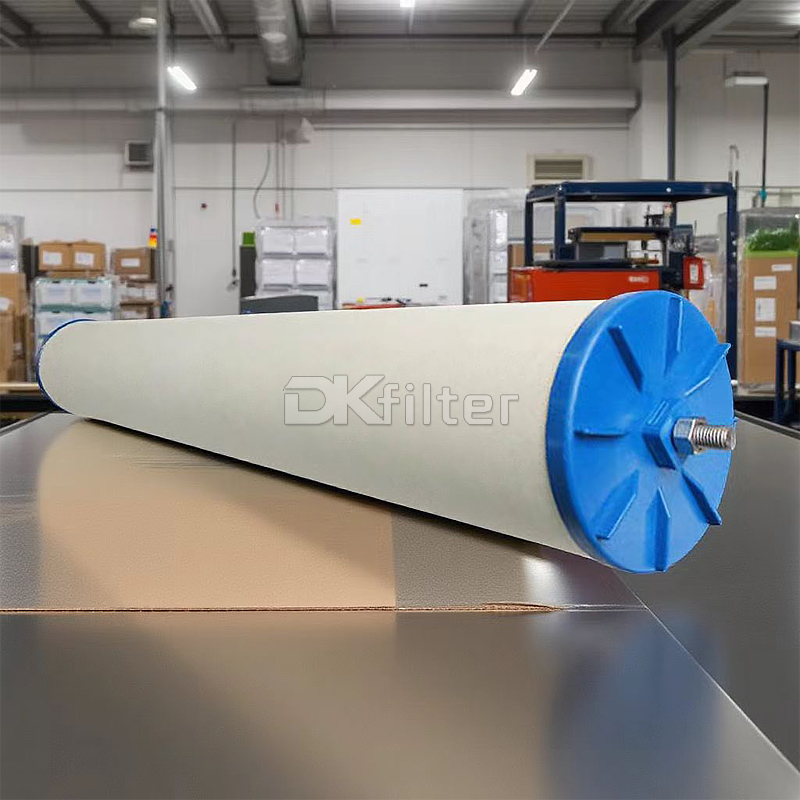

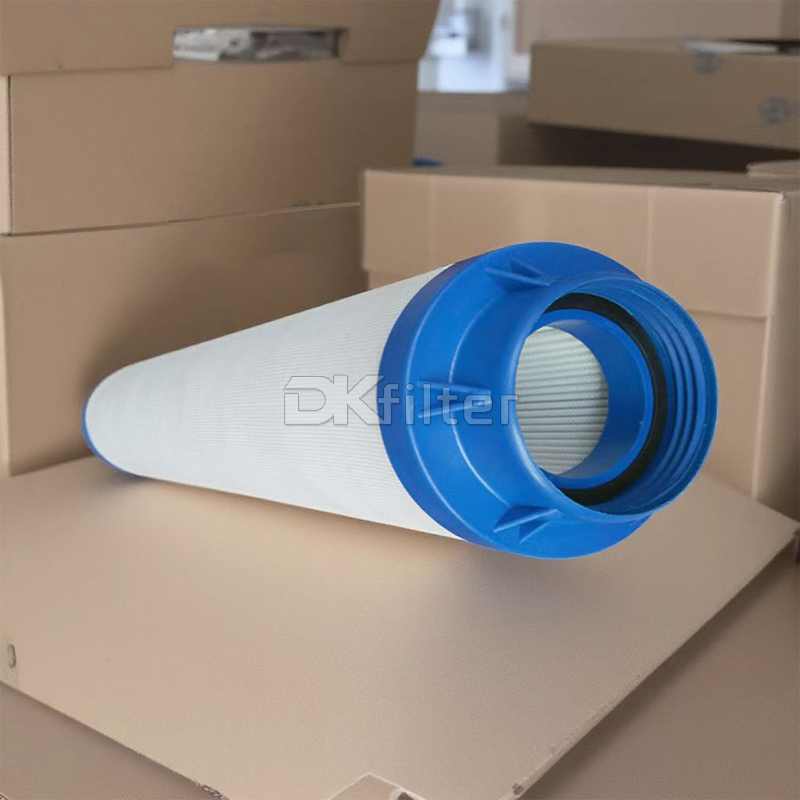

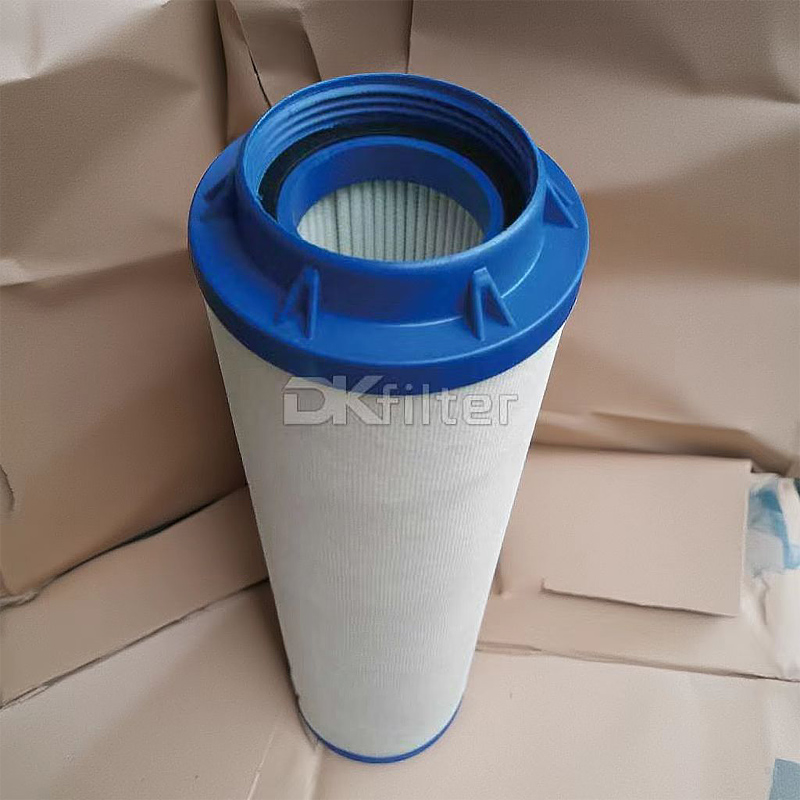

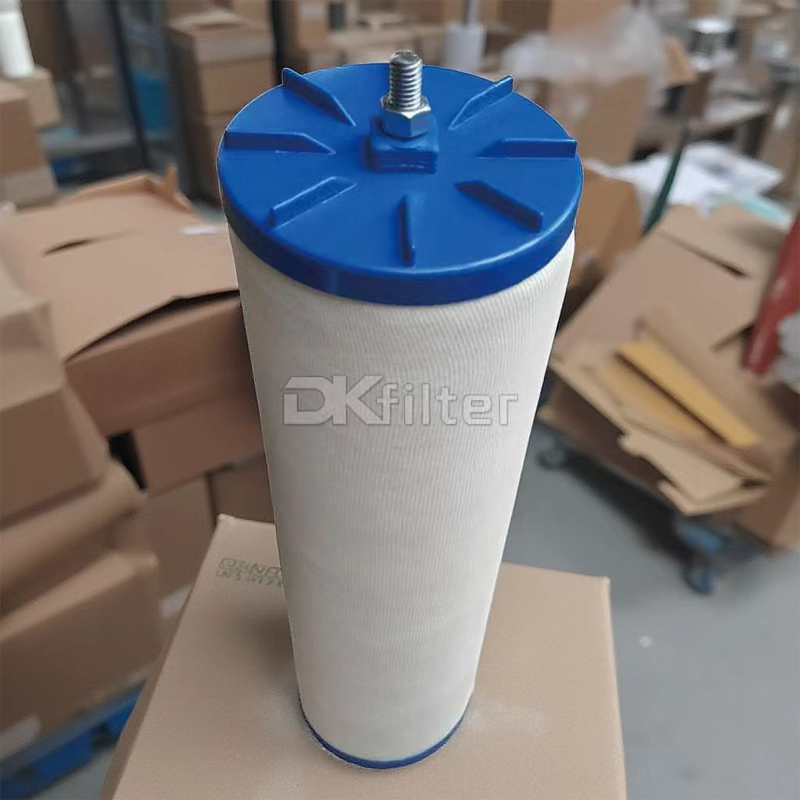

I-614C5TB Parker Velcon Aviation Industrial Coalescer Filter Replacement

I-614C5TB parker velcon coalescing filter element is mainly used for coalescing emulsified water and removing particles from hydrocarbon fluids. The biggest single application is filtration of aviation jet fuel. I-614C5TB is also used in other types of fuels, process flows in refineries and petrochemical plants, and condensate streams to produce natural gas.


General specifications

Quality:

Brand: DKFILTER

Model: I-614C5TB

Type: Velcon Coalescer Filter Element

Length: 14.0 inches

Inside Diameter: 3.5 inches

Outside Diameter: 6.0 inches

Filter material: Synthetic, Fiberglass

End Cap Configuration: Threaded Base

Series: I-61481, I-61483, I-61487, I-614C5, I-614C5TB more

Introduction:

We make I-614C5TB parker velcon coalescer filter cartridge replacement is used to remove cost-effective particles and emulsified water from hydrocarbon fluids, as the first stage filter element for filters/separators. I-614C5TB fuel gas coalescer filter performance has been verified on site, using a single unit structure to reduce the number of gasket seals and achieve the effect of improving overall reliability, making it very durable.


Performance Parameters:

ItemValue
Length14.0 inches
Inside Diameter3.5 inches
Outside Diameter6.0 inches
Filtration accuracy99.9%
Changeout Pressure Differential15 psi, 1 bar
Work pH5~9
Temperature range65ºC~75ºC
Filter MaterialFiberglass
SealBuna-N
End Caps Configuration.....Threaded Base


More I-614 Series

I-6332, I-6332SCB, I-6332TB, I-628C5TB, I-6330, I-6334

I-62287TB, I-622C5, I-622C5TB, I-6281TB, I-6282, I-6282TB

I-6146, I-61481, I-61483, I-61487, I-614C5, I-614C5TB

I-6440, I-6440TB, I-6442, I-6442TB, I-6446, I-6446TB

I-63386TB, I-63387TB, I-633C5, I-63385, I-63385TB, I-633C5TB

I-6283TB, I-6284TB, I-6286, I-6286TB, I-62880TB, I-62883

I-62885TB, I-62887, I-62887TB, I-62883TB, I-62884TB, I-628C5

I-63885TB, I-63887TB, I-638C5, I-6386TB, I-63883TB, I-638C5TB

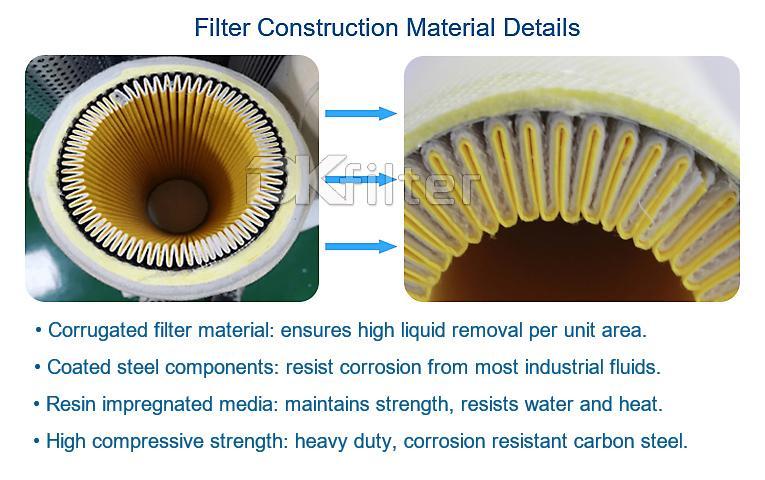

Structure Materials:

• Stainless steel metal support

• Polymeric outer drainage layer to prevent liquid reentrainment

• Resin bonded glass fiber coalescer media designed in a pack to handle large quantities of liquid

• Oleophobic/hydrophobic treatment to improve liquid drainage,protect from liquid slugs and minimize saturated pressure drop

I-614C5TB Parker Velcon Aviation Industrial Coalescer Filter Replacement


Performance Features:

• Fine media layer to achieve deep filtration of particles.

• The largest single application that can be used is the filtration of aviation jet fuel.

• Simplify nuts, cover plates, center plates, and washers for easy installation and replacement.

• Aggregation and filtration performance, using high-density glass fiber media with fiber diameter and volume density.

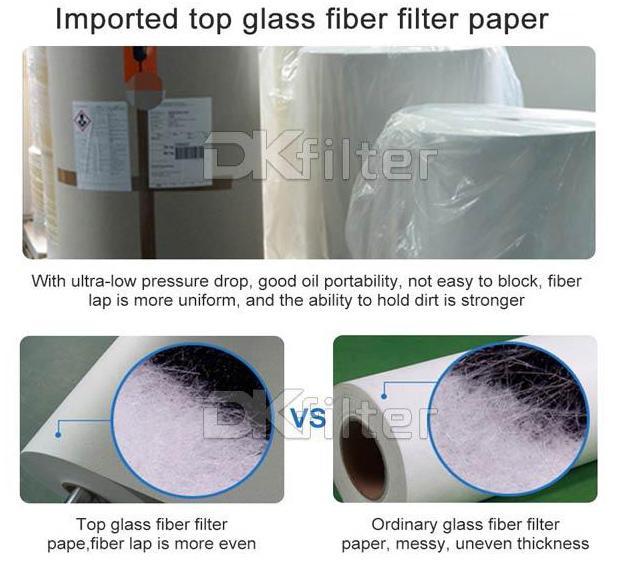

Filter Material:

Our manufactured I-614C5TB coalescing filters use a single unit structure to reduce the number of gaskets and improve overall reliability. I-614C5TB coalescers cartridge filter have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use.

• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.

• All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.

• The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.

I-614C5TB Parker Velcon Aviation Industrial Coalescer Filter Replacement


Applications:

• The biggest single application that can be used is the filtration of aviation jet fuel.

• The I-614C5TB fuel gas coalescer filter cartridge is mainly used for coalescing emulsified water and removing particles from hydrocarbon fluids.

• Can be used together with other types of fuels, process flows from refineries and petrochemical plants, and condensate flows for natural gas production:

•• Refinery: Compressor suction and gas.

•• Natural gas distribution: M&R stations.

•• Natural gas production and collection: compressor suction.

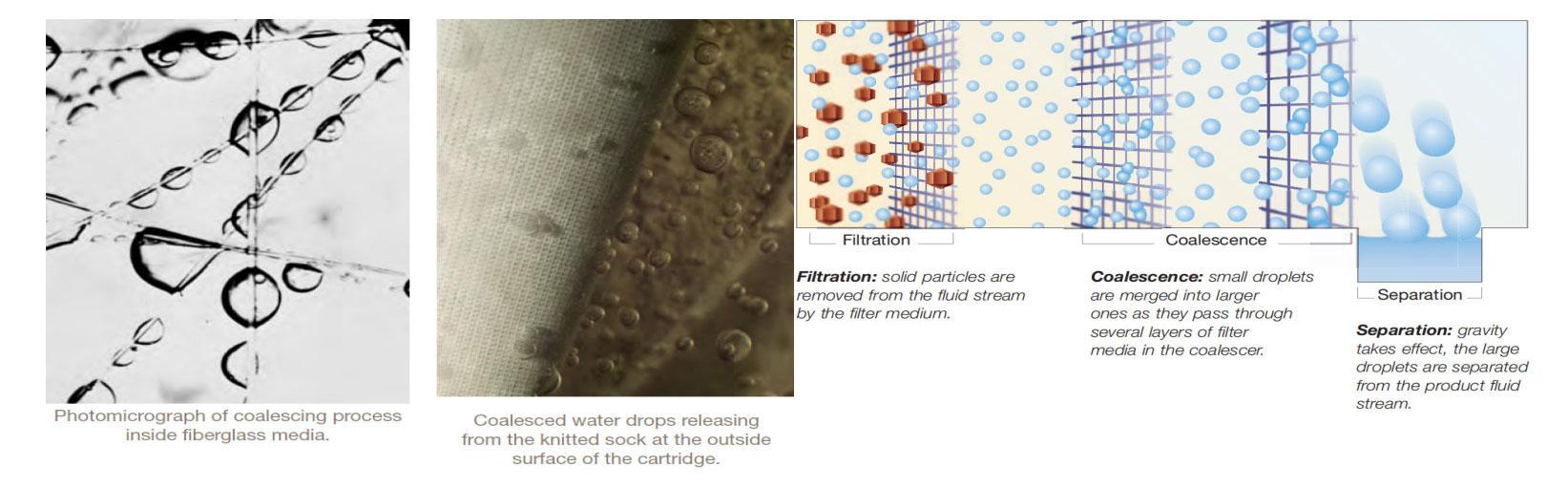

Work principle:

I-614C5TB high-efficiency coalescers merge small droplets of liquid into larger ones as the fluid stream passes through several layers of filter media,each with progressively larger pores.As droplets compete for the open pores,they coalesce forming larger droplets.These larger droplets are easier to separate from the continuous phase fluid.

The I-614C5TB coalescer size and type are determined by numerous factors:physical properties of the fluid,flow rate,process conditions and chemical compatibility with process fluids and additives.

I-614C5TB Parker Velcon Aviation Industrial Coalescer Filter Replacement


Test Standards:

Before delivery, Our manufactured I-614C5TB high-efficiency coalescer filter cartridge will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Customized Processing:

We corporation are excellent coalescer cartridge filter manufacturer

Parker & Velcon

PECO & Facet

Faudi

Pall

Other types are available on request


Related Specification Filters

I-62287TB I-622C5 I-622C5TB I-6281TB I-6282 I-6282TB
I-6146 I-61481 I-61483 I-61487 I-614C5 I-614C5TB
I-61183 I-61187 I-611C5 I-6112 I-6116 I-6142
I-6222 I-6226 I-6226TB I-6183 I-6220TB I-628MMTB
I-6332 I-6332SCB I-6332TB I-628C5TB I-6330 I-6334
I-62885TB I-62887 I-62887TB I-62883TB I-62884TB I-628C5
I-62281 I-62281TB I-62283 I-62283TB I-62285TB I-62287
I-6283TB I-6284TB I-6286 I-6286TB I-62880TB I-62883
I-6440 I-6440TB I-6442 I-6442TB I-6446 I-6446TB
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
