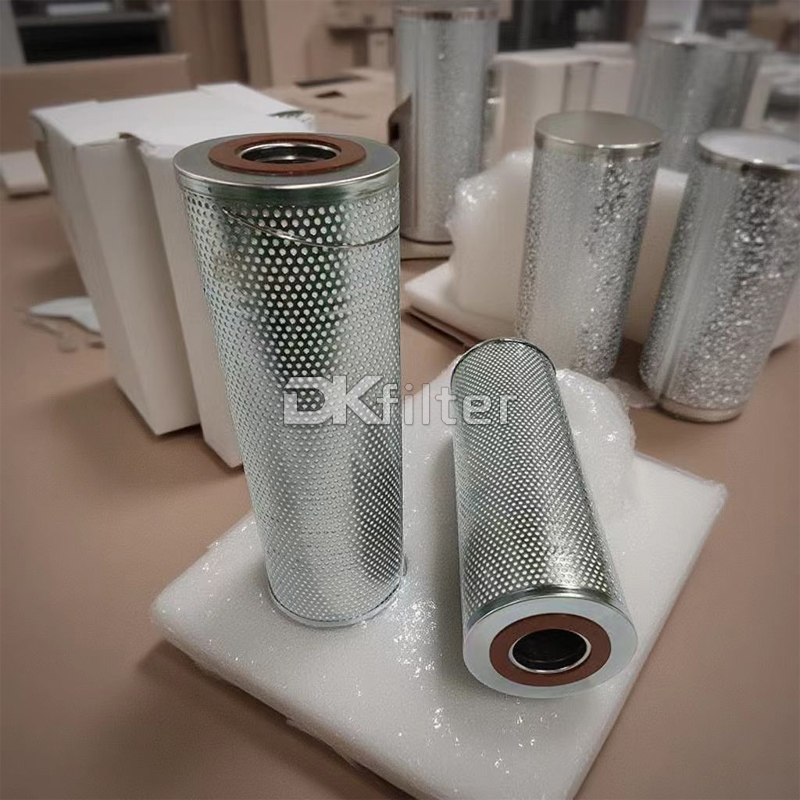

SD-718 SD Series Velcon System Superdri Cartridges replacement

SD-718 cartridge is used to remove dissolved water from transformer oil and reduce moisture in transformer oil to <10ppm without heat & vacuum specifically developed for dehydrating oil to be used in transformers SD-718 series cartridges can help utilities reduce expenses and increase efficiency when processing oil.


General specifications

Quality:

Brand:DKFILTER

Model: SD-718

Filter type: Oil Coalescer Cartridge Filter

Length: 18.0 inches

Outside Diameter: 6.25 inches

Inside Diameter: 2.56 inches

Seal: Buna-N

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Series: SD-807, SD-1107, ACI-61401L, ACI-63801L, ACI-65601L more

Introduction:

SD-718 series coalescer cartridge filter is used to help utilities reduce expenses and increase efficiency when processing oil. DKFILTER makes the replacement of Parker & Velcon cartridges SD-718 and many other different brands coalescer and separator of PECO&FACET,FAUDI,Pall to be used dissolved water removal from insulating oil is now possible without the need for heat and vacuum oil processing systems.Specifically developed for dehydrating oil to be used in transformers.


SD-718 Performance Features:

• Safe: Will not remove oxidation inhibitors.

• Cost Effective: Process transformer oil for less than per gallon.

• Versatile: Models available to fit most industry standard housings.

• Unique Construction: Specifically designed for transformer oil dehydration.

• Efficient: Single pass water removal to less than 10 ppm total water,or better.

• High Capacity: Process up to 5,000 gallons of oil or more with a single cartridge.

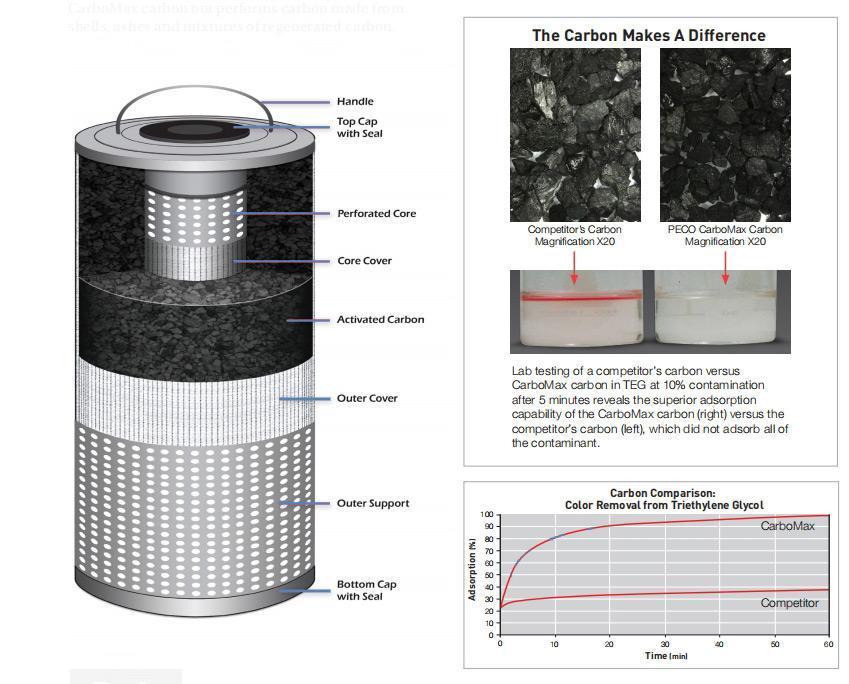

Structural Components:

We make SD-718 coalescing filter cartridge made of high quality CarboMax. Manufactured from CarboMax cans contain 100% virgin granular activated carbon made from coal, which undergoes a high-temperature steam activation process under strict quality control. CarboMax carbon outperforms carbon made from a blend of shells, ash and recycled carbon to create coalescer filter cartridges that extend service life, process performance and product quality.

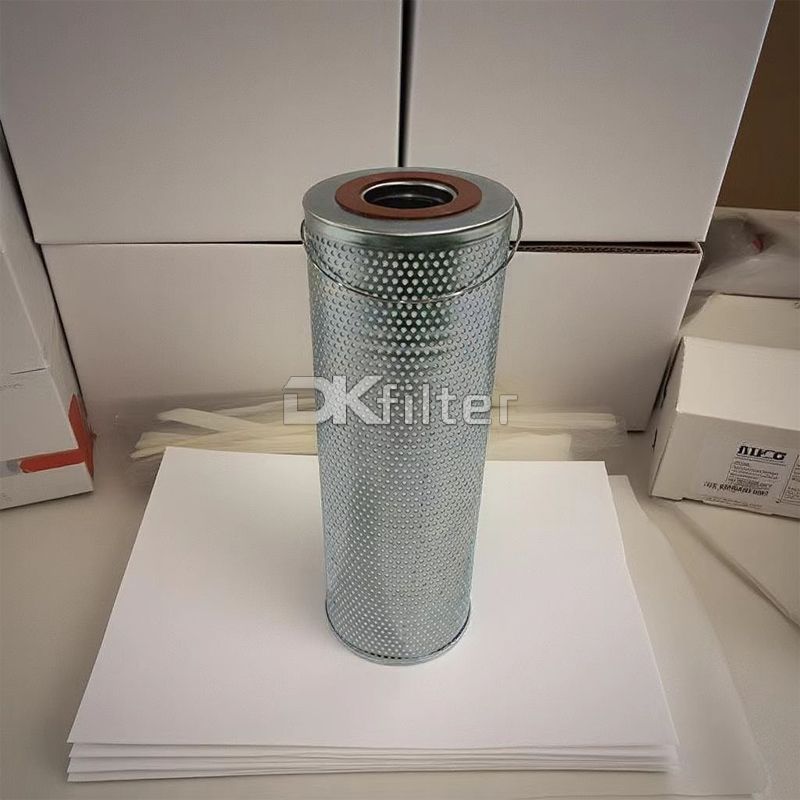

SD-718 SD Series Velcon System Superdri Cartridges replacement


Notes:

• SD-718 Series cartridges are not designed for particulate removal.

• If free water is suspected, the oil should be prefiltered using Velcon Aquacon elements.

• Prefiltering through Velcon 1/2 micron elements is recommended if particle contamination is suspected.

• SD-718 Series cartridges are not recommended for cost effective removal of free water in insulating oil.


Test Standards:

Before delivery, Our manufactured SD-718 Series cartridges will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Customized Processing:

We corporation are excellent coalescer cartridge filter manufacturer

Parker & Velcon

PECO & Facet

Faudi

Pall

Other types are available on request.


Related Specification Filters

Other Velcon model numbers:

SD/ACI Series:

SD-718 SD-807 SD-1107 SD-1107HT ACI-61401L ACI-61401LTB ACI-62201L
ACI-62201LTB ACI-62901L ACI-62901LTB ACI-63301L ACI-63301LTB ACI-63301FL ACI-63801L
ACI-63801LTB ACI-64401L ACI-64401LTB ACI-65601L ACI-65601LTB ACI44001C ACI62901L
ACI63301CTB ACI63301LTB ACI64401DTB ACI64401L ACI65601CTB

FOS Series:

FOS-512PL25 FOS-718PL25 FOS-618PLO5 FOS-618PLP8 FOS-618PL1/2 FOS-636PLO5 FOS-636PLP8
FOS-636PL1/2 FOS-718PL25 FOS-614PLO5 FOS-618PLO5 FOS-618PLP8 FOS-618PL1/2 FOS-636PLO5
FOS-636PLP8 FOS-636PL1/2 FOS-718PL25 FOS-614PLO5 FOS-618PLO5 FOS-618PLP8 FOS-618PL1/2
FOS-636PLO5 FOS-636PLP8 FOS-636PL1/2 FOS-718PL25 FOS-614PL05 FOS-618PL05 FOS-618PLP8
FOS-618PL1/2 FOS-636PLO5 FOS-636PLP8 FOS-636PL1/2

FO Series:

FO-718PLP3 FO-718PL1/2 FO-718PLO1 FO-718PLO2 FO-718PLO5 FO-718PL10 FO-718PL15
FO-718PL25 FO-718PL50 FO-736PLP3 FO-736PL1/2 FO-736PLO5 FO-736PL15 FO-822P
FO-822PL1/2 FO-822PLO5 FO-829PLO5 FO-618FGA5 FO-618FGA10 FO-618FGA25 FO-718PL1/2
FO-718PLO1 FO-718PLO2 FO-718PLO5 FO-718PL15 FO-718PL50 FO-618FGA5 FO-618FGA10
FO-618FGA25 FO-718PL1/2 FO-718PLO1 FO-718PLO2 FO-718PLO5 FO-718PL15 FO-718PL50
FO-618FGA5 FO-618FGA10 FO-618FGA25

AC series:

AC-718P3(1) AC-718P4D AC-7181/21 AC-71801 AC-71805 AC-7361/2(1) AC-73601
AC-73605 AC-718P3 AC-7181/2 AC-71801 AC-71801 AC-71825 AC-718P3
AC-7181/2 AC-71801 AC-71805 AC-80701 AC-8071/2 AC-807P3 AC-807P4D
AC-81501 AC-8151/2 AC-815P3 AC-815P4D AC-82201 AC-8221/2 AC-822P3
AC-822P4D AC-82901 AC-8291/2 AC-829P3 AC-829P4D AC-7131/2CR AC-71901CR
If you have no standard filter code numbersplease send us your filters specifications or sampleswe can customize as your requests.
