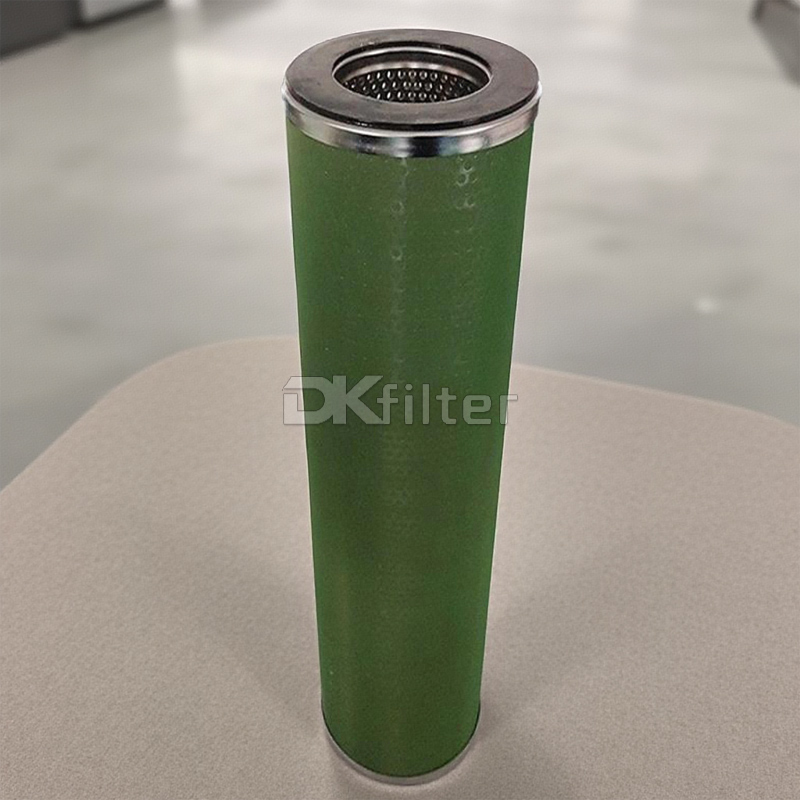

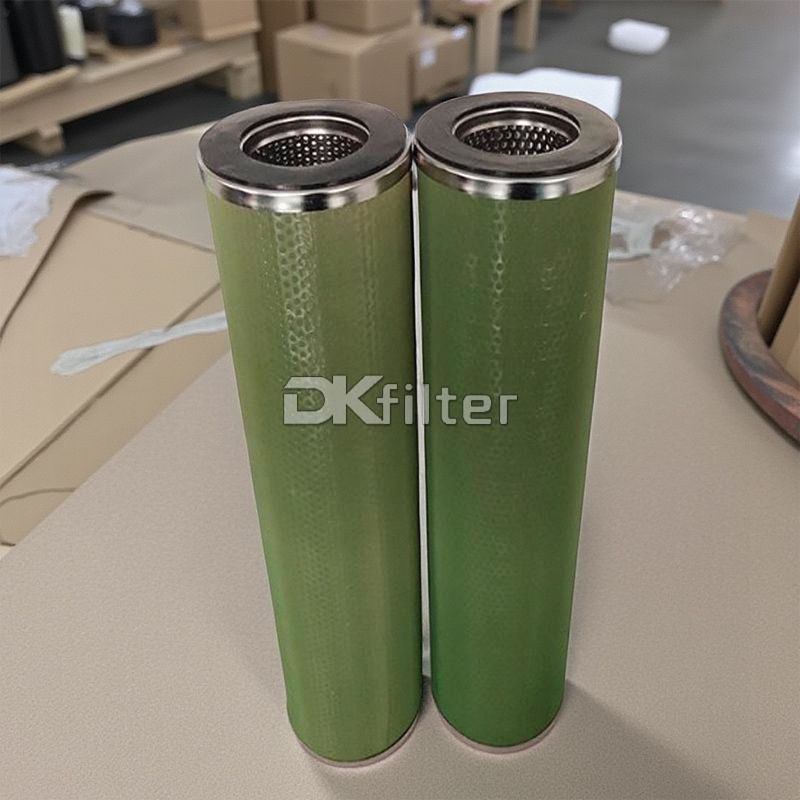

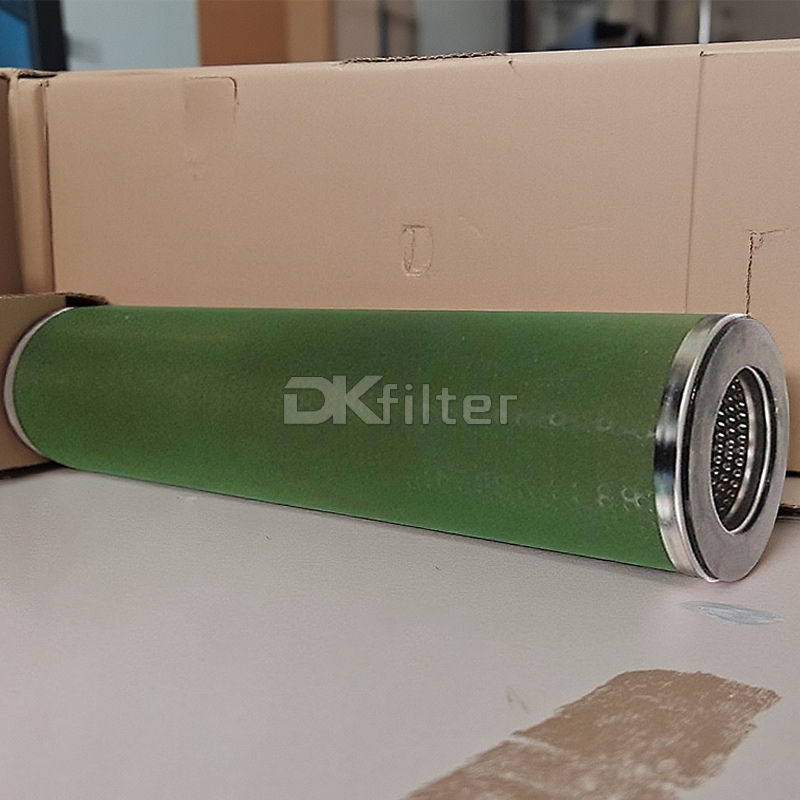

ST630FE-5 Facet Teflon material separator cartridge

Facet Teflon ST630FE-5 separator is mainly for aviation kerosene to removes ultra-fine solids and enhances separation of water from jet fuel. It uses teflon coated screen wrapped around an epoxy coated metal shelllock-seam foldedthen adhesive bonded to metal end caps with gaskets.


General specifications

Quality:

Brand: DKFILTER

Model: ST630FE-5

Type: Oil Separator Filter Cartridge

Length: 30.0 inches

Outside Diameter: 6.0 inches

Inside Diameter: 3.5 inches

Filter material: Teflon

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Series: SS318FA-5, SS415FB-5, SS432FC-5, SS614FD-5, SS629FD-5 more

ST630FE-5 Introduction:

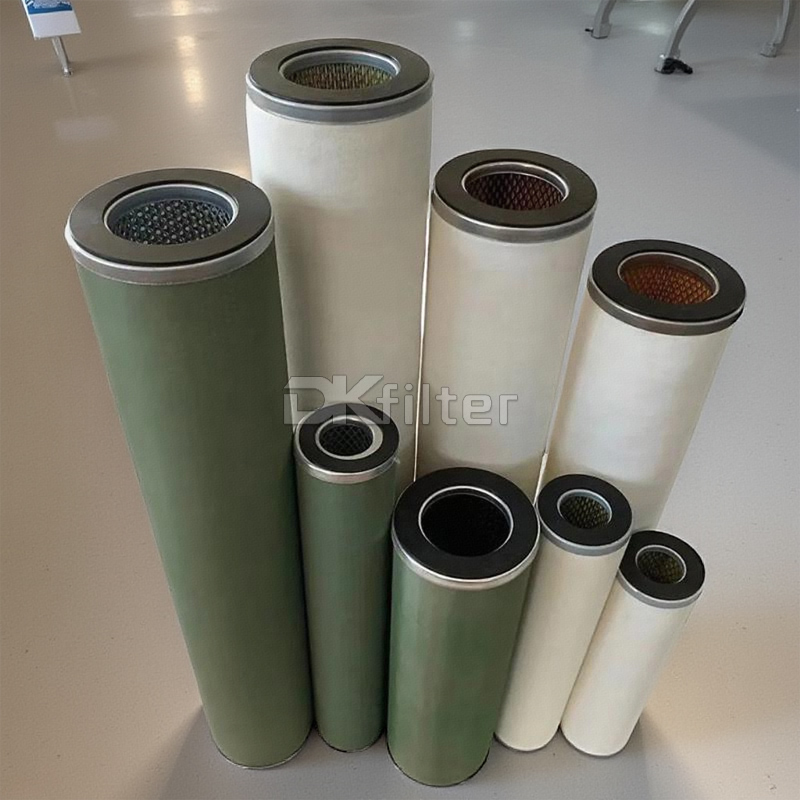

Facet ST630FE-5 separator filter is mainly for aviation kerosene to removes ultra-fine solids and enhances separation of water from jet fuel. We makes different types coalescer and separator with synthetic and teflon material. The ST630FE-5 separator filter cartridge maximum recommended operating temperature is 240°F.Other gaskets, adhesives and metal materials are available for compatibility under extreme working conditions.


Structure Parameters:

ItemValue
Length30.0 inches
Outside Diameter6.0 inches
Inside Diameter3.5 inches
Filter MaterialTeflon
SealBuna-N
End CapsCorrosion Resistant Steel
Center TubeCorrosion Resistant Steel


Performance Features:

• Clean and reusable

• pH ranges from 5 to 9

• Excellent water resistance

• Flow: From outside to inside

• Designed for balanced flow through cartridges

• Recommended maximum operating temperature: 240°F (115 ° C)


Structrue Materials:

• Buna-N washers

• Teflon-coated screens

• Treated metal parts provide protection against corrosion

• Additional washers, adhesives and metal materials may be supplied upon request


Filter Material:

We make ST630FE-5 oil separator cartridge uses high-performance Teflon filter material. Moisture resistance: the surface of Teflon does not stick to water and oil. If there is dirt, can be removed by simply wiping it. Temperature resistance: does not become brittle at freezing temperatures and does not melt at high temperatures. Wear resistance: smooth surface has a very low coefficient of friction. Corrosion resistance: almost immune to any kind of chemical corrosion.

ST630FE-5 Facet Teflon material separator cartridge


Test Standards:

Before delivery, Our manufactured ST630FE-5 oil separator filter cartridge will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Customized Processing:

We corporation are excellent separator cartridge filter manufacturer

Parker & Velcon

PECO & Facet

Faudi

Pall

Other types are available on request

Related Specification Filters

P/N.Synthetic P/N.Teflon O.D.(mm) Length(mm) I.D.(mm) I.D.Mounting end(mm)
SS318FA-5 ST318FA-5 76 460 13 51
SS324FA-5 ST324FA-5 76 610 13 51
SS412FC-5 ST412FC-5 105 290 48 48
SS415FB-5 ST415FB-5 114 380 13 89
SS417FB-5 ST417FB-5 114 430 13 89
SS422FC-5 ST422FC-5 105 570 48 48
SS424FB-5 ST424FB-5 114 610 13 89
SS430FB-5 ST430FB-5 114 760 13 89
SS432FC-5 ST432FC-5 105 800 48 48
SS436FB-5 ST436FB-5 114 910 13 89
SS609FB-5 ST609FB-5 152 230 13 89
SS609FF-5 ST609FF-5 152 230 13 114
SS611FD-5 ST611FD-5 152 290 89 89
SS612FB-5 ST612FB-5 152 310 13 89
SS614FD-5 ST614FD-5 152 370 89 89
SS616FD-5 ST616FD-5 152 410 89 89
SS618FB-5 ST618FB-5 152 460 13 89
SS622FD-5 ST622FD-5 152 560 89 89
SS624FB-5 ST624FB-5 152 610 13 89
SS624FE-5 ST624FE-5 152 610 13 105
SS624FF-5 ST624FF-5 152 610 13 114
SS629FD-5 ST629FD-5 152 730 89 89
SS630FB-5 ST630FB-5 152 760 13 89
SS630FD-5 ST630FD-5 152 760 89 89
SS630FE-5 ST630FE-5 152 760 13 105
SS630FF-5 ST630FF-5 152 760 13 114
SS633FB-5 ST633FB-5 152 840 13 89
SS633FD-5 ST633FD-5 152 840 89 89
SS636FB-5 ST636FB-5 152 910 13 89
SS636FD-5 ST636FD-5 152 910 89 89
SS636FE-5 ST636FE-5 152 910 13 105
SS636FF-5 ST636FF-5 152 910 13 114
SS638FD-5 ST638FD-5 152 965 89 89
SS640FD-5 ST640FD-5 152 1020 89 89
SS640FE-5 ST640FE-5 152 1020 13 105
SS640FF-5 ST640FF-5 152 1020 13 114
SS643FB-5 ST643FB-5 152 1090 13 89
SS643FD-5 ST643FD-5 152 1090 89 89
SS644FB-5 ST644FB-5 152 1120 13 89
SS644FD-5 ST644FD-5 152 1120 89 89
SS644FE-5 ST644FE-5 152 1120 13 105
SS644FF-5 ST644FF-5 152 1120 13 114
SS648FD-5 ST648FD-5 152 1220 89 89
SS648FF-5 ST648FF-5 152 1220 13 114
SS656FB-5 ST656FB-5 152 1420 13 89
SS656FF-5 ST656FF-5 152 1420 13 114
If you have no standard filter code numbersplease send us your filters specifications or sampleswe can customize as your requests.
