LCS4HEHH Oil and Gas Industrial Liquid and Gas Coalescer

LCS4HEHH pall Liquid/Gas Coaleser is used to remove liquids and solids from high flow gas streams that contain high concent rations of liquids. LCS4HEHH manufacturing material uses high-quality filter cotton core. Reduce mechanical losses and provide a good working environment for the machinery.


General specifications

Quality:

Brand:DKFILTER

Model: LCS4HEHH

Filter Type: Liquid Gas Coaleser Filter Cartridge

Length: 20.5 inches

Outside Diameter: 3.75 inches

Inside Diameter: 2.25 inches

Separation level: ≤15ppm free water content (via AquaGlo detection)

O-Ring Material: Fluoropolymer Elastomer

Center Tube: Stainless Steel

End Cap: Epoxy Potted Stainless Steel

Series: LCS4HEHH, LCS4HEAH, LCS2HEHH, LCS2HEAH, LCS06HEHH more

LCS4HEHH Introduction:

LCS4HEHH pall liquid gas coaleser filter is used to remove liquids and solids from high flow gas streams that contain high concent rations of liquids.Its media can process several times more liquid per unit area of media than conventional media and often eliminates the need for upstream bulk separation equipment such as mist eliminators and vane separators.


Performance Parameters:

ItemValue
Length20.5 inches
Inside Diameter2.25 inches
Outside Diameter3.75 inches
Max. Operating Temp150 °F
Change Out Pressure Drop1.03 bar
Max. Differential Pressure Rating3.5 bar
O-Ring MaterialFluoropolymer Elastomer
End CapsCorrosion Resistant Steel
Center TubeCorrosion Resistant Stee
Filter MaterialPhenolic Impregnated Seamless Fiberglass


Structure Materials:

• Stainless steel metal support

• Polymeric outer drainage layer to prevent liquid reentrainment

• Resin bonded glass fiber coalescer media designed in a pack to handle large quantities of liquid

• Oleophobic/hydrophobic treatment to improve liquid drainage,protect from liquid slugs and minimize saturated pressure drop

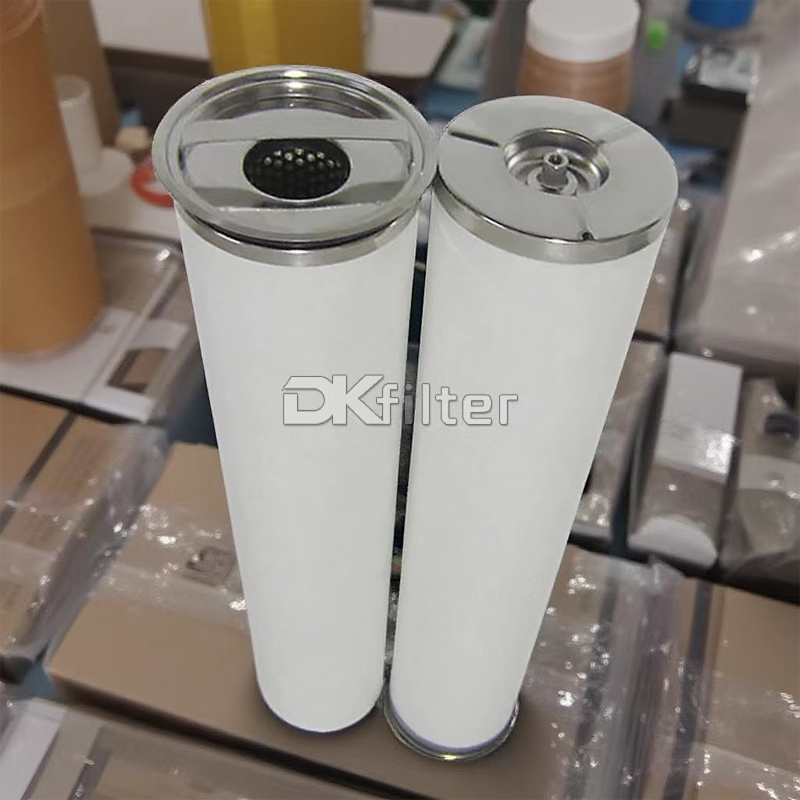

LCS4HEHH Oil and Gas Industrial Liquid and Gas Coalescer


Filter Material:

We make LCS4HEHH coalescing filters use a single unit structure to reduce the number of gaskets and improve overall reliability. LCS4HEHH coalescers cartridge filter have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use.

• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.

• All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.

• The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.

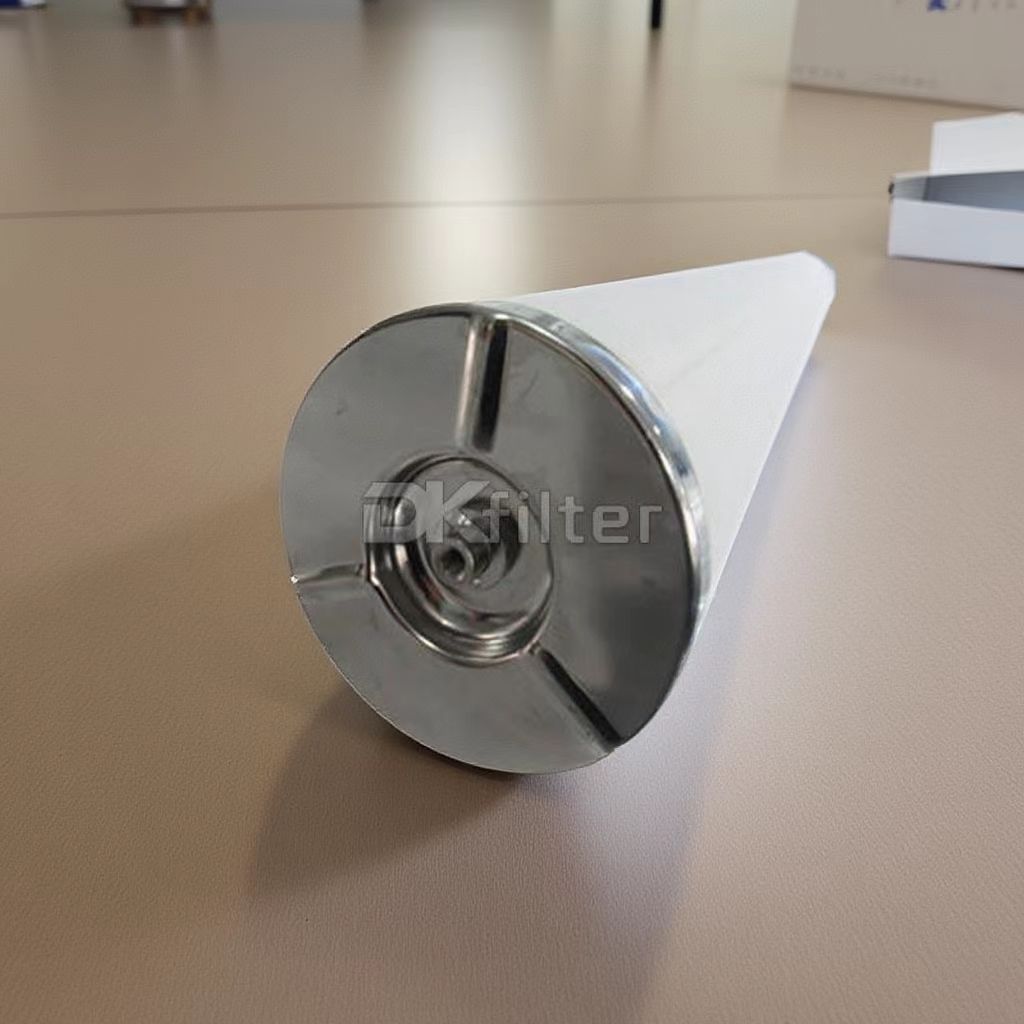

LCS4HEHH Oil and Gas Industrial Liquid and Gas Coalescer


Application:

• Natural gas distribution:M&R Station

• Refinery:compressor suction and gas

• Gas transmission:transmission station entry and gas

• Natural gas production and collection:compressor suction

• Natural gas processing:treatment and dewatering tower inlet,gas,instrumentation


Work principle:

LCS4HEHH high-efficiency coalescers merge small droplets of liquid into larger ones as the fluid stream passes through several layers of filter media,each with progressively larger pores.

As droplets compete for the open pores,they coalesce forming larger droplets.These larger droplets are easier to separate from the continuous phase fluid.

The LCS4HEHH coalescer size and type are determined by numerous factors:physical properties of the fluid,flow rate,process conditions and chemical compatibility with process fluids and additives.

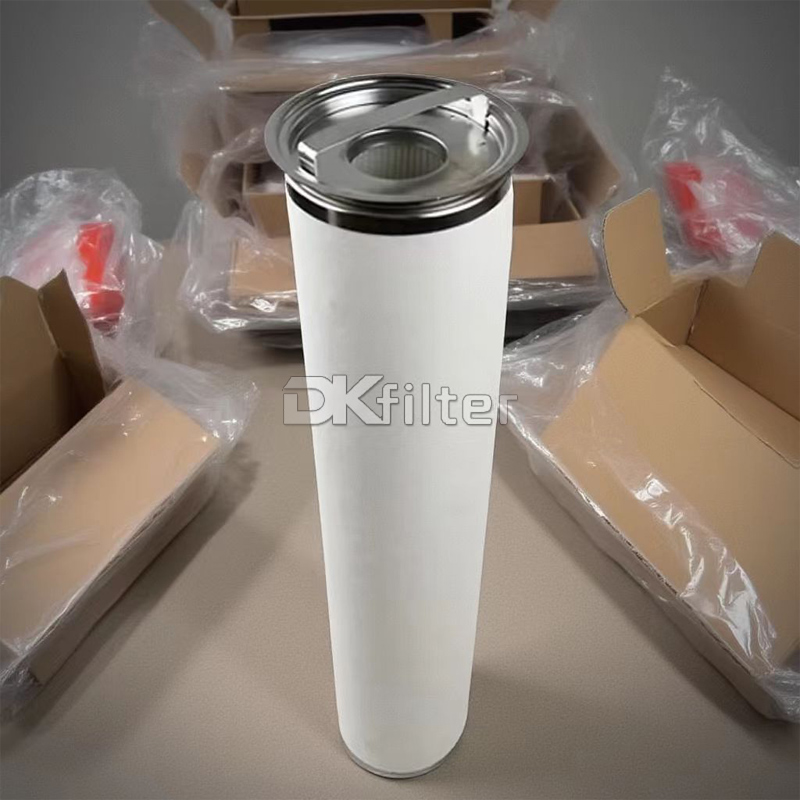

LCS4HEHH Oil and Gas Industrial Liquid and Gas Coalescer


Test Standards:

Before delivery, Our manufactured LCS4HEHH high-efficiency coalescer filter cartridge will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Customized Processing:

We corporation are excellent coalescer cartridge filter manufacturer

Parker & Velcon

PECO & Facet

Faudi

Pall

Other types are available on request


Related Specification Filters

More other Pall Liquid/Gas Coaleser hot sales filters:

LCS2B1AH LCS4B1AH LCS2H1AH LCS4H1AH LCS2H2HH LCS4H2HH
LSS2F2H LSS2F1H LCS2H1AH LCS2H1AH1 LCS2H1AH11 LCS4H1AH
LCS4H1AH1 LCS4H1AH11 LCS2H2HH LCS2H2HH1 LCS2H2HH11 LCS4HEHH
LCS2HEHH LCS06HEHH LCS4HEAH LCS2HEAH LCS06HEAH LCS4H2HH
LCS4H2HH1 LCS4H2HH11 LCS4HEHH LCS4HEAH LCS2HEAH LCS06HEHH
LCS06HEAH LCS2H1AH20 LCS4H1AH40 LSS2F1H LCS1FPS100 LCS4FPS200
LCS1FPS400 LCS1FPS100 LCS2B1AH20 LCS4B1AH40 LSS2F2H20 LSS2F1H20
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
