FG-536 FACET PECO Coalescer Filter Cartridge Replacement

FG-536 facet PECO coalescer filter cartridge is good for removing particles and droplets from the air/airflow. It can also be used in dry gas filter containers when contaminants are shear sensitive (sludge wax gel asphaltene etc.). Filter coalescers can significantly affect compressor performance and operating costs.


General specifications

Quality:

Brand: DKFILTER

Model: FG-536

Type: Coalescing Filter Cartridge

Filter Material: Phenolic impregnated seamless fiberglass

Length: 36.0 inches

Outside Diameter: 5.5 inches

Inside Diameter: 4.18 inches

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Series: FG-12, FG-24, FG-36, FG-72, FG-312 more

FG-536 Introduction:

FG-536 coalescer filter cartridge is good for removing particles and droplets from the fuels or other fluids to keep them clean and protect the system safe. FG-536 coalescing filter is a device for separating immiscible liquids or liquids fro a gas stream. when using fuels or other fluids,it is essential that they are free from particulate contamination and free water.If the fluid does not meet the required cleanliness standards,fouling and corrosion of the equipment downstream may occur,leading to expensive maintenance costs and reduced component.


Performance Parameters:

ItemValue
Length36 inches
Outside Diameter5.5 inches
Inside Diameter4.18 inches
Carton Weight30 pounds
Maximum Pressure Differential75 psi, 5.2 bar
Changeout Pressure Differential15 psi, 1 bar
SealBuna-N
End CapsCorrosion Resistant Steel.....
Center TubeCorrosion Resistant Steel
Filter MaterialPhenolic Impregnated Seamless Fiberglass


Structure Materials:

• Stainless steel metal support

• Polymeric outer drainage layer to prevent liquid reentrainment

• Resin bonded glass fiber coalescer media designed in a pack to handle large quantities of liquid

• Oleophobic/hydrophobic treatment to improve liquid drainage,protect from liquid slugs and minimize saturated pressure drop

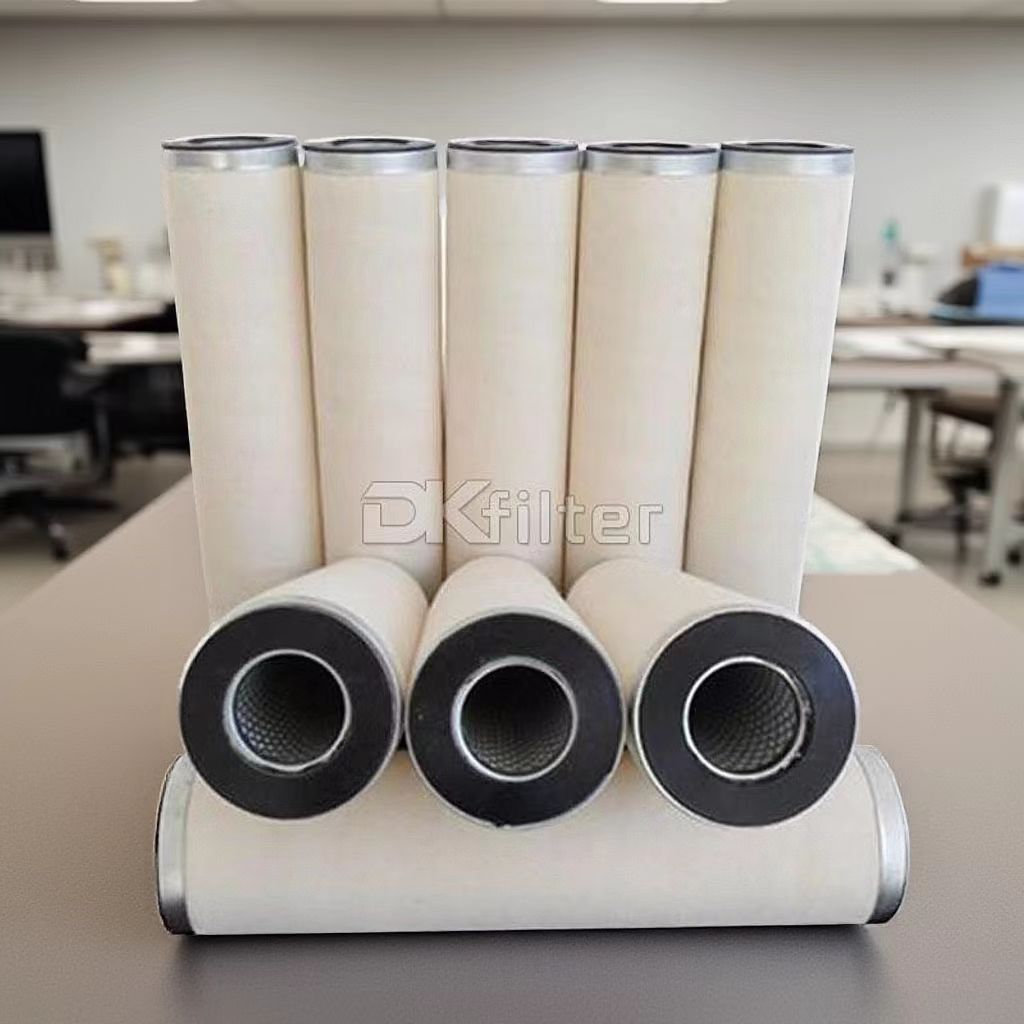

FG-536 FACET PECO Coalescer Filter Cartridge Replacement


Filter Material:

We make FG-536 coalescing filters use a single unit structure to reduce the number of gaskets and improve overall reliability. FG-536 coalescers cartridge filter have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use.

• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.

• All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.

• The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.

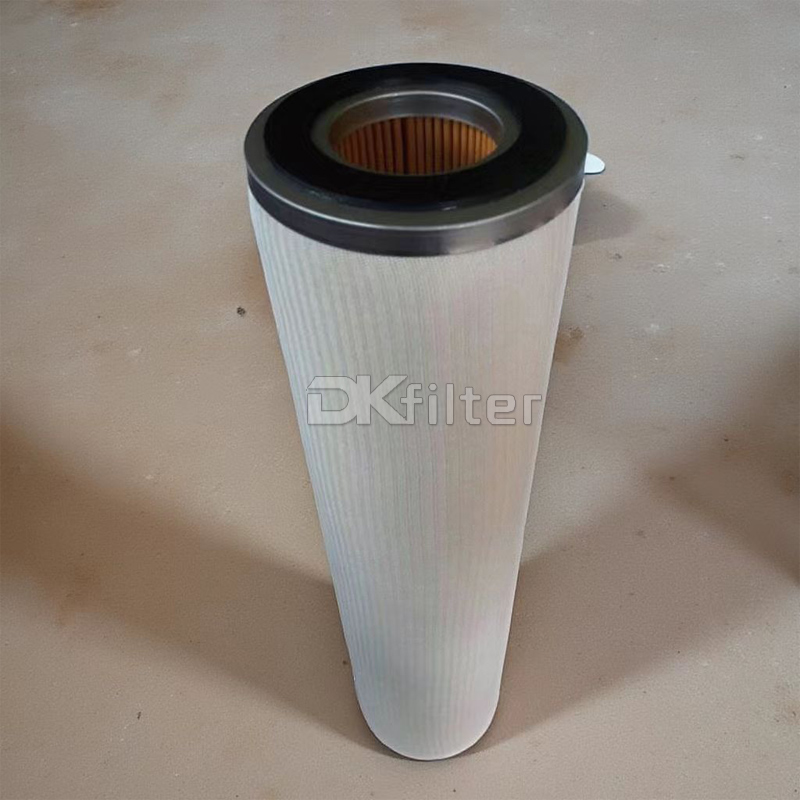

FG-536 FACET PECO Coalescer Filter Cartridge Replacement


Application:

• Natural gas distribution:M&R Station

• Refinery:compressor suction and gas

• Gas transmission:transmission station entry and gas

• Natural gas production and collection:compressor suction

• Natural gas processing:treatment and dewatering tower inlet,gas,instrumentation


FG-536 Work principle:

FG-536 high-efficiency coalescers merge small droplets of liquid into larger ones as the fluid stream passes through several layers of filter media,each with progressively larger pores.

As droplets compete for the open pores,they coalesce forming larger droplets.These larger droplets are easier to separate from the continuous phase fluid.

The FG-536 coalescer size and type are determined by numerous factors:physical properties of the fluid,flow rate,process conditions and chemical compatibility with process fluids and additives.

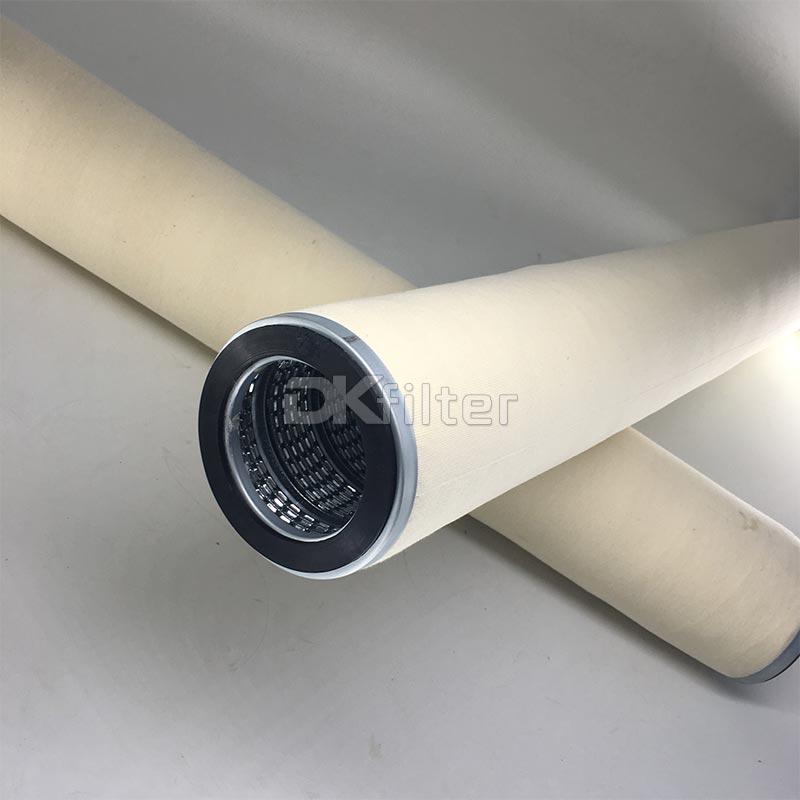

FG-536 FACET PECO Coalescer Filter Cartridge Replacement


Test Standards:

Before delivery, Our manufactured FG-536 high-efficiency coalescer filter cartridge will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Customized Processing:

We corporation are excellent coalescer cartridge filter manufacturer

Parker & Velcon

PECO & Facet

Faudi

Pall

Other types are available on request

Related Specification Filters

Model O.D.[in.] I.D.[in.] Length[in.]
FG-12 3.3 2.1 12
FG-24 3.3 2.1 24
FG-36 3.3 2.1 36
FG-72 3.3 2.1 72
FG-312 4.5 3.24 12
FG-324 4.5 3.24 24
FG-336 4.5 3.24 36
FG-372 4.5 3.24 72
FG-536 5.5 4.18 36
FG-572 5.5 4.18 72
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
