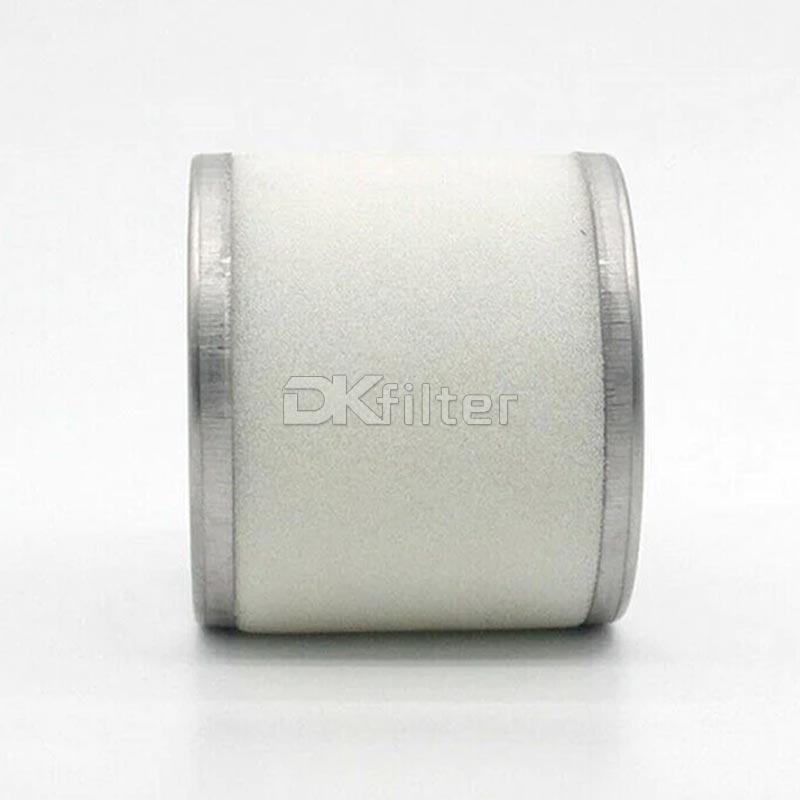

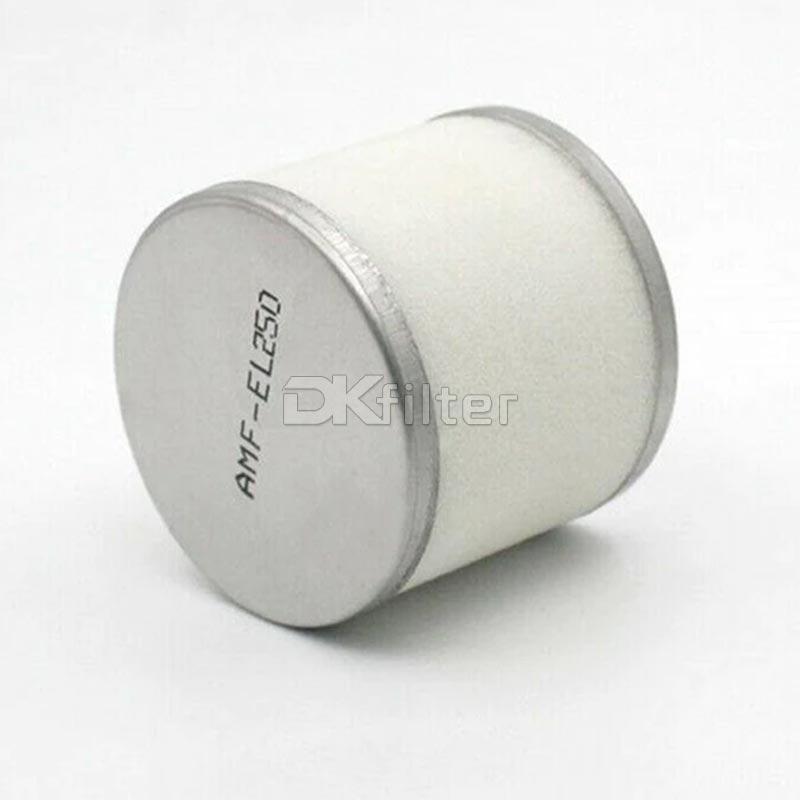

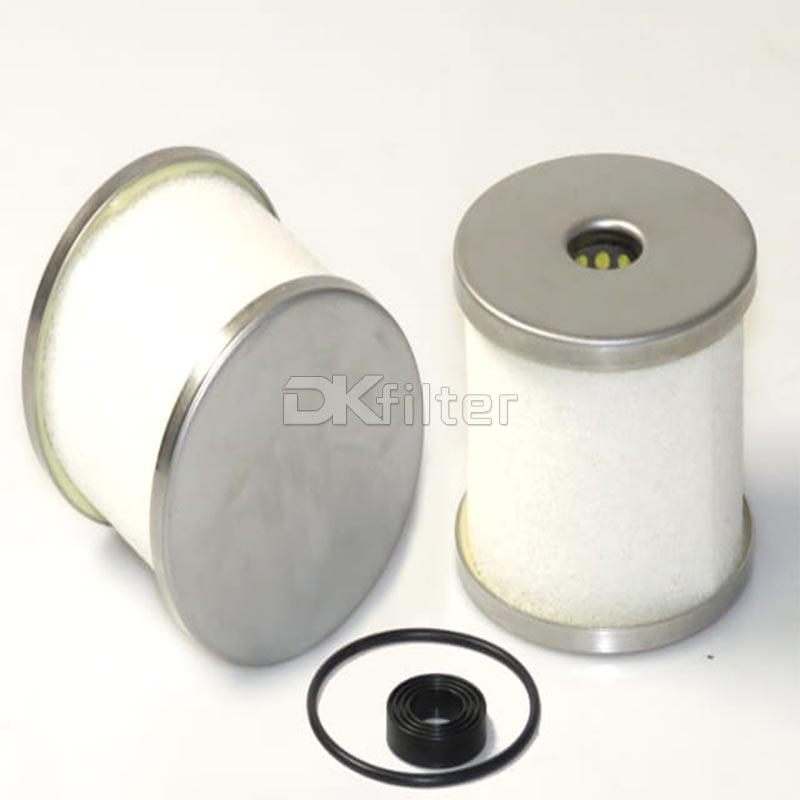

AMH-EL250 SMC micro mist separator Filter Replacement

AMH-EL250 AMH series is a combination of high-precision micro oil mist separator and pre-filter. AMH-EL250 can separate and eliminate aerosol oil mist in compressed air, and remove carbon or dust in compressed air. Greater than 0.01 micron. AMH-EL250 filter cartridge is good for removing particles and droplets from the air/airflow


General specifications

Quality:

Brand: DKFILTER

Model: AMH-EL250

Seal: Viton

Filter material: Fiberglass

Length:12.0 inches

Outer Diameter: 8.0 inches

End Caps:Corrosion Resistant Steel

Center Tube:Corrosion Resistant Steel

Series: AMH-EL850, AFF-EL250, AMD-EL250, AMF-EL250 more

AMH-EL250 Brief Introduction:

The AMH-EL250 AMH series is a combination of high-precision micro-oil mist separator and pre-filter, which can separate and eliminate aerosol oil mist in compressed air, and remove carbon or dust in compressed air. Greater than 0.01 micron.

DKFILTER manufactures replacement AMH-EL250 SMC compressed air internal filter elements for installation in AMH250 micro oil mist separators.

 AMH-EL250 SMC micro mist separator Filter Replacement

More AMH Series:

AMH-EL150

AMH-EL250

AMH-EL350

AMH-EL450

AMH-EL550

AMH-EL650


AMH-EL250 Features:

Air permeability—the filter element adopts American fiber filter material with strong hydrophobicity and oil repellency,and at the same time adopts a framework with good permeability and high strength to reduce the resistance caused by filtration.

High Efficiency-The filter element adopts German fine open-pore sponge,which can effectively prevent oil and water from being entrained by high-speed airflow,so that the filtered fine oil droplets gather at the lower end of the filter element sponge and drain to the bottom of the filter container.

Airtightness—the joint between the filter element and the filter housing adopts a reliable sealing ring to ensure that the airflow is not short-circuited and prevent impurities from directly entering the downstream without passing through the filter element.

Anti-corrosion - the filter element adopts anti-corrosion reinforced nylon end cover and anti-corrosion filter frame,which can be used in harsh working conditions.


AMH-EL250 Performance Features:

• Tested and qualified

• Ultra-fine solids removal

• Maximum water coalescence

• Screw base or open-end configuration

• Balanced cartridge flow characteristics

• Withstands in excess of 75 psi differential pressure

• Recommended maximum operating temperature: 240°F (115oC)

• Multi-layered media for increased solids holding capacity


AMH-EL250 Structrue Materials:

We make AMH-EL250 air compressed filters use a single unit structure to reduce the number of gaskets and improve overall reliability. AMH-EL250 cartridge filter have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use.

• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.

• All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.

• The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.

AMH-EL250 SMC micro mist separator Filter Replacement


DKFILTER can provide filter elements compatible with various foreign and domestic brands of compressed air filter elements,including:

Hankison

Dominck Hunter

Ulrafiter

Hiross

SMC

Orion

Zander

Bea

Parker

Atlas Copco

Technolab

JM

MANN

Other types are available on request


Related Specification Filters

AFF-EL2B AM-EL150 AME-EL150 AMD-EL150 AMF-EL150 AMG-EL150
AFF-EL4B AM-EL250 AME-EL250 AMD-EL250 AMF-EL250 AMG-EL250
AFF-EL8B AM-EL350 AME-EL350 AMD-EL350 AMF-EL350 AMG-EL350
AFF-EL11B AM-EL450 AME-EL450 AMD-EL450 AMF-EL450 AMG-EL450
AFF-EL22B AM-EL550 AME-EL550 AMD-EL550 AMF-EL550 AMG-EL550
AFF-EL37B AM-EL650 AME-EL650 AMD-EL650 AMF-EL650 AMG-EL650
AFF-EL75B AM-EL850 AME-EL850 AMD-EL850 AMF-EL850 AMG-EL850
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
