Introduction:

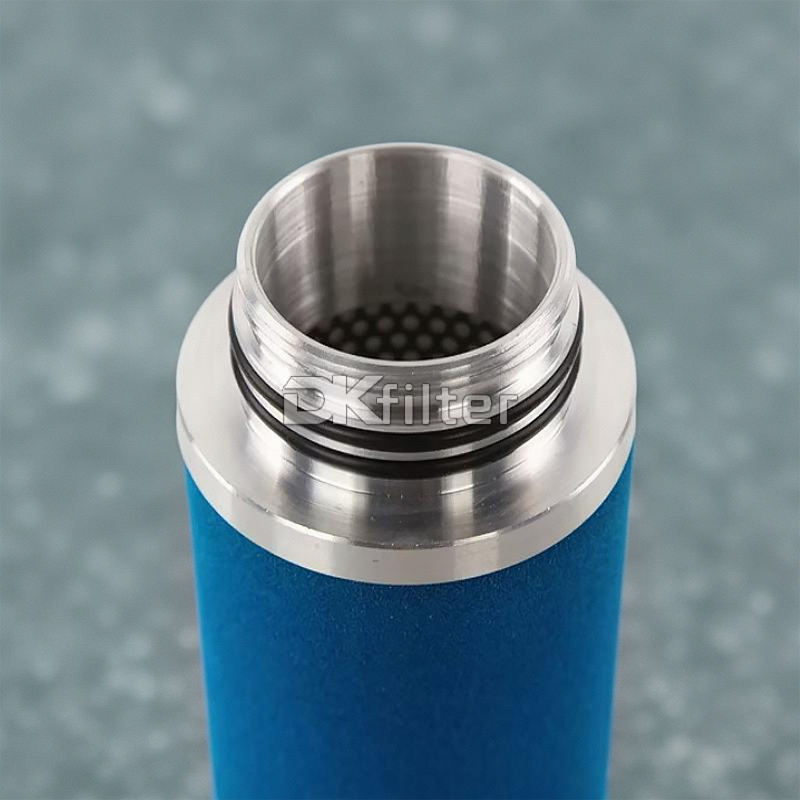

DKFILTER offers different 1C123696 series replacement filter elements for most compressed air applications.As compressed air filter elements,1C123696 is made with the finest pleating technology and aluminum end caps.Unique to the industry with their extremely low differential pressure.
1C123696 donaldson compressor air filter use advanced pleating techniques mixed with nano technology,makes our high performance filters much more effective than a standard filter,as the pleating provides a 450% larger filtration surface per square inch.The special pleating also secures a much larger particle retention capacity.The benefits of using this type of filter is low differential pressure,up to 70% lower energy costs and improved efficiency of filtration.
More Filter Model:
1C121556
1C121856
1C121864
1C123672
1C123680
1C125716
1C212988
1C212990
1C213004
1C213006
1C123620
1C123606
Performance Characteristic:
| Item | Value |
|---|
| Length | 30.55 inches |
| Outside Diameter | 5.50 inches |
| Element Size | 30/50 |
| Micron Rating | 0.01 um |
| Oily Aerosol Retention Rate | 99.7% |
| Maximum Operating Temperature | 180℃ |
| O-ring Material | Viton® |
| Filter Media Type | Borosilicate |
| Recommended Replacement Interval | 8000 Hour |
| End Cap Material | Epoxy Potted Stainless Steel 304 |
| Hardware Material | Epoxy Potted Stainless Steel 304 |
Filter Material:

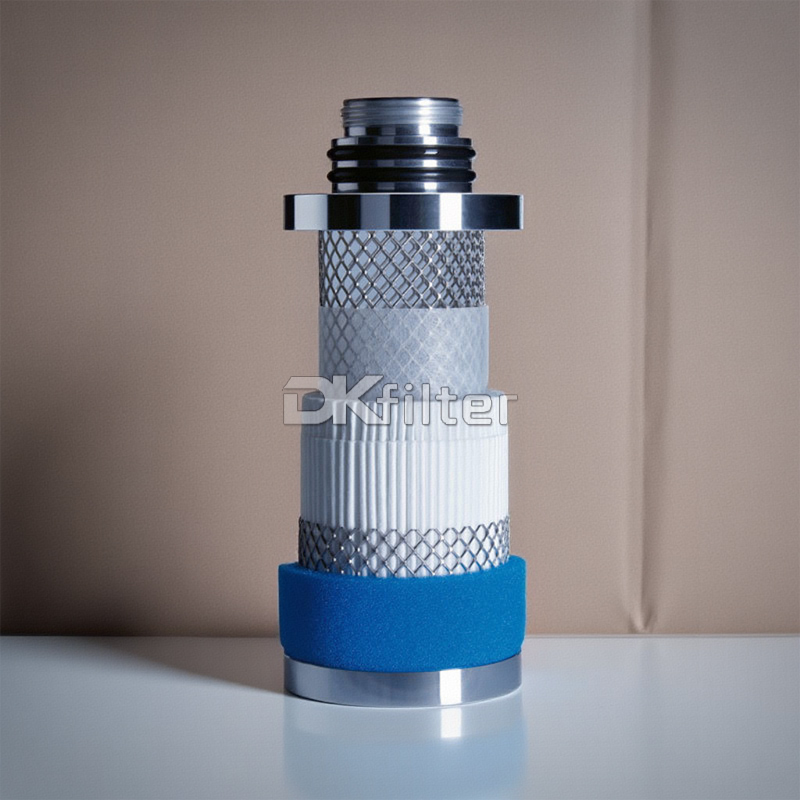

We make 1C123696 compressor air filter use a single unit structure to reduce the number of gaskets and improve overall reliability. 1C123696 coalescers cartridge filter have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use.
• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.
• All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.
• The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.
Applications:
• Chemical and petrochemical industry
• Pharmaceutical industry
• Food & beverage
• Plastic industry
• Process filtration
• Instrumentation air
Test Standards:
Before delivery, Our manufactured 1C123696 high-efficiency air oil filter cartridge will be tested and follow the standards:
ISO 2941 Collapse & Burst Resistant
ISO 2942 Fabrication & Integrity Test
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing
Customized Processing:
We corporation are excellent compressor air oil cartridge filter manufacturer
Parker & Velcon
PECO & Facet
Faudi
Pall
Other types are available on request
1C123696 Donaldson Compressor Air Filter Cartridge Element Replacement
