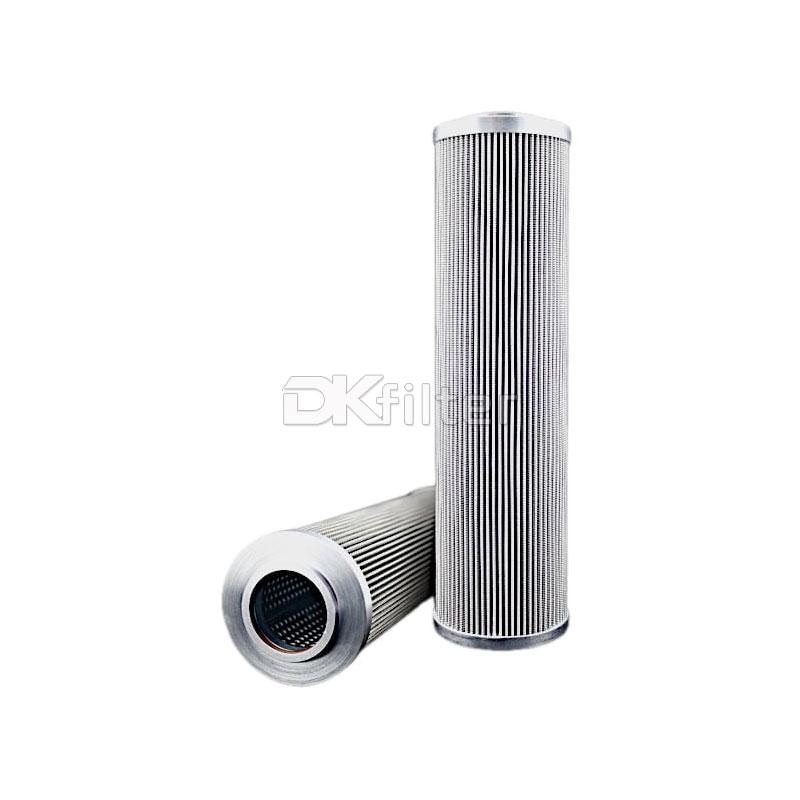

HP3202A05HA MP-FILTRI Replacement High Pressure Filter

HP3202A05AH high pressure hydraulic oil filter can be used for filtering hydraulic fluid,widely use for filtration of hydroethylene glycol,diesel,machining fluids,lubricating oil,coolants,gasoline, process fluids,turbine and compressor lube oils.


General specifications

Quality:

Brand: DKFILTER

Model: HP3202A05AH

Filter Type: Hydraulic Oil Filter Element

Length: 9.18 inches

Outside Diameter: 3.11 inches

Filter Material: Fiberglass、Wire Mesh

Seal: Viton (Fluorocarbon)

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Series: HP3204A06AH, HP3204A10AH, HP3204P25NA, HP3203P25NA more

Introduction:

HP3202A05AH hydraulic oil filter is used for filtering hydraulic fluid,widely use for filtration of hydroethylene glycol,diesel,machining fluids,lubricating oil,coolants,gasoline,belong to hydraulic oil filter element. We makes HP3202A05AH oil filter coalesce replacement with 5μm fiberglass material,playing an extremely important role in cleaning oil of all kinds of machinery and ensuring its smooth operation.Therefore,high quality control and excellent filtration performance are sought in components that are critical to dust control.


Performance parameters:

ItemValue
Length9.18 inches
Outside Diameter3.11 inches
Filtration accuracy5 μm
Operating pressure....3000 psid
Filter MaterialFiberglass、Wire Mesh
SealViton (Fluorocarbon)
End CapCorrosion Resistant Steel.....
Center TubeCorrosion Resistant Steel


Filter Material:

We make HP3202A05AH hydraulic oil filter use a single unit structure to reduce the number of gaskets and improve overall reliability. HP3202A05AH oil filter cartridge have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use.

• All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.

• The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.

• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.

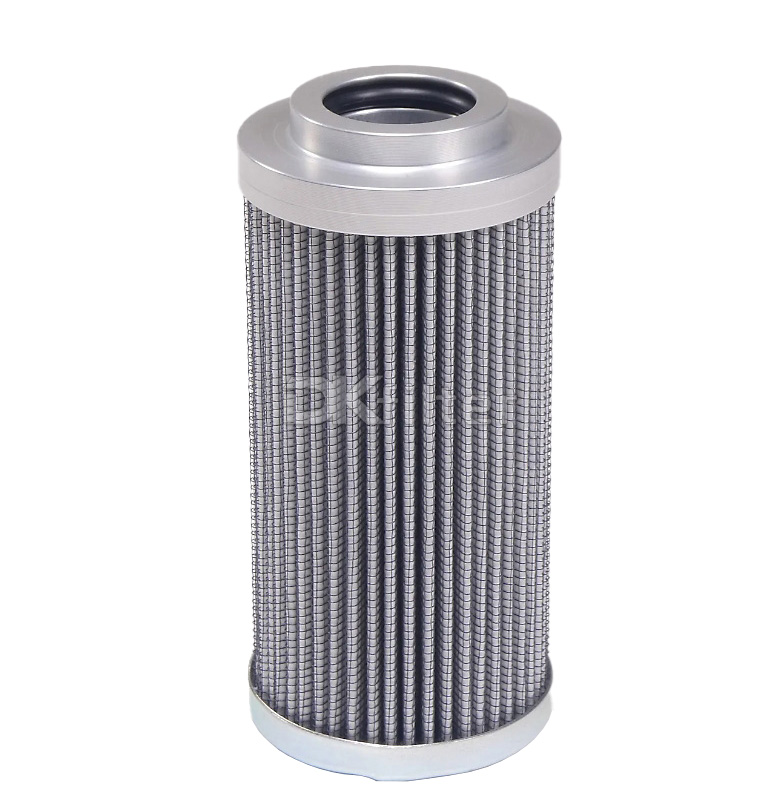

HP3202A05HA MP-FILTRI Replacement High Pressure Filter



Filter Features:

HP3202A05AH oil filter is a high pressure pipeline filter element,the end caps and center tube are used corrosion resistant steel and all the filter can bear 3000 psid pressure with high performance,increasing efficiency,keeping fluids clean,and ensures smoother operation. We make HP3202A05AH oil hydraulic filter is Beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter.

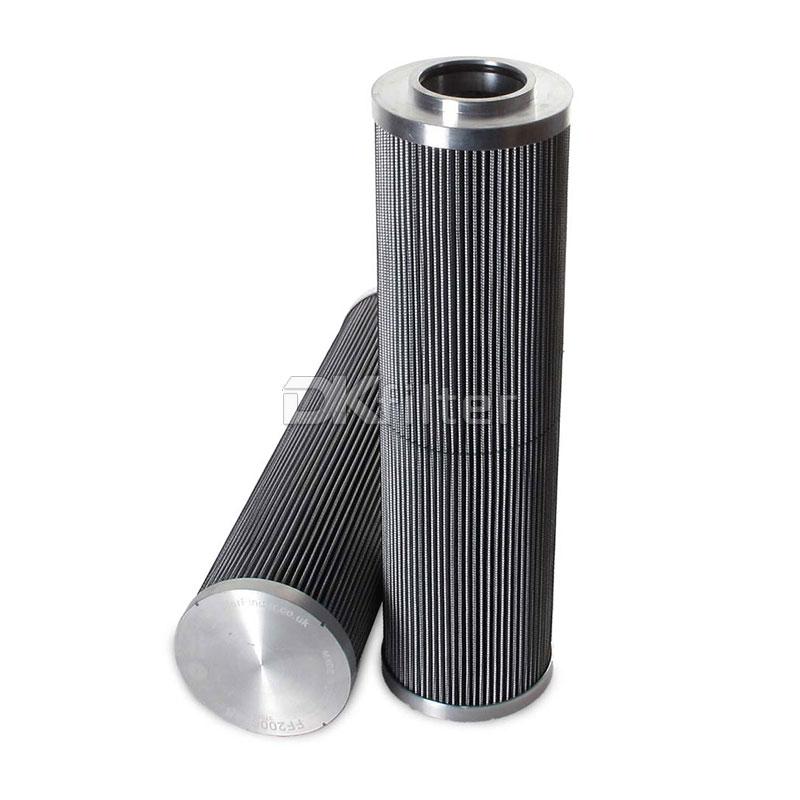

HP3202A05HA MP-FILTRI Replacement High Pressure Filter



Filter Wash:

The HP3202A05AH hydraulic oil filter is stainless steel mesh element can be cleaned again after use,it can save you much cost.However,only a certain cleaning level (percentage) can be achieved.For best results,components should be cleaned using professional equipment.But cleaning results are unpredictable.It depends a lot on various conditions.

HP3202A05HA MP-FILTRI Replacement High Pressure Filter

(1) Dip the filter element in light oil and rotate thoroughly.

(2) Clean off dirt by scrubbing the element with a brush parallel to the pleats.

(3) Clean off dirt with an air spray gun.

(4) Rinse well.

(5) Dry using an air spray gun.

Notes:

It must be noted that during each cleaning process,approx. 80-90% of the initial filter area can be recovered each time,that is,after 4-5 cleaning cycles,the result (cleaning cost and service life) may not be economical.We will be happy to send you the operating manual with further information on cleaning.


Application:

HP3202A05AH oil filtration element can be used for many types of industrial fluids:

filtering hydraulic fluid

diesel

machining fluids

lubricating oil

coolants

gasoline

process fluids

turbine and compressor lube oils

synthetic lubricants etc.


Test Standards:

Before delivery, Our manufactured HP3202A05AH hydraulic oil filter will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Related Specification Filters

More Hot Sales Filters

HP3203M60NA HP3204A06AH HP3204M90NA HP3204M90NA HP3203M60NV HP3204A06VN
HP3204M90NV M1A06NV HP3203M90AN HP3204A06HA HP3204P03AN M1A06AN
HP3203M90VN HP3204A06NA HP3204P03VN M1A06VN HP3203M90NA HP3204A06HV
HP3204P03NA M1A10HA HP3203M90NV HP3204A06NV HP3204P03NV M1A10HV
HP3203P03AN HP3204A10AH HP3204P10AN M1A10AH HP3203P03VN HP3204A10AN
HP3204P10VN M1A10VH HP3203P03NA HP3204A10VH HP3204P10NA M1A10NA
HP3203P03NV HP3204A10VN HP3204P10NV M1A10NV HP3203P10AN HP3204A10HA
HP3204P25AN M1A10AN HP3203P10VN HP3204A10NA HP3204P25VN M1A10VN
HP3203P10NA HP3204A10HV HP3204P25NA M1A25HA HP3203P10NV HP3204A10NV
HP3204P25NV M1A25HV HP3203P25AN HP3204A25AH HP3204T10AH M1A25AH
HP3203P25VN HP3204A25AN HP3204T10VH M1A25VH HP3203P25NA HP3204A25VH
HP3204T10HA M1A25NA HP3203P25NV HP3204A25VN HP3204T10HV M1A25NV
If you have no standard filter code numbers please send us your filters specifications or samples we can customize as your requests.
