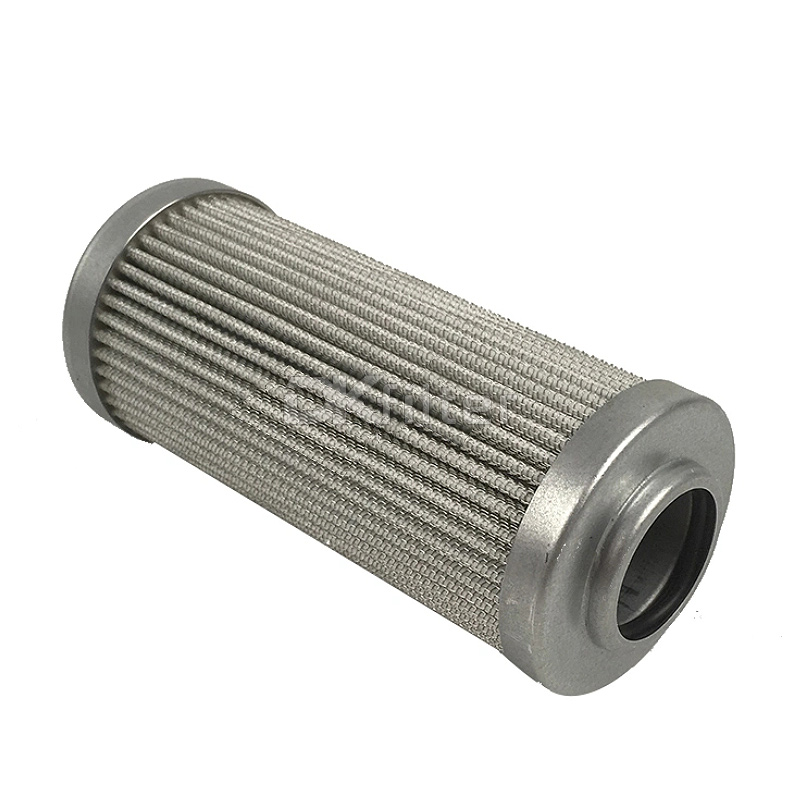

SE-090-G-03-B/4 STAUFF 3µm Fiberglass replacement Filter

SE-090-G-03-B/4 stauff oil filter is used for pressure filters replacement. DKFILTER filter range offers a large selection of pressure filters,suction filters,return-line filter,sspin-on filters as well as replacement filter elements for hydraulic oils and lubricating oils.


General specifications

Quality:

Brand: DKFILTER

Model: SE-090-G-03-B/4

Filter Type: Hydraulic Oil Filter Element

Length: 6.45 inches

Outside Diameter: 3.56 inches

Inner Diameter: 1.90 inches

Seal: Buna (Nitrile)

Filter material: Fiberglass、Wire Mesh

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Series: SD-015-E-10-B,SE-008-B-25-B,SL-010-B-100-B,SM-181-G-10-B more

Introduction:

SE-090-G-03-B/4 is hydraulic oil filter elements and used for pressure filters replacement. It plays an extremely important role in cleaning oil of all kinds of machinery and ensuring its smooth operation.Therefore,high quality control and excellent filtration performance are sought in components that are critical to dust control.SE-090-G-03-B/4 hydraulic oil filter is a high pressure pipeline filter element with high performance,increasing efficiency,keeping fluids clean,and ensures smoother operation.


Performance Parameters:

ItemValue
Length6.45 inches
Inner Diameter3.56 inches
Outside Diameter1.90 inches
Temperature Range-30 - +100°C
Collapse Pressure....210 bar
Filter MaterialWire Mesh、Fiberglass
Seal MaterialBuna (Nitrile)
End CapCorrosion Resistant Steel.....
Center TubeCorrosion Resistant Steel


Filter Material:

We make SE-090-G-03-B/4 hydraulic pipeline oil filter is engineered to ensure your hydraulic system operates smoothly,offering a versatile solution for various applications.It’s a high pressure pipeline filter element,the end caps and center tube are used corrosion resistant steel and all the filters can bear 3000 psid pressure with high performance,increasing efficiency,keeping fluids clean,ensuring smoother operation.

• All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.

• The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.

• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.

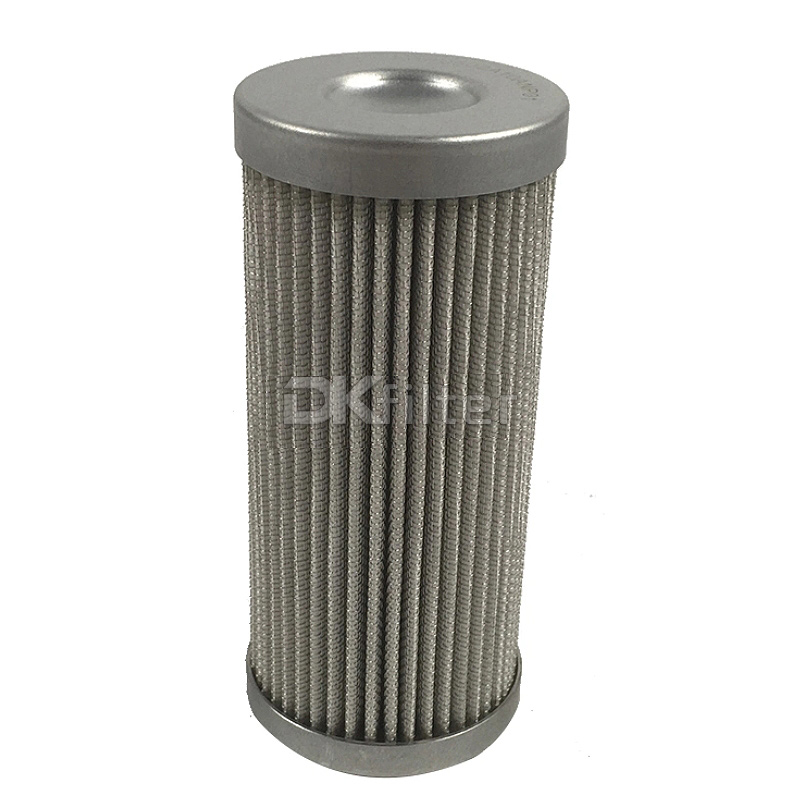

SE-090-G-03-B/4 STAUFF 3µm Fiberglass replacement Filter



Filter Feature:

We make SE-090-G-03-B/4 hydraulic oil filter is Beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter.

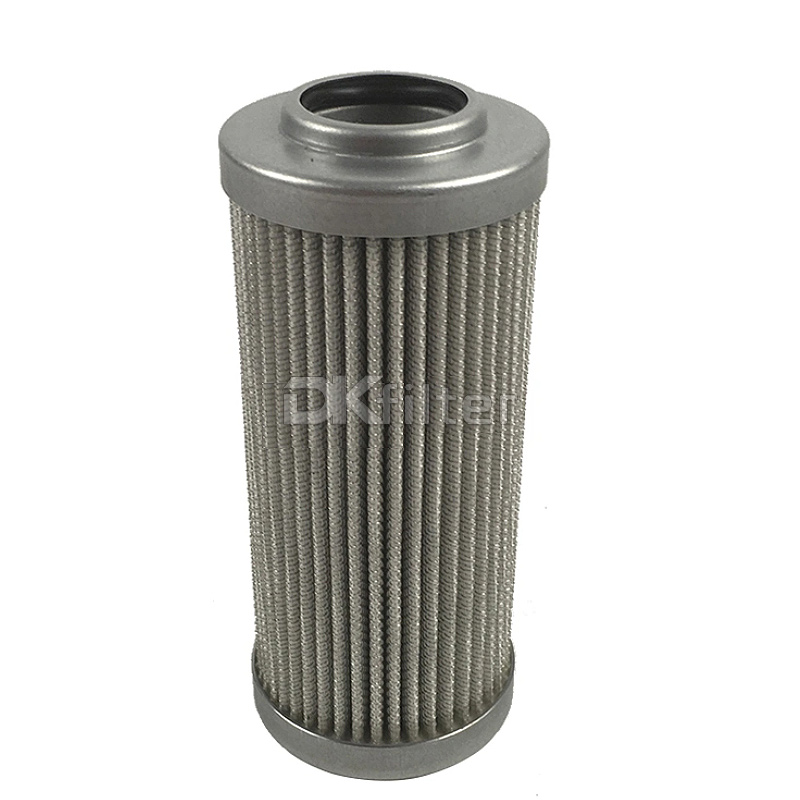

SE-090-G-03-B/4 STAUFF 3µm Fiberglass replacement Filter



Filter Wash:

The SE-090-G-03-B/4 hydraulic oil filter is stainless steel mesh element can be cleaned again after use,it can save you much cost.However,only a certain cleaning level (percentage) can be achieved.For best results,components should be cleaned using professional equipment.But cleaning results are unpredictable.It depends a lot on various conditions.

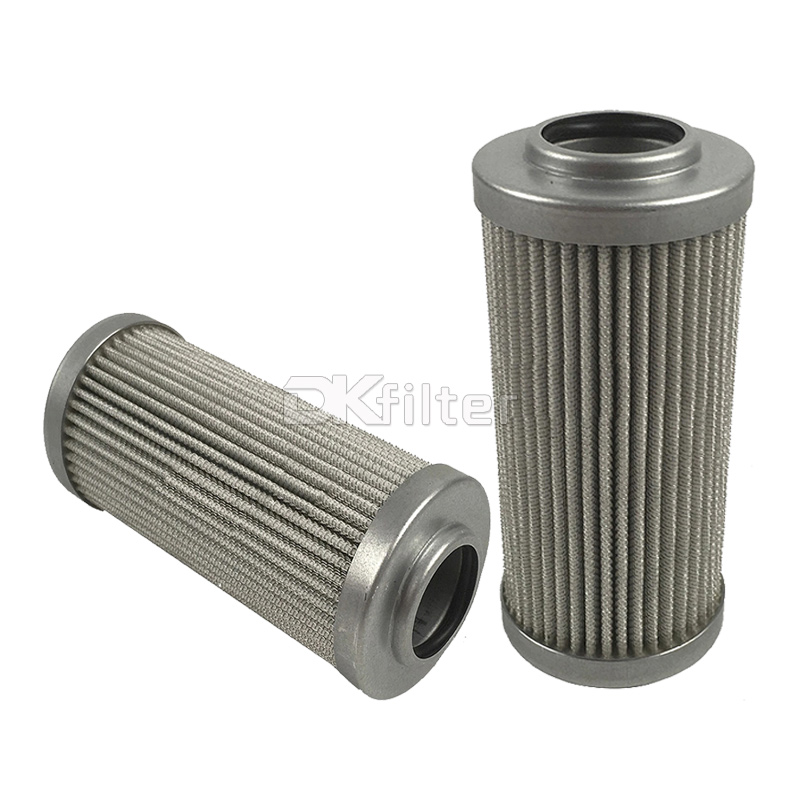

SE-090-G-03-B/4 STAUFF 3µm Fiberglass replacement Filter

(1) Dip the filter element in light oil and rotate thoroughly.

(2) Clean off dirt by scrubbing the element with a brush parallel to the pleats.

(3) Clean off dirt with an air spray gun.

(4) Rinse well.

(5) Dry using an air spray gun.

Notes:

It must be noted that during each cleaning process,approx. 80-90% of the initial filter area can be recovered each time,that is,after 4-5 cleaning cycles,the result (cleaning cost and service life) may not be economical.We will be happy to send you the operating manual with further information on cleaning.


Customized Processing:

We corporation are excellent hydraulic oil filter manufacturer

Parker & Velcon

PECO & Facet

Faudi

Pall

Other types are available on request


Test Standards:

Before delivery, Our manufactured SE-090-G-03-B/4 hydraulic oil filter cartridge will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Related Specification Filters

Other STAUFF hot sales filters

AD030B40B AD033B40B LS003A05B LS005A05B LS008A05B LS014A05B LS020A05B
LS035A05B LL045B100B LL050B10B LL080B100B LL080B10B LL090L03B LL100B100B
LL155B100B LL160B25B LL160E10B RS003A05B RS005A05B RS008A05B RS014A05B
RS024A05B RS035A05B RS060A05B RS070A05B RS090A05B RS130A05B RS150A05B
RS160A05B RS200A05B RS250A05B RS370A05B RS400A05B ML070B100B MD025B40B
NL040B100B NL063B100B NL100B100B NL160B100B NL250B100B NL400B100B SA020E10B
SD010E10B SD015E10B SE008B25B SE014B25B SE030B100B SE035B100B SE045B100B
SE070B100B SE090B100B SE125B100B SE160B100B SL003B100B SL005B100B SL010B100B
SL014B100B SL020B100B SL022B100B SL030B100B SL035B100B SL045B100B SL090B100B
SL125B100B SM181G10B SM182G10B SM183G10B SP010E03B SP020E03B SP024E03B
If you have no standard filter code numbers please send us your filters specifications or samples we can customize as your requests.
