SE-070-C-03-B/2 STAUFF 3µm Fiberglass replacement Filter

SE-070-C-03-B/2 stauff oil filter is used for Pressure Filters replacement.DKFILTER oil filter range offers a large selection of pressure filterssuction filtersreturn-line filtersspin-on filters as well as replacement filter elements for hydraulic oils and lubricating oils.


General specifications

Quality:

Brand: DKFILTER

Model: SE-070-C-03-B/2

Filter Type: Hydraulic Oil Filter Element

Length: 7.44 inches

Outside Diameter: 2.36 inches

Inner Diameter: 1.35 inches

Seal: Buna (Nitrile)

Filter material: Fiberglass、Wire Mesh

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Series: SS-012-B-25-B,SP-300-E-03-B,RP-085-E-03-B,NR-100-B-100-B more

Introduction:

SE-070-C-03-B/2 oil filter is used as an alternative to pressure filters.It plays an extremely important role in cleaning the oil of various machinery and ensuring its smooth operation.Therefore,in search of high quality control and outstanding filtration performance, SE-070-C-03-B/2 is a hydraulic oil filter element with high performance,improves efficiency,keeps fluids clean and ensures smoother operation.


Performance Parameters:

ItemValue
Length6.45 inches
Inner Diameter3.56 inches
Outside Diameter1.90 inches
Temperature Range-30 - +100°C
Collapse Pressure....210 bar
Filter MaterialWire Mesh、Fiberglass
Seal MaterialBuna (Nitrile)
End CapCorrosion Resistant Steel.....
Center TubeCorrosion Resistant Steel


Filter Material:

We make SE-070-C-03-B/2 hydraulic oil filter use a single unit structure to reduce the number of gaskets and improve overall reliability. SE-070-C-03-B/2 oil filter cartridge have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use.

• All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.

• The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.

• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.

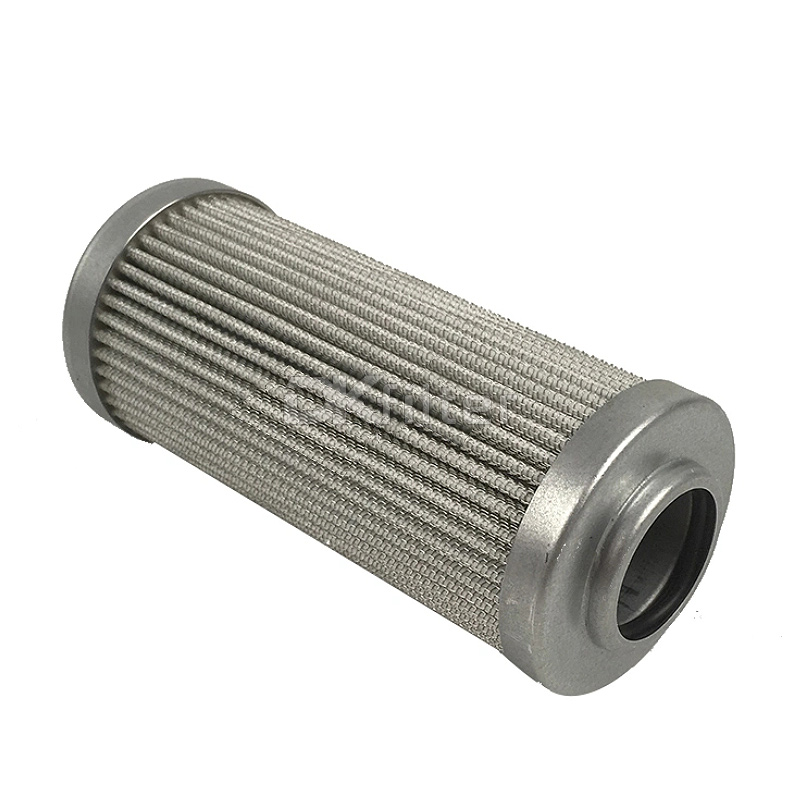

SE-070-C-03-B/2 STAUFF 3µm Fiberglass replacement Filter



Filter Feature:

We make SE-070-C-03-B/2 hydraulic oil pressure filter is Beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter.

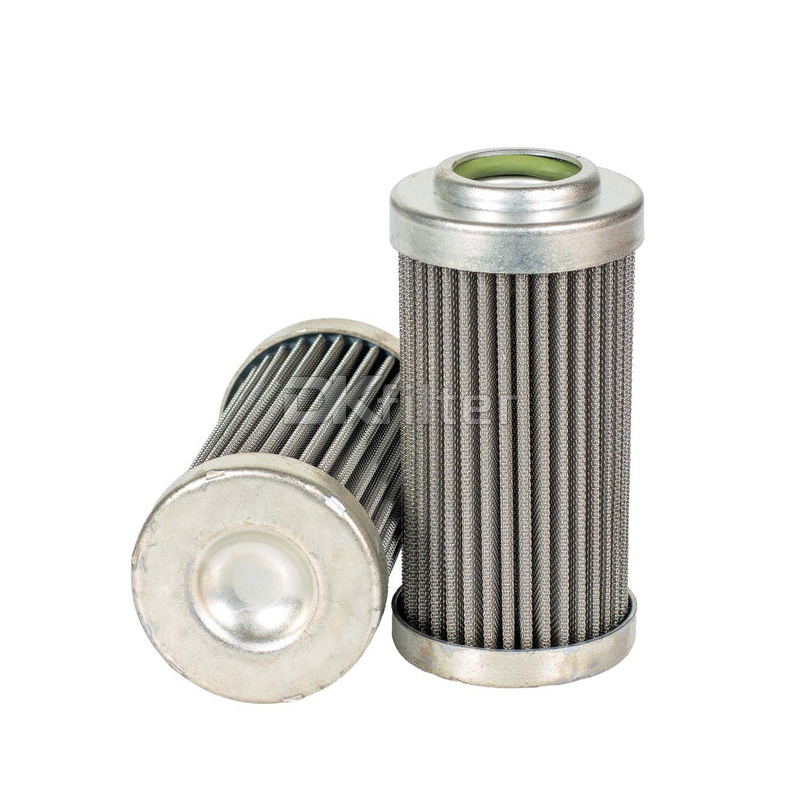

SE-070-C-03-B/2 STAUFF 3µm Fiberglass replacement Filter



Filter Wash:

The SE-070-C-03-B/2 hydraulic oil filter is stainless steel mesh element can be cleaned again after use,it can save you much cost.However,only a certain cleaning level (percentage) can be achieved.For best results,components should be cleaned using professional equipment.But cleaning results are unpredictable.It depends a lot on various conditions.

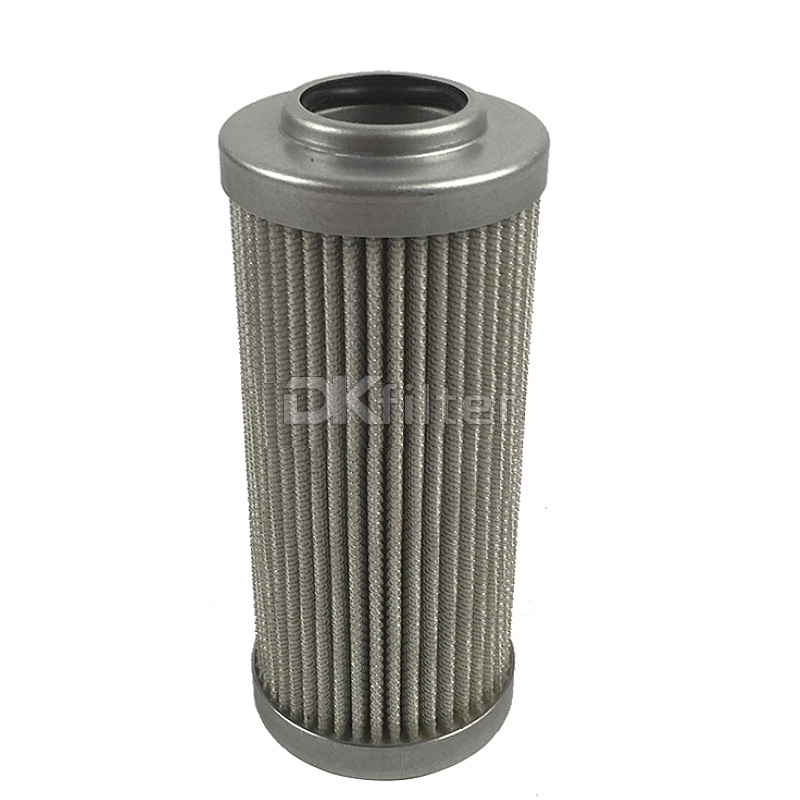

SE-070-C-03-B/2 STAUFF 3µm Fiberglass replacement Filter

(1) Dip the filter element in light oil and rotate thoroughly.

(2) Clean off dirt by scrubbing the element with a brush parallel to the pleats.

(3) Clean off dirt with an air spray gun.

(4) Rinse well.

(5) Dry using an air spray gun.

Notes:

It must be noted that during each cleaning process,approx. 80-90% of the initial filter area can be recovered each time,that is,after 4-5 cleaning cycles,the result (cleaning cost and service life) may not be economical.We will be happy to send you the operating manual with further information on cleaning.


Application:

SE-070-C-03-B/2 oil filtration element can be used for many types of industrial fluids:

filtering hydraulic fluid

diesel

machining fluids

lubricating oil

coolants

gasoline

process fluids

turbine and compressor lube oils

synthetic lubricants etc.


Test Standards:

Before delivery, Our manufactured SE-070-C-03-B/2 hydraulic oil filter will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Related Specification Filters

Other STAUFF hot sales filters

SP030E03B SP035E03B SP045E03B SP070E03B SP075E03B SP085E03B SP090E03B
SP095E03B SP120E03B SP130E03B SP140E03B SP160E03B SP180E03B SS002A05B
SS004A05B SS008A05B SS012B25B SS014A05A SS024K05B SS035A05B SS070A05B
SS085A05B SS125A05B SS160A05B SS250A05B NR040B100B NR063B100B NR100B100B
NR160B100B NR250B100B NR400B100B NR630B100B RUMG10B RUM053G10B RUM066G10B
RUM166G10B RUM224G10B NR100E10B SP024E03B0BE SP030E03B0BE SP110E03B SP130E03B0BE
SP170E03B SP250E03B SP300E03B ST5063K20B RL005B25B RL010B25B RL020B25B
RL035B25B RL100B25B RL130B25B RL130E20B RP010E03B RP020E03B RP024E03B
RP030E03B RP050E03B RP075E03B RP085E03B RP090E03B RP095E03B RP100E03B
RP115E03B RP200E03B RP240E03B RP300E03B RS003A05B RS045A05B RS150A05B
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
