Description:

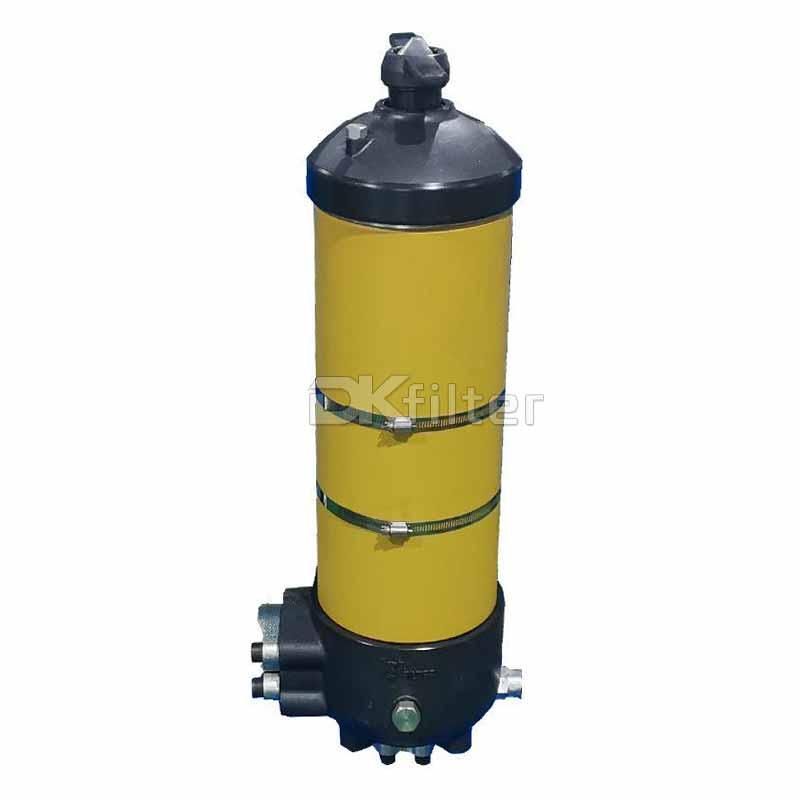

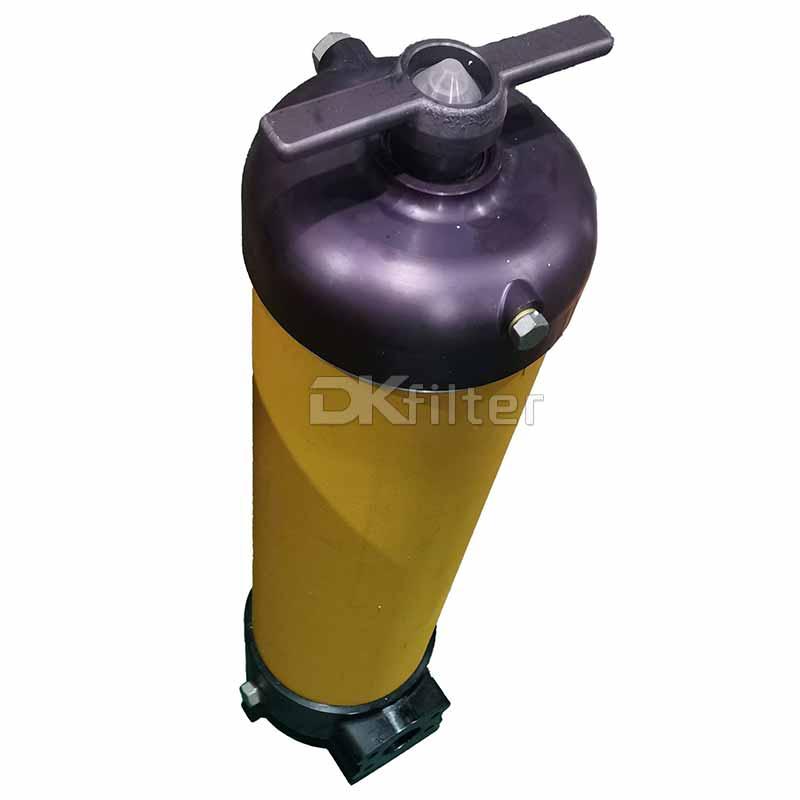

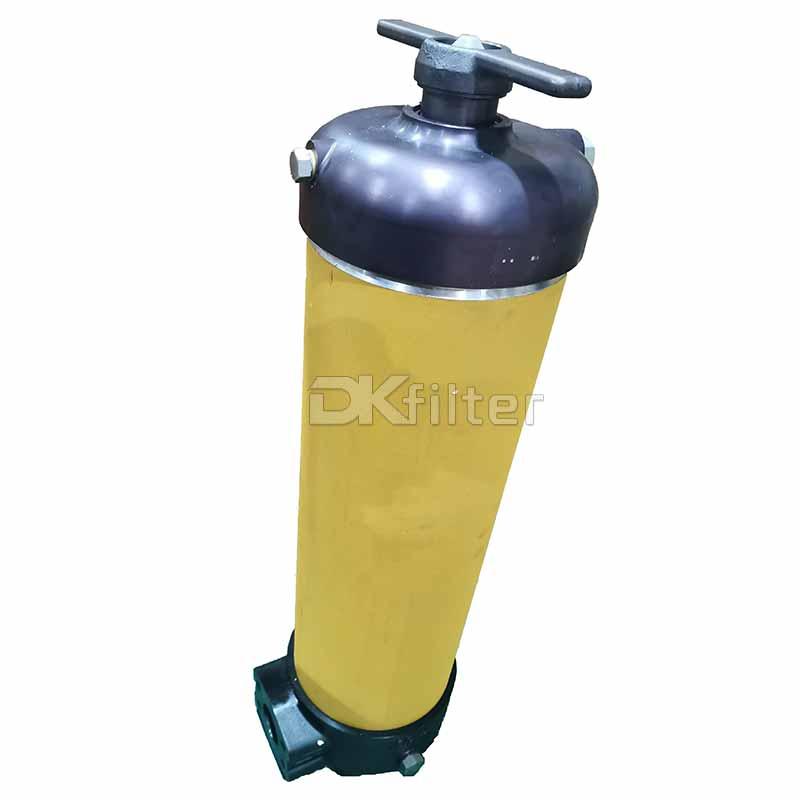

DKFILTER makes the return line filter Pall UR699CD4040ZA+,which is maximum life hydraulic oil filters housing providing the highest level of continuous fluid system protection in all applications,regardless of severity.Featuring industry-leading BetaX(C)=2000* filtration efficiency;the highest rated filter performance available today.(*according to ISO 16889)
Specifications:
| Technical Data | |
|---|
| Flow | 835 L/min (220 US gpm) |
| Pressure | 28 bar (400 psi) |
| Port Size | 2” and 2½” |
| Filter Element Burst Pressure | 10 bard (150 psid) |
| Bypass Valve Setting | 1.7 bard (25 psid) or 4.5 bard (65 psid) |
| Indicator Pressure Setting | 1.1 bard (16 psid) or 3.5 bard (50 psid) |
| Head/cover material | Steel/cast iron |
| Tube material | Aluminium |
| Fluid Compatibility | Compatible with all petroleum oils and most water glycols,water-oil emulsions,and synthetic hydraulic and lubrication fluids |
| Rated Fatigue Pressure | 0-23 bar (330 psi) per NFPA T2.06.01R2-2001 CAT C/90/*(1 million cycles),verified by testing at 0-27 bar (392 psi) for 1 million cycles. |
• Filter Element:
Inorganic fibers impregnated and bonded with epoxy resins.
Polymer endcaps.Anti-static media design UR699 Series
Features:
• Patented Ultipleat (laid-over pleat) filter medium pack
• Pall Stress-Resistant Technology (SRT) Media
• Coreless filter element configuration
• Low clean differential pressure for low energy operation
• Keeps fluids the cleanest,longest,for the greatest value
• Provides consistent,reliable,protection of system components over the full service life of the filter element
• Rapidly achieves and sustains required fluid system cleanliness
• Delivers maximum filter capacity in the smallest footprint
• Prevents electrostatic discharge from damaging your filter and degrading your fluid
Pressure Drop Information
Housing pressure drop using fluid with 0.9 S.G.
Housing pressure drop is directly proportional to specific gravity
UR699CD4040ZA+ Replacement of Pall Return Line Filter
