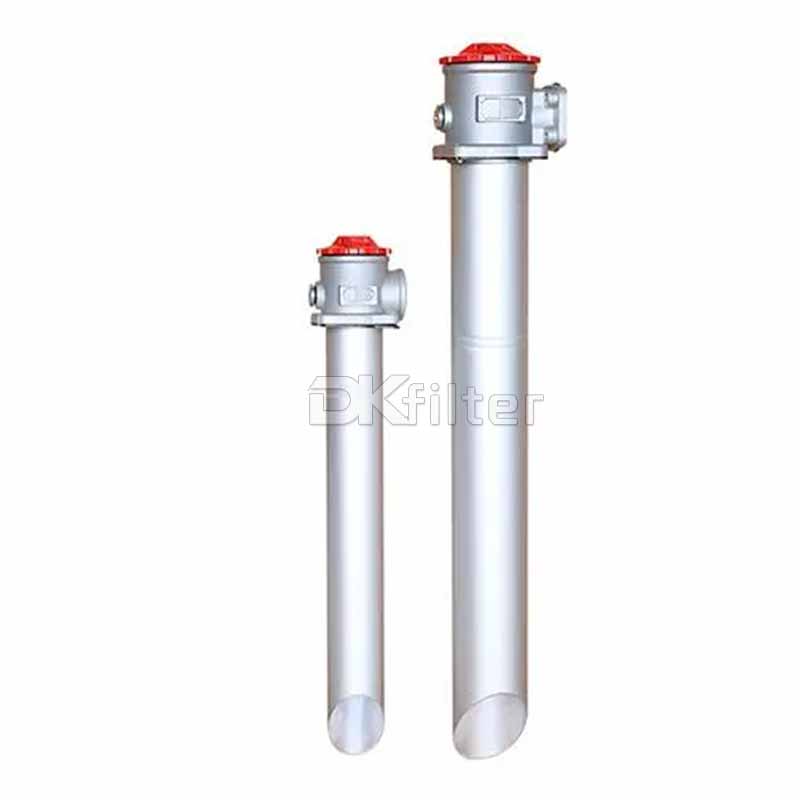

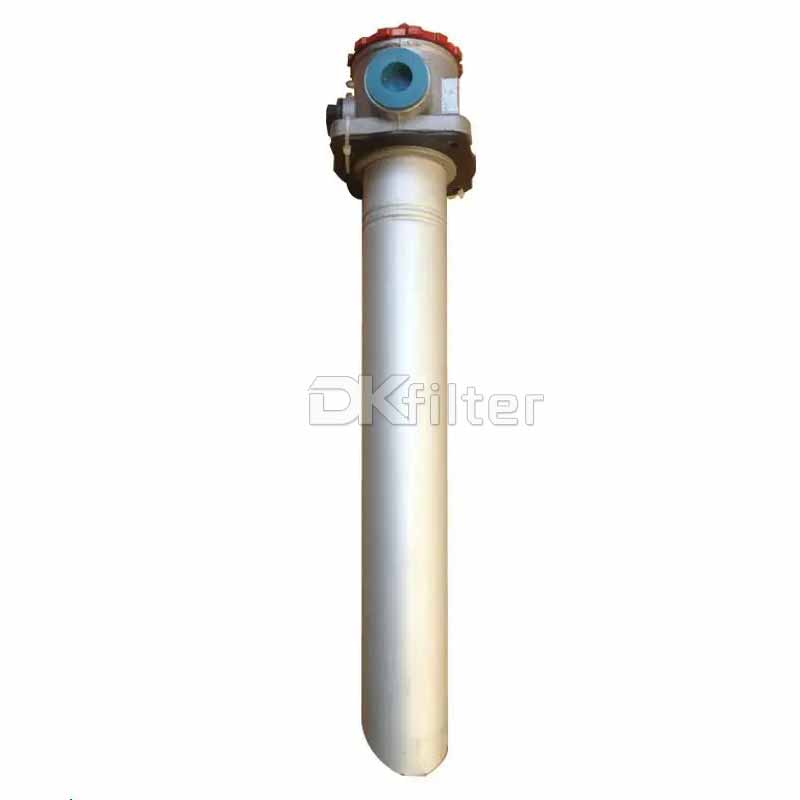

TFA-160 x 80LC Leemin Suction Filter Housing Equivalent
General specifications
Brand:DKFILTER
Model:TFA-160 x 80LC
Seal:Viton
Flow rate:160L/min
Micron:80µm
Inside filter element:TFX Series
Series:TFA-25x80L-C TFA-25x180L-Y
Brand:DKFILTER
Model:TFA-160 x 80LC
Seal:Viton
Flow rate:160L/min
Micron:80µm
Inside filter element:TFX Series
Series:TFA-25x80L-C TFA-25x180L-Y
Description:

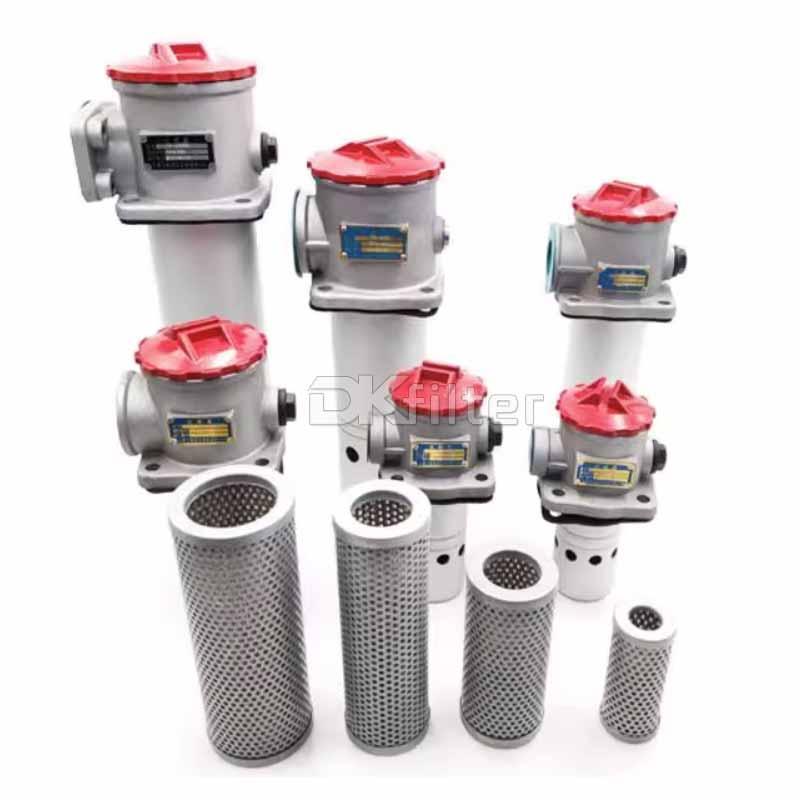

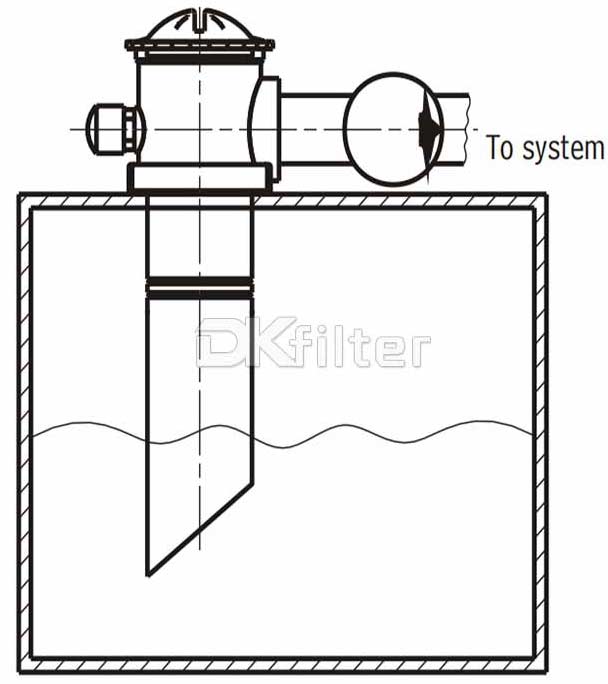

DKFILTER makes kinds of Leemin hydraulic oil filter housing,and the TFA series filter only can be installed on the top of the tank;the filter bowl should be under oil level.The other capability is similar to TF series,but TFA series don't have a check valve.
Mounting Size:

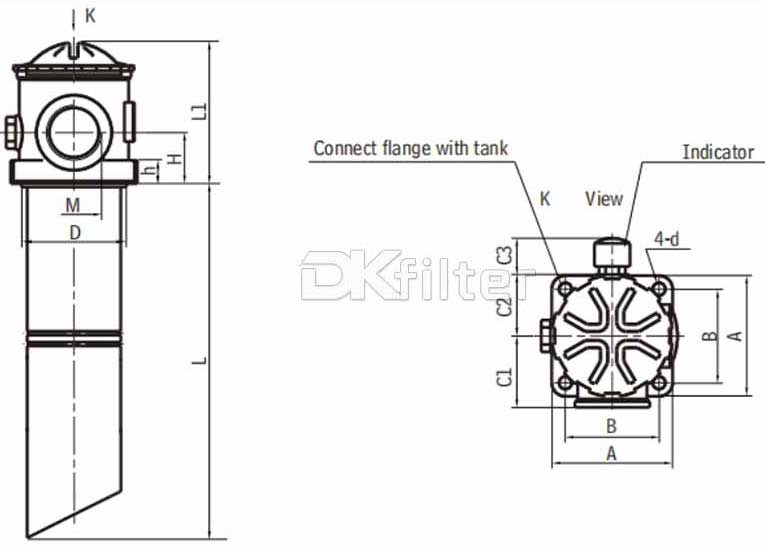

1.Threaded Connection:

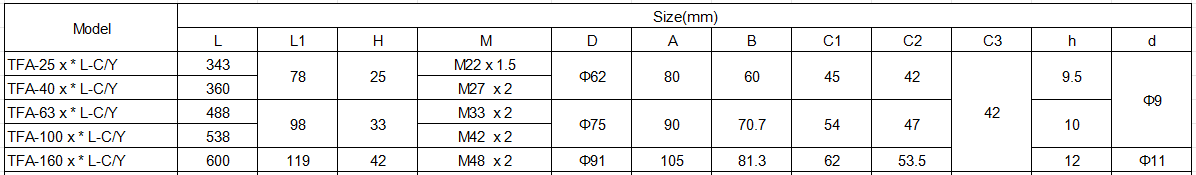

TFA-25~160 Threaded Connection:

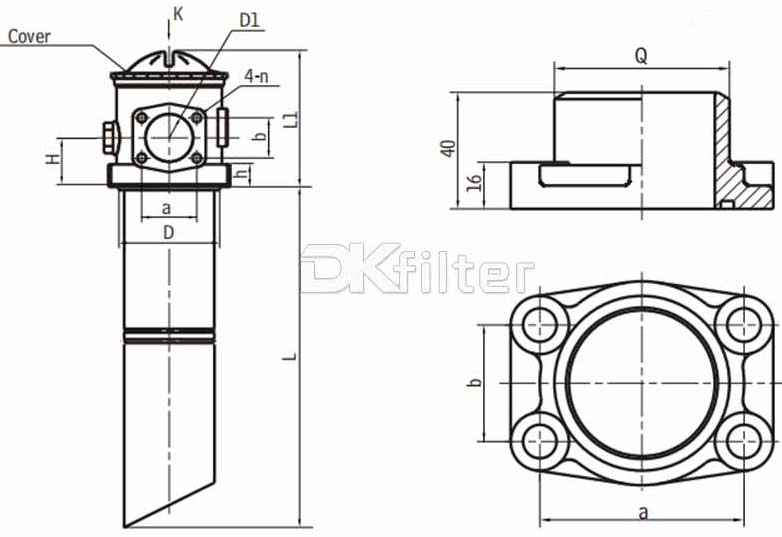

2.Flanged Connection:

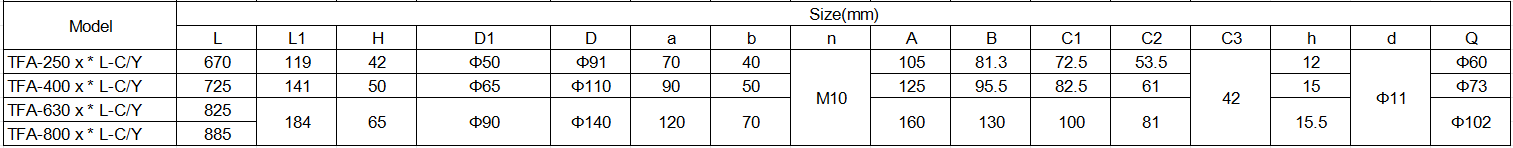

TFA-250~800 Flanged Connection:
Note:
The outlet flange,seal,screw used for this series will be supplied by our plant;the customer only need welding steel tube Q. Connection of the indicator is M18 1.5;without an indicator,a plug with thread will be supplied.
TFA-25 x 80 L-C | TFA-25 x 80 L-Y | TFA-25 x 150 L-C | TFA-25 x 150 L-Y | TFA-25 x 180 L-C | TFA-25 x 180 L-Y |
TFA-40 x 80 L-C | TFA-40 x 80 L-Y | TFA-40 x 150 L-C | TFA-40 x 150 L-Y | TFA-40 x 180 L-C | TFA-40 x 180 L-Y |
TFA-63 x 80 L-C | TFA-63 x 80 L-Y | TFA-63 x 150 L-C | TFA-63 x 150 L-Y | TFA-63 x 180 L-C | TFA-63 x 180 L-Y |
TFA-100 x 80 L-C | TFA-100 x 80 L-Y | TFA-150 x 150 L-C | TFA-150 x 150 L-Y | TFA-180 x 180 L-C | TFA-180 x 180 L-Y |
TFA-160 x 80 L-C | TFA-160 x 80 L-Y | TFA-160 x 150 L-C | TFA-160 x 150 L-Y | TFA-160 x 180 L-C | TFA-160 x 180 L-Y |
TFA-250 x 80 L-C | TFA-250 x 80 L-Y | TFA-250 x 150 L-C | TFA-250 x 150 L-Y | TFA-250 x 180 L-C | TFA-250 x 180 L-Y |
TFA-400 x 80 L-C | TFA-400 x 80 L-Y | TFA-400 x 150 L-C | TFA-400 x 150 L-Y | TFA-400 x 180 L-C | TFA-400 x 180 L-Y |
TFA-630 x 80 L-C | TFA-630 x 80 L-Y | TFA-630 x 150 L-C | TFA-630 x 150 L-Y | TFA-630 x 180 L-C | TFA-630 x 180 L-Y |
TFA-800 x 80 L-C | TFA-800 x 80 L-Y | TFA-1500 x 150 L-C | TFA-1500 x 150 L-Y | TFA-1800 x 180 L-C | TFA-1800 x 180 L-Y |
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests. |
