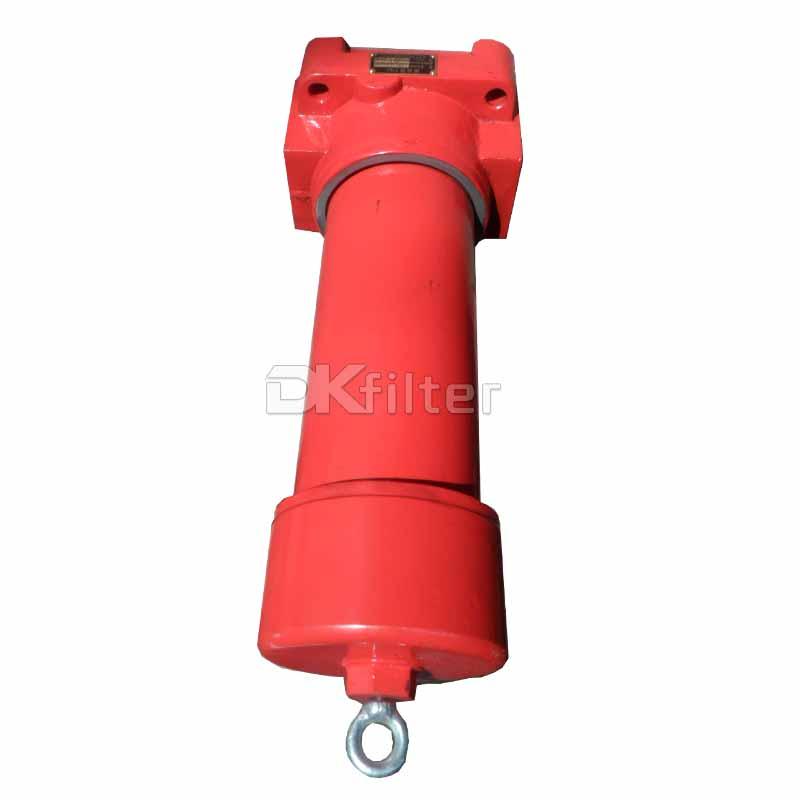

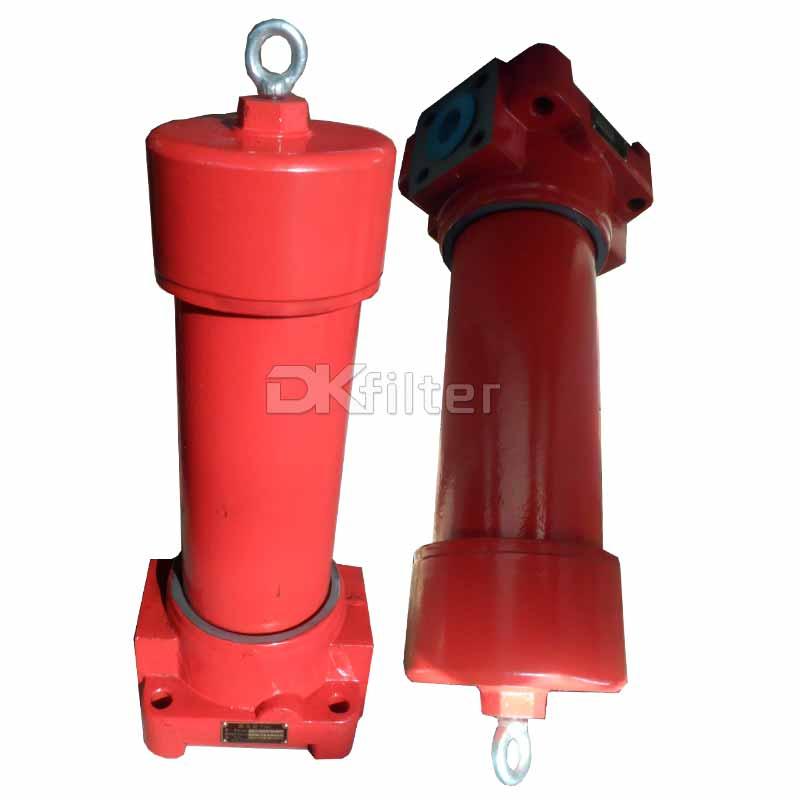

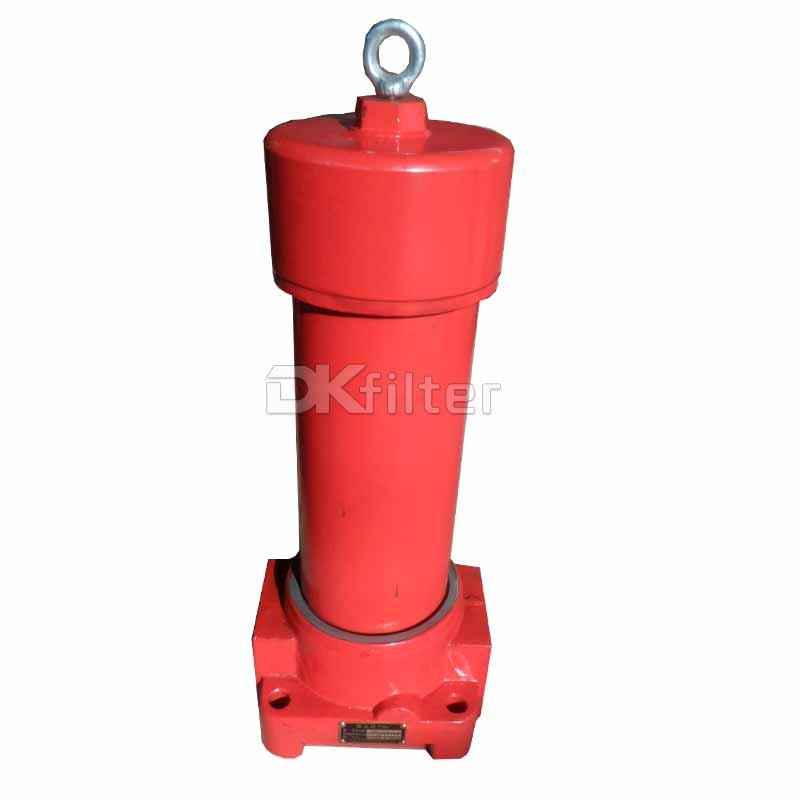

ZUI-H250X20DFP High Pressure Line Hydraulic Oil Filter

It is installed on the pressure pipeline of the hydraulic system to filter out the mechanical impurities mixed in the hydraulic oil and the colloidbitumencarbon residueetc.produced by the chemical change of the hydraulic oil itselfso as to prevent the valve core from being stuck.The blockage of the throttle hole gap and the damping holeand the rapid wear and tear of the hydraulic components and other faults occur.


General specifications

Quality:

Brand:DKFILTER

Model:ZUI-H250X20DFP

Flow rate:250L/min

Micron:20µm

Seal:Viton

Pressure:32MPa

Inside filter element:HDX-250x20

Series:Z/Q U-H400x*-DFPZ/Q U-H630x*-DFP more

Description:

The hydraulic oil filter housing ZUI-H250X20DFP is installed on the pressure pipeline of the hydraulic system to filter out the mechanical impurities mixed in the hydraulic oil and the colloid,bitumen,carbon residue,etc.produced by the chemical change of the hydraulic oil itself,so as to prevent the valve core from being stuck.The blockage of the throttle hole gap and the damping hole,and the rapid wear and tear of the hydraulic components and other faults occur.


The filter has good filtering effect and high precision,but it is difficult to clean after clogging,and the filter element needs to be replaced.


The filter element is made of glass fiber material,which has the advantages of high filtration accuracy,large oil passage capacity,small original pressure loss,and large dirt holding capacity.The filtration accuracy is calibrated by absolute filtration accuracy,and the filtration ratio β3,5,10 20 >200,filtration efficiency n≥99.5%,in line with ISO standard.


Model Code:

 ZUI-H250X20DFP High Pressure Line Hydraulic Oil Filter


Technical Data:

 ZUI-H250X20DFP High Pressure Line Hydraulic Oil Filter

 Note:The * represents filtration micron,# is filter media.If the filter fluid is water-glycol,operation pressure is 32MPa,flower rate is 63L/min,filter media is paper,the filter equipped with indicator and by-pass valve, the model of the filter is ZUI•BH H63 *P. That of the element is HX•BH-H63 *, if filter media is fibre and the filter equipped with indicator,the model of the filter is QU•BH -H63*P, that of the element is HX•BH-H63 *Q;if filter media is wire mesh and the filter equipped with indicator, the model of the filter is WU•BH-H63 *P,That of the element is HX•BH-H63 *W;

 ZUI-H250X20DFP High Pressure Line Hydraulic Oil Filter


Filter Element Pressure Drop(△P) Against Flow Curves:

ZUI-H250X20DFP High Pressure Line Hydraulic Oil Filter

HX-* X * Viscosity 30CST


Mounting Size:

 ZUI-H250X20DFP High Pressure Line Hydraulic Oil Filter

 ZUI-H250X20DFP High Pressure Line Hydraulic Oil Filter


Test standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing

Related Specification Filters

ZU-H10x20-BP ZUI-H10x20-BP ZU-H25x20-DFP ZUI-H25x20-DFP ZU-H25x20-DFAP ZUI-H25x20-DFAP ZU-H25x20-DLP
ZU-H25x20-BP ZUI-H25x20-BP ZU-H40x20-DFP ZUI-H40x20-DFP ZU-H40x20-DFAP ZUI-H40x20-DFAP ZU-H40x20-DLP
ZU-H40x20-BP ZUI-H40x20-BP ZU-H63x20-DFP ZUI-H63x20-DFP ZU-H63x20-DFAP ZUI-H63x20-DFAP ZU-H63x20-DLP
ZU-H63x20-BP ZUI-H63x20-BP ZU-H100x20-DFP ZUI-H100x20-DFP ZU-H100x20-DFAP ZUI-H100x20-DFAP ZU-H100x20-DLP
ZU-H100x20-BP ZUI-H100x20-BP ZU-H160x20-DFP ZUI-H160x20-DFP ZU-H160x20-DFAP ZUI-H160x20-DFAP ZU-H160x20-DLP
ZU-H160x20-BP ZUI-H160x20-BP ZU-H250x20-DFP ZUI-H250x20-DFP ZU-H250x20-DFAP ZUI-H250x20-DFAP ZUI-H25x20-DLP
ZU-H250x20-BP ZUI-H250x20-BP ZU-H400x20-DFP ZUI-H400x20-DFP ZU-H400x20-DFAP ZUI-H400x20-DFAP ZUI-H40x20-DLP
ZU-H400x20-BP ZUI-H400x20-BP ZU-H630x20-DFP ZUI-H630x20-DFP ZU-H630x20-DFAP ZUI-H630x20-DFAP ZUI-H63x20-DLP
ZU-H630x20-BP ZUI-H630x20-BP ZU-H800x20-DFP ZUI-H800x20-DFP ZU-H800x20-DFAP ZUI-H800x20-DFAP ZUI-H100x20-DLP
ZU-H10x20-DFP ZUI-H10x20-DFP ZU-H10x20-DFAP ZUI-H10x20-DFAP ZU-H10x20-DLP ZUI-H10x20-DLP ZUI-H160x20-DLP
If you have no standard filter code numbers please send us your filters specifications or samples we can customize as your requests.
