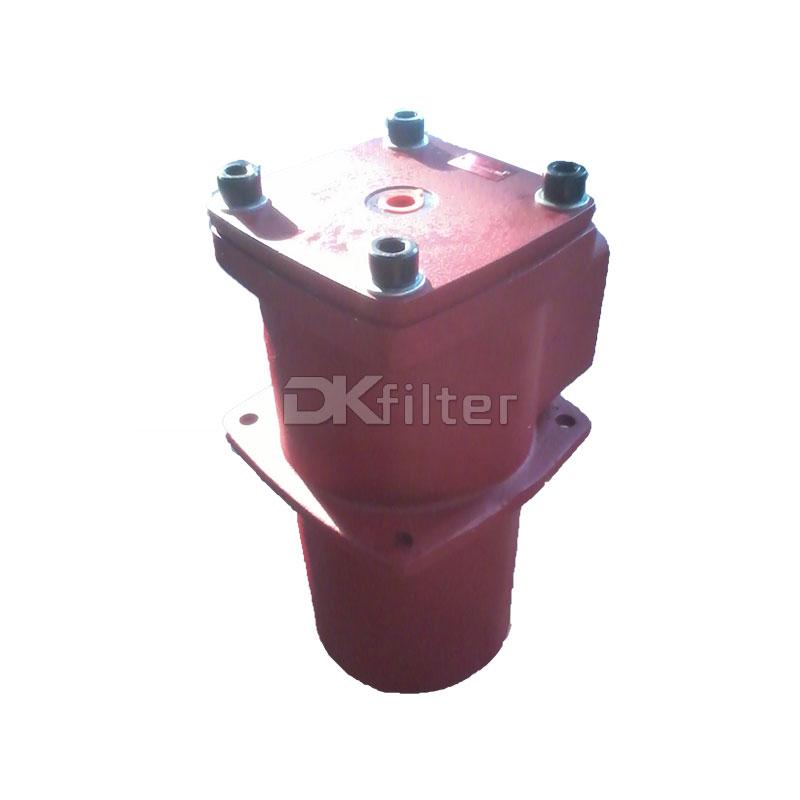

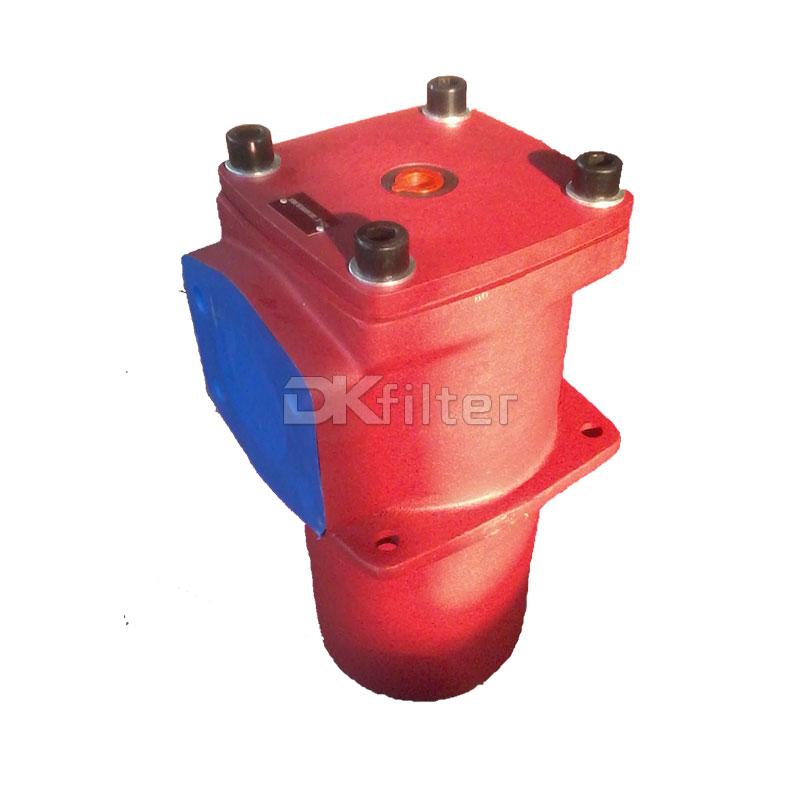

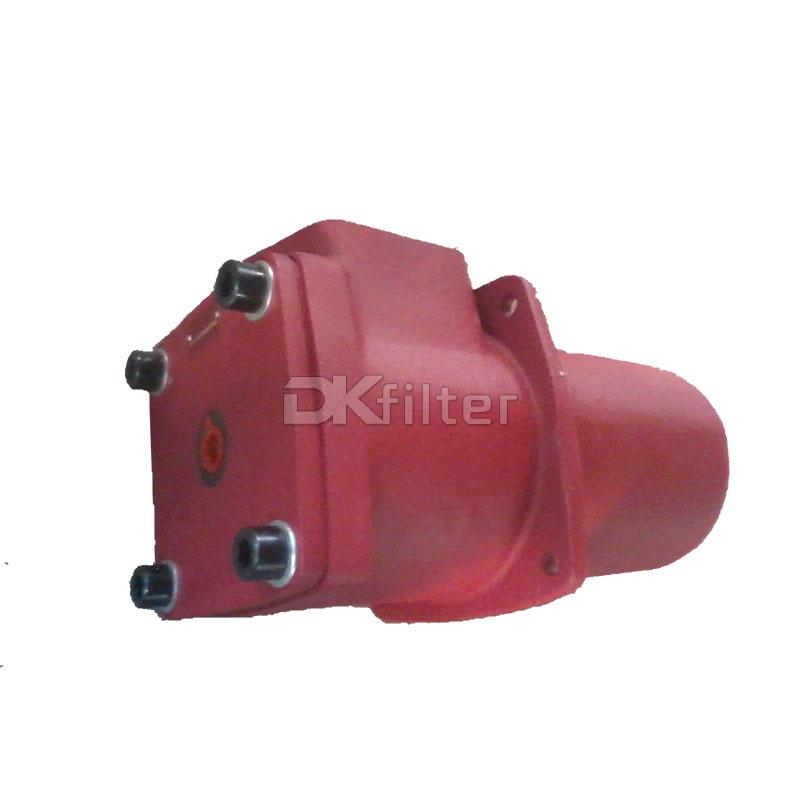

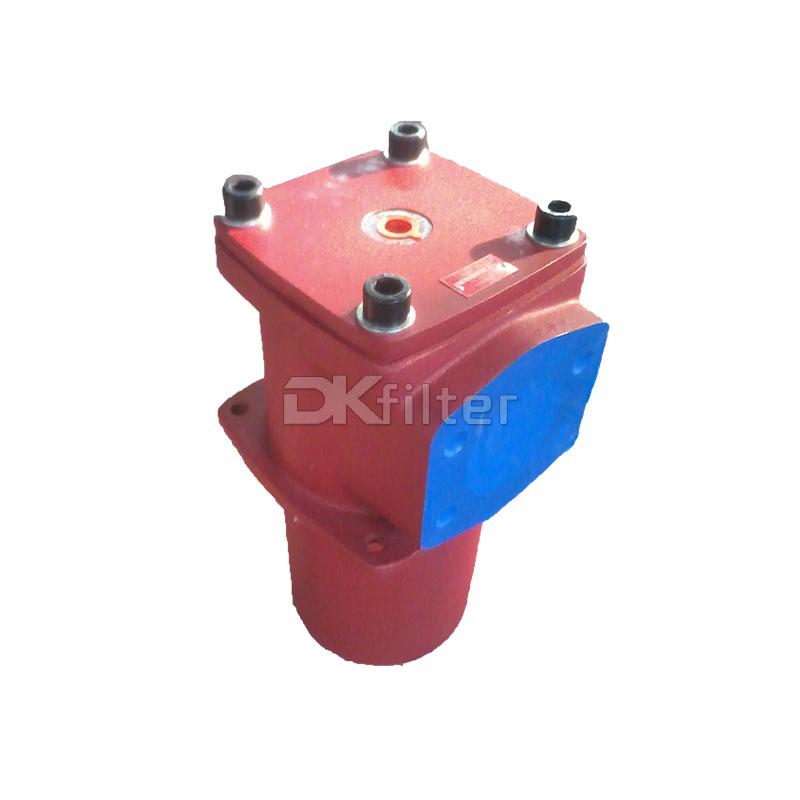

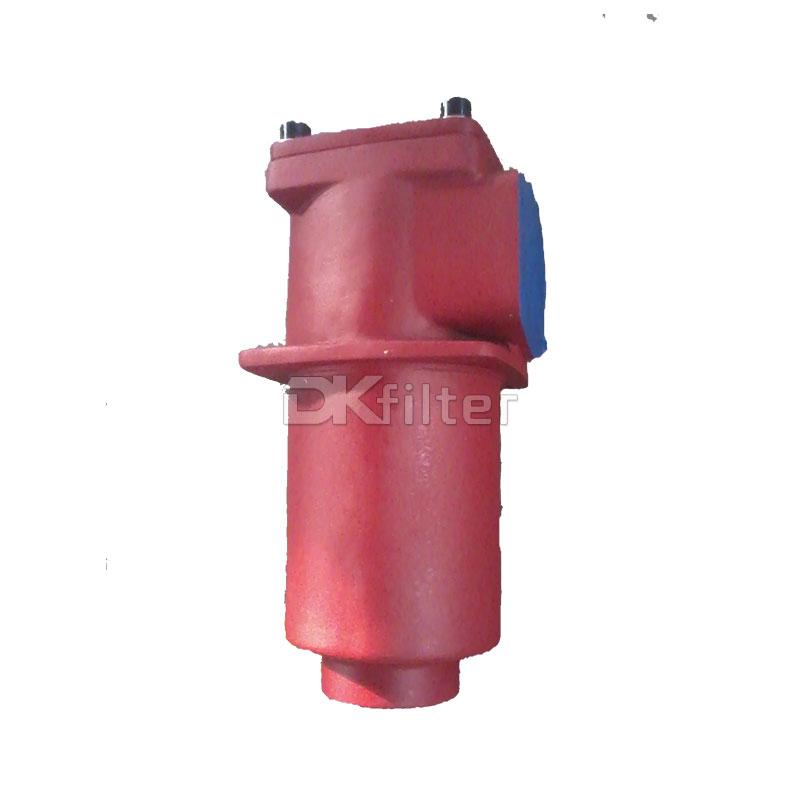

HYDAC hydraulic oil return line filter housing RFBNHC660DN10

RFBNHC660DN10D1.X-L24 is used in mineral oils, lubricants, fuel resistant and fast-breaking bio-oils, mounted directly on top of the tank. RFBNHC660DN10D1.X-L24 replacement hydraulic oil filter housing is designed to be mounted directly on tank tops.Inline mounting is also possible.


General specifications

Brand:DKFILTER

Model:RFBNHC660DN10D1.X-L24

Filter type:Return line filter

Flow rate:660 l/min

Filtration accuracy:10μm

Operating pressure:25bar max.

Connection:Flange

Inside filter element:0660R010BN4HC

RFBNHC660DN10D1.X-L24 is hydac hydraulic oil filter housing replacement and it is designed to be mounted directly on tank tops.Inline mounting is also possible.

Back to the oil filter from the top and barrel.On the cover has a pollution sender device interface, installed on the top of the tank or piping,flows from the side,vertically downward outflow,the bypass valve opening pressure is 0.35Mpa,suitable for mineral oil, lubricants, anti-fuel and rapid decomposition bio-oil.

As a return line filter,RFBNHC660DN10D1.X-L24 consists of a one-piece housing with bolt-on cover plate.A connection for a clogging indicator is standard.The filter is designed to be used in hydraulic tanks to DIN 24339,cover plate Form C.

Related Specification Filters

Brand:DKFILTER

Model:RFBNHC660DN10D1.X-L24

Filter type:Return line filter

Flow rate:660 l/min

Filtration accuracy:10μm

Operating pressure:25bar max.

Connection:Flange

Inside filter element:0660R010BN4HC

More filters code number:

RF Series:

RFBN/HC160DE10B1.X RFBN/HC160DE10C1.X RFBN/HC330DL10B1.X RFBN/HC330DL10C1.X RFBN/HC660DN10B1.X RFBN/HC660DN10C1.X
RFBN/HC950DO10B1.X RFBN/HC950DO10C1.X RFBN/HC1300DP10B1.X RFBN/HC1300DP10C1.X

RFD Series:

RFDBN/HC160DAD10B1.X RFDBN/HC160DAD10C1.X RFDBN/HC240DAD10B1.X RFDBN/HC240DAD10C1.X RFDBN/HC330DAL10B1.X RFDBN/HC330DAL10C1.X
RFDBN/HC660DAN10B1.X RFDBN/HC660DAN10C1.X RFDBN/HC950DAP10B1.X RFDBN/HC950DAP10C1.X RFDBN/HC1300DAP10B1.X RFDBN/HC1300DAP10C1.X

DF Series:

DFBN/HC60G10B1.X DFBN/HC60G10C1.X DFBN/HC110G10B1.X DFBN/HC110G10C1.X DFBN/HC140G10B1.X DFBN/HC140G10C1.X
DFBN/HC160G10B1.X DFBN/HC160G10C1.X DFBN/HC240G10B1.X DFBN/HC240G10C1.X DFBN/HC330G10B1.X DFBN/HC330G10C1.X
DFBN/HC500F10B1.X DFBN/HC500F10C1.X DFBN/HC660G10B1.X DFBN/HC660G10C1.X DFBN/HC990F10B2.X DFBN/HC990F10C2.X
DFBN/HC60P10B1.X DFBN/HC60P10C1.X DFBN/HC110P10B1.X DFBN/HC110P10C1.X DFBN/HC140P10B1.X DFBN/HC140P10C1.X
DFBN/HC160P10B1.X DFBN/HC160P10C1.X DFBN/HC240P10B1.X DFBN/HC240P10C1.X DFBN/HC330P10B1.X DFBN/HC330P10C1.X
DFBN/HC500P10B1.X DFBN/HC500P10C1.X DFBN/HC660P10B1.X DFBN/HC660P10C1.X DFBN/HC60QE10B1.X DFBN/HC60QE10C1.X
DFBN/HC110QE10B1.X DFBN/HC110QE10C1.X DFBN/HC140QE10B1.X DFBN/HC140QE10C1.X DFBN/HC160QE10B1.X DFBN/HC160QE10C1.X
DFBN/HC240QE10B1.X DFBN/HC240QE10C1.X DFBN/HC280QE10B1.X DFBN/HC280QE10C1.X DFBN/HC330QE10B1.X DFBN/HC330QE10C1.X
DFBN/HC500QE10C1.X DFBN/HC660QE10B1.X DFBN/HC660QE10C1.X DFBN/HC990QE10B2.X DFBN/HC990QE10C2.X

DFDK Series:

DFDKBN/HC60G10B1.X DFDKBN/HC60G10C1.X DFDKBN/HC110G10B1.X DFDKBN/HC110G10C1.X DFDKBN/HC140G10B1.X DFDKBN/HC140G10C1.X
DFDKBN/HC160G10B1.X DFDKBN/HC160G10C1.X DFDKBN/HC240G10B1.X DFDKBN/HC240G10C1.X DFDKBN/HC280G10B1.X DFDKBN/HC280G10C1.X
DFDKBN/HC330F10B1.X DFDKBN/HC330F10C1.X DFDKBN/HC500F10B1.X DFDKBN/HC500F10C1.X DFDKBN/HC660F10B1.X DFDKBN/HC660F10C1.X
DFDKBN/HC990F10B1.X DFDKBN/HC990F10C1.X DFDKBN/HC1320F10B1.X DFDKBN/HC1320F10C1.X
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
