FT5 Series HYDAC Barrel Transportation and Filtration Trolley

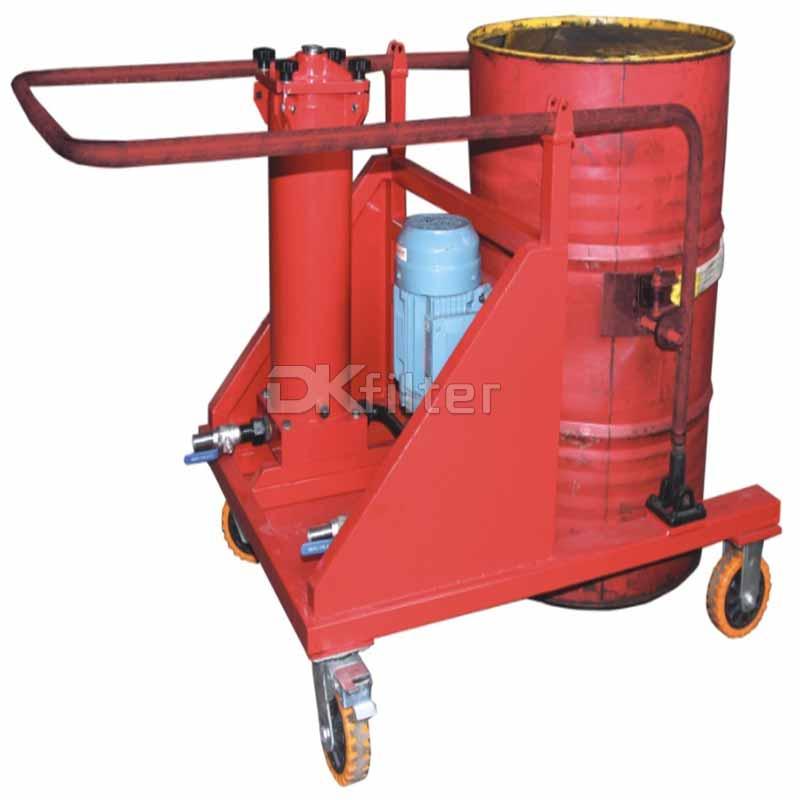

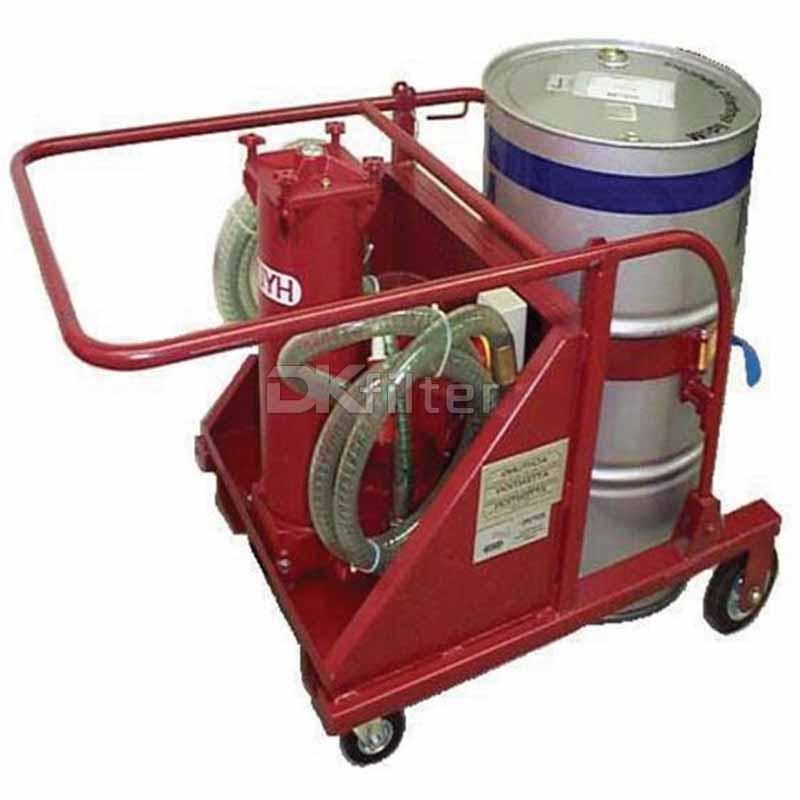

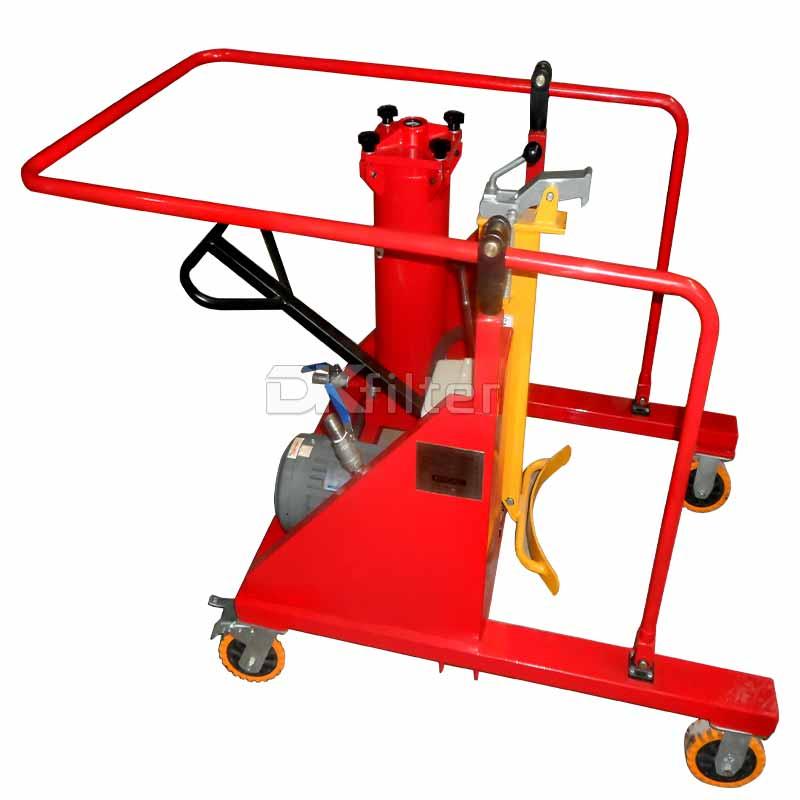

The FT 5 series barrel transportation and filtration trolley is a mobile oil service unit.It fills/filters hydraulic and lubrication tanks.The unit is designed to carry a standard oil drum (200 l).There is also the option to bypass the filter when emptying tanks (Version F).


General specifications

Quality:

Brand:DKFILTER

Model:FT5L10P6N2B05E

Flow rate:40L/min

Micron:5μm

Seals:NBR

Electric motor voltage:3 x 380V50Hz

Filter size:1300R005BN4HC

Series:FT5L10P3N2B05EFT5F10P6N2B05E more

Description:

We manufacture the FT 5 series oil filter machine replacement,it is one of our most competitive oil purifier.The FT 5 series barrel transportation and filtration trolley is a mobile oil service unit.It fills/filters hydraulic and lubrication tanks.The unit is designed to carry a standard oil drum (200 L).There is also the option to bypass the filter when emptying tanks (Version F).


Applications:

Hydraulic and lubrication oil systems in a variety of industries


Advantages:

Convenient offline filtration

Easy,safe transport of a 200 l standard oil drum

Easy to operate

Filling to a defined cleanliness class

Greater system availability

Reduction in Life Cycle Cost LCC

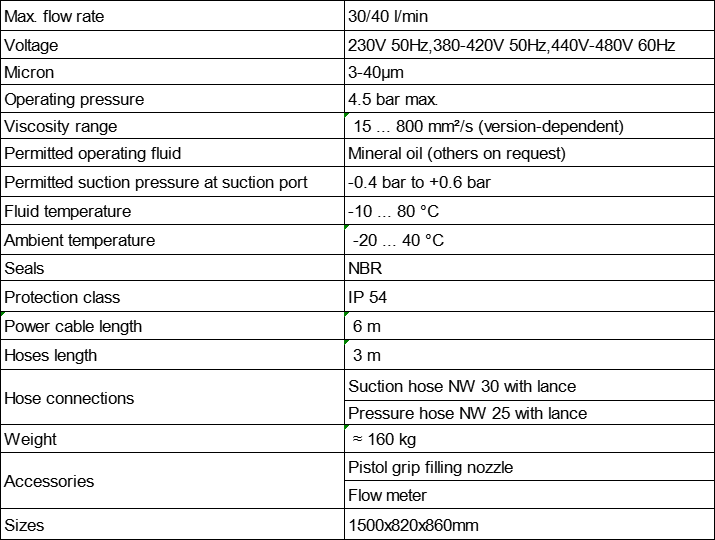

Technical specifications:

FT5 Series HYDAC Barrel Transportation and Filtration Trolley

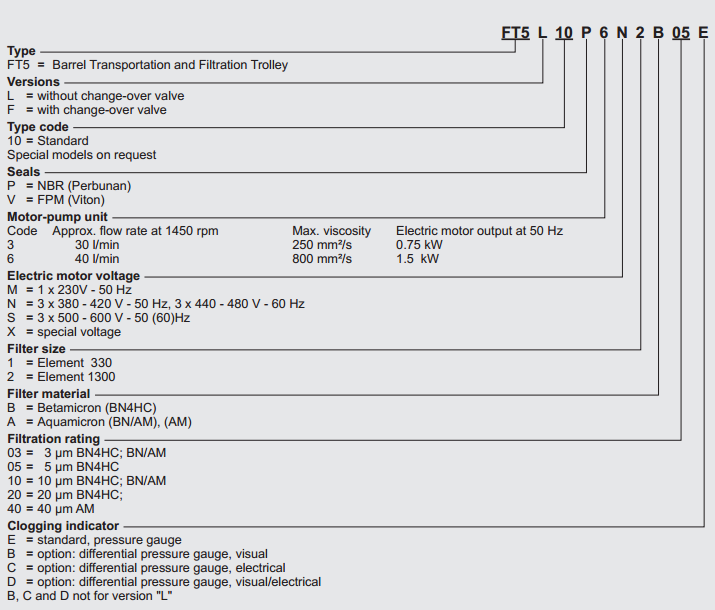

Mode Code:

FT5 Series HYDAC Barrel Transportation and Filtration Trolley

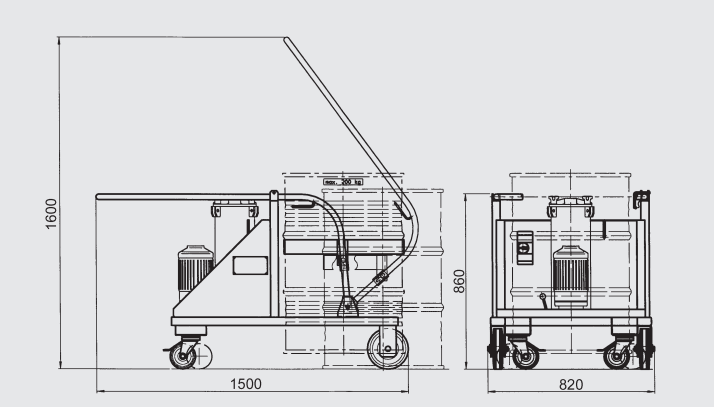

Dimensions:

FT5 Series HYDAC Barrel Transportation and Filtration Trolley

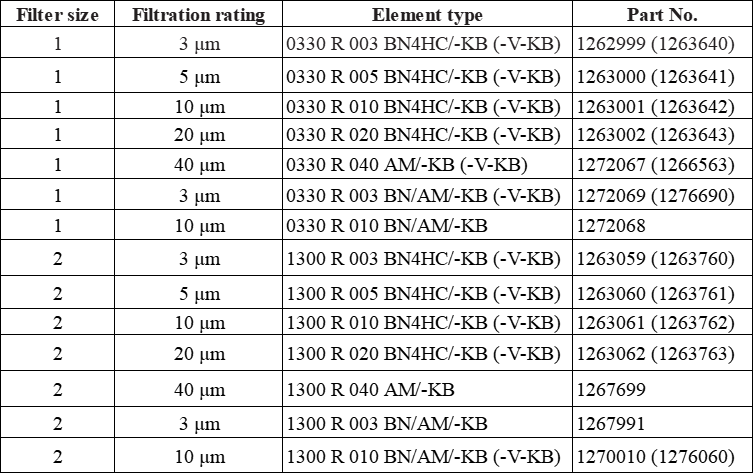

Replacement elements:

FT5 Series HYDAC Barrel Transportation and Filtration Trolley



Related Specification Filters

FT5L10P6N2B03E FT5L10P6N2B05E FT5L10P6N2B10E FT5F10P6N2B03E FT5F10P6N2B05E FT5F10P6N2B10E
FT5L10V6N2B03E FT5L10V6N2B05E FT5L10V6N2B10E FT5F10V6N2B03E FT5F10V6N2B05E FT5F10V6N2B10E
FT5L10V3N2B03E FT5L10V3N2B05E FT5L10V3N2B10E FT5F10V3N2B03E FT5F10V3N2B05E FT5F10V3N2B10E
FT5L10V3X2B03E FT5L10V3X2B05E FT5L10V3X2B10E FT5F10V3X2B03E FT5F10V3X2B05E FT5F10V3X2B10E
FT5L10V3X1B03E FT5L10V3X1B05E FT5L10V3X1B10E FT5F10V3X1B03E FT5F10V3X1B05E FT5F10V3X1B10E
FT5L10V3X1A03E FT5L10V3X1A05E FT5L10V3X1A10E FT5F10V3X1A03E FT5F10V3X1A05E FT5F10V3X1A10E
If you have no standard filter code numbers please send us your filters specificationswe can customize as your requests.
