PECO XP-G1-6200V
PECO XP-G1-6200VXP-G1-6200V High Flow Liquid Filter Element

XP-G1-6200V Parker & PECO High Flow Liquid Filter Element

The high flow liquid filter element XP-G1-6200V is a large 6” diameter cartridge designed to filter liquids from the inside to outside.This design has several advantages.It allows high flow rates to be achieved in a single cartridgethus requiring fewer filters and a 3 "diameter design compared to a traditional 2.5" cartridge.


General specifications

Quality:

Brand: DKFILTER

Model: XP-G1-6200V

Sizes: OD6.3”*L60.5”

Seal: Viton

Micron Rating: 20µm

Filter material: Fiberglass

End Caps Material:Nylon

Body Material: Tin-Plated Steel

Series:XP-G1-6300E XP-G1-6400E XP-G1-6700E more

Brief Introduction:

The high flow liquid filter element XP-G1-6200V is a large 6” diameter cartridge designed to filter liquids from the inside to outside.This design has several advantages.It allows high flow rates to be achieved in a single cartridge,thus requiring fewer filters and a 3 "diameter design compared to a traditional 2.5" cartridge.

XP-G1-6200V is built with a multi-layer w-pleat media design that prevents each fold from folding itself, thus achieving an even contaminant load throughout the fold package.XP-G1-6200V is made of glass medium with a sturdy steel exterior support.External bracing prevents folds from expanding and getting stuck in the cartridge support basket of the container.


Features:

W-pleats configuration:

Optimizes contaminant capacity through larger internal area and provides strength to fold envelope to prevent folding and blinding.


High strength rigid external support:

Ideal for harsh conditions and demanding applications by improving dielectric integrity under recoil or slug conditions.


Large diameter (6 ") cartridge:

Produces higher flow rates and longer operating life than standard 2.5 "filters, requiring the use of fewer cartridges and reducing capital expenditure.


V-seal:

Ensures complete seal compared to standard O-rings,especially if the support plate or basket is not round.

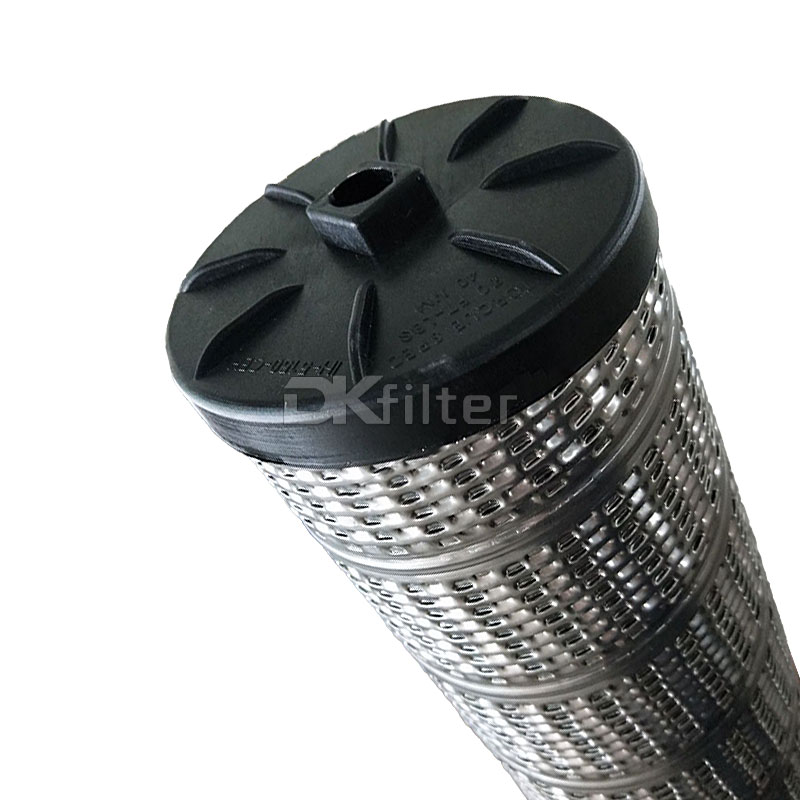

Integrated handle in the end cover:

Cartridges can be replaced without tools,easy and safe replacement, reducing downtime.


Flow direction from inside to outside:

Pollutants captured in the filter provide cleaner and easier extraction during the replacement process.


Filter Material:

We make XP-G1-6200V high flow industrial water filter use a single unit structure to reduce the number of gaskets and improve overall reliability. XP-G1-6200V water cartridge filter have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use.

The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.

All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.

The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.

XP-G1-6200V Parker & PECO High Flow Liquid Filter Element


Structure Performance:

The XP-G1-6200V can keep contaminants in the filter element,so the container stays clean.The filter element includes an end cover with a handle,and the patented herringbone sealing technology is adopted to make the filter element and the rotating basket bracket completely sealed.This means tools are needed when there is no seal,making it a safe,user-friendly option while also reducing maintenance time and money.


Application:

• Reverse Osmosis (RO)Prefiltration

• Process Water

• Chemicals & Solvents

• Condensate


DKFILTER also offers a full range of replacement filter elements:

Parker

3M

Pall

Pentair

Peco


Related Specification Filters

XP-G1-4010V XP-G1-4050E XP-G1-4100E XP-G1-4200E XP-G1-4300E XP-G1-4400E
XP-G1-4700E XP-G1-6010E XP-G1-6050E XP-G1-6100E XP-G1-6200E XP-G1-6300E
XP-G1-6400E XP-G1-6700E XP-G1-4010V XP-G1-4050V XP-G1-4100V XP-G1-4200V
XP-G1-4300V XP-G1-4400V XP-G1-4700V XP-G1-6010V XP-G1-6050V XP-G1-6100V
XP-G1-6200V XP-G1-6300V XP-G1-6400V XP-G1-6700V
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
