Introduction:

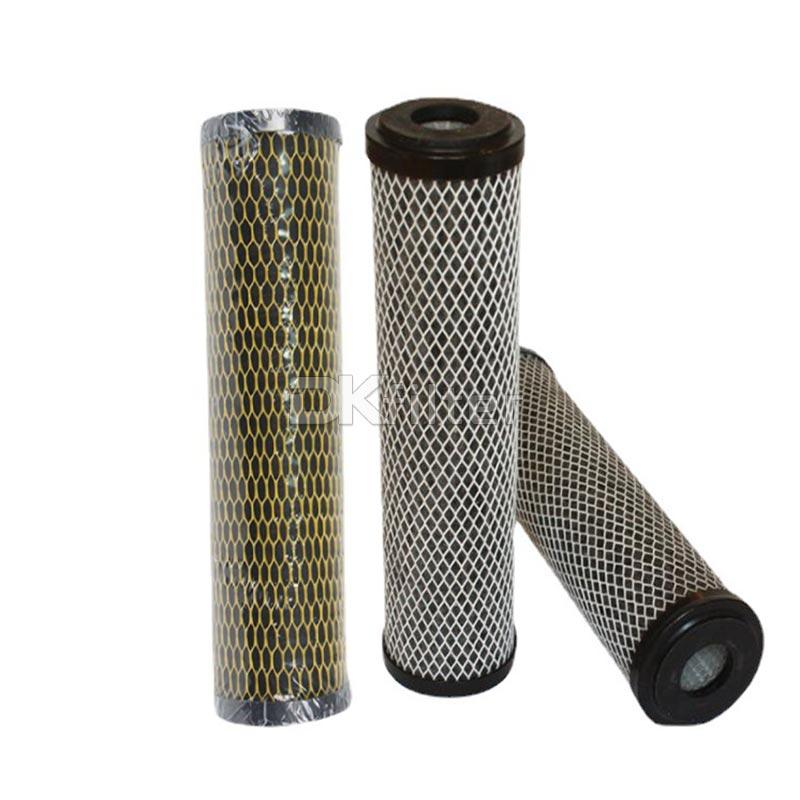

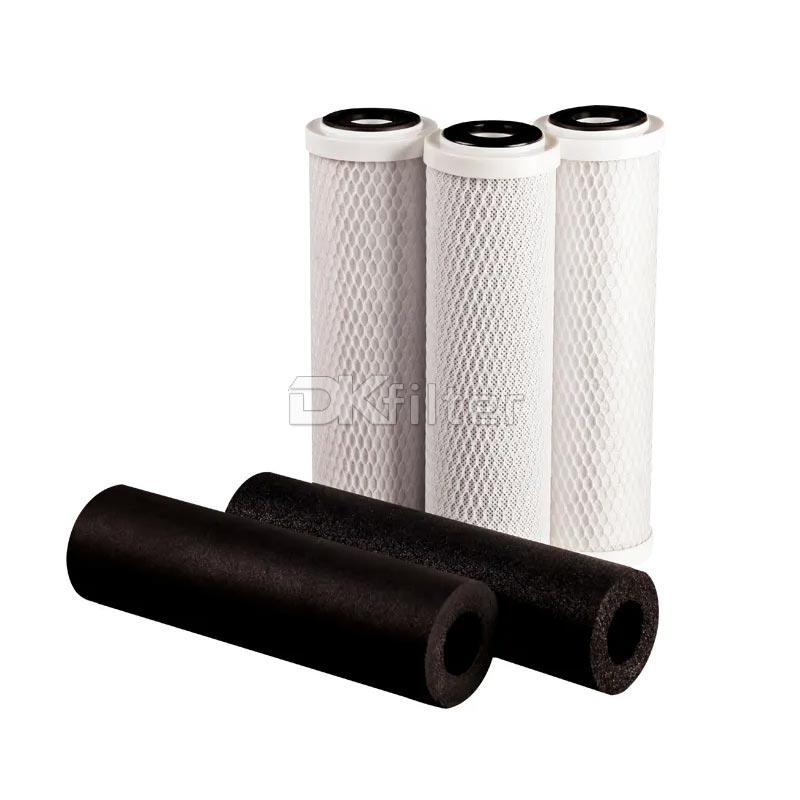

The activated carbon water filter element is made of high-quality fruit shell carbon and coal-based activated carbon as raw materials,supplemented by adhesives,using high-tech technology,and processed by a special process.It integrates adsorption,filtration,interception,and catalysis,and can effectively remove organic matter,residual chlorine and other radioactive substances in water,and has the effect of decolorization and odor removal.It is an ideal new replacement product in the liquid and air purification industry.Type: white head sintered activated carbon filter, black head with skeleton sintered activated carbon filter,granular activated carbon filter

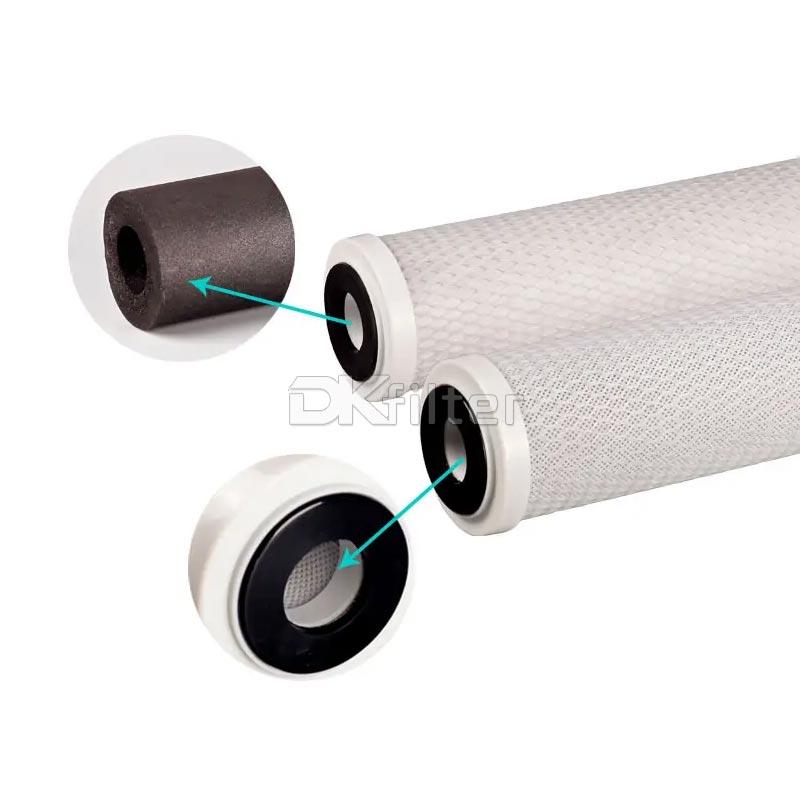

The innermost layer of the filter element is a polypropylene skeleton to enhance the compressive strength of the filter element.The skeleton is covered with two layers of polypropylene microfiber felt,which can intercept the liquid passing through the carbon core and bring out particles larger than 10 microns.The outer layer of the carbon core is covered with two layers of polypropylene microfiber felt,which can intercept particles larger than 10-20 microns in the liquid, so that the filter element has dual functions of filtration and purification.The outermost layer is a white plastic mesh sleeve,which makes the filter element have a complete appearance and a neat appearance.Both ends of the filter element are equipped with soft NBR end caps, so that the filter element has good sealing performance after being installed in the filter cartridge.The finished activated carbon filter element is tightly sealed with plastic film to prevent the filter element from being polluted and keep the filter element in a fresh state.
Features:
The activated carbon filter element is a real deep-layer structure with dual functions of filtration and purification. The filter element precision is 10 microns nominal filtration precision.There is no need to add filter aids or filter after carbon treatment.Each activated carbon filter element contains 160 grams of plant-based sulfur-free activated carbon particles.It is used for the purification of electroplating solution,because the filter element will not precipitate fibers or other substances,so that the plating layer will appear pinholes or brittle.
The activated carbon filter mainly depends on the quality of the activated carbon he uses It uses natural high-quality coconut shells as raw materials and is refined by physical activation.It is non-toxic,tasteless,and has developed pores. It does not contain dissolved substances that have adverse effects on water quality.Filtration speed is fast,can effectively absorb residual chlorine and peculiar smell in drinking water,make deep purification,remove industrial waste water,COD,pigment,ozone and other harmful substances in sewage,river water quality and electronic industry, pharmaceutical industry,ultra-pure water Preparation and purification of water for food industry.It is also possible to develop and produce activated carbon with special indicators according to the actual requirements of users.
Application:
Activated carbon filter elements are suitable for purification of process water and solutions in semiconductors, electronic devices,printed circuit boards,electroplating industry,food and beverage industry and other sectors.
Applicable to the following industries:
1).Electronics and electric power industry:pure water,gas,electrolytic liquid,printing plate,etc.
2).Chemical industry, petrochemical industry:solvent,paint,magnetic slurry,detergent,liquid wax,etc.
3).Medicine and pharmaceutical industry:hospital water,pharmaceutical injections,Chinese medicine, etc.
4).Food industry:food,beverage,drinking water,wine,etc.
DKFILTER also offers a full range of replacement filter elements:
Parker
3M
Pall
Pentair
Peco
Other types are available on request
